Radio/Stereo




Component Connector End Views

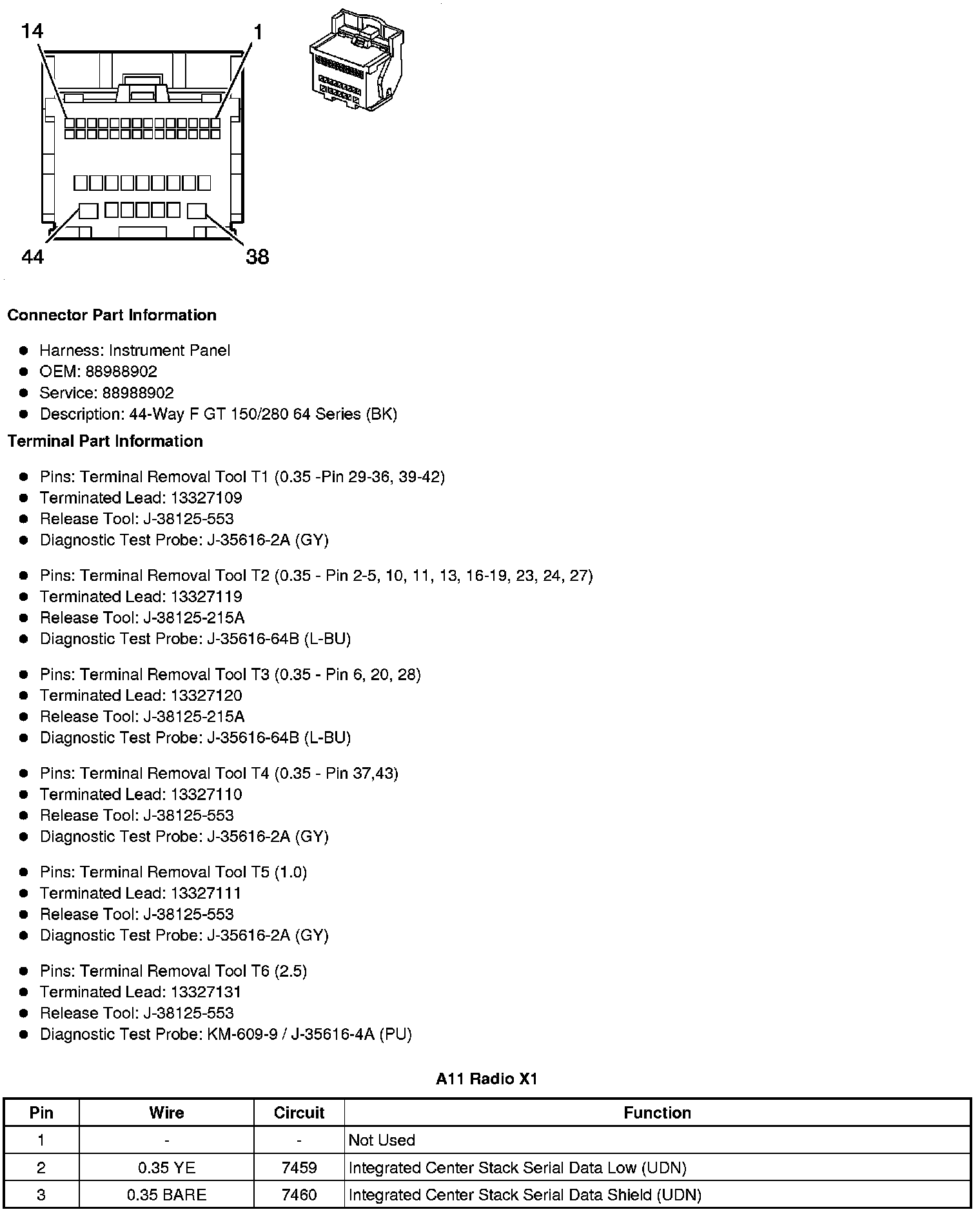

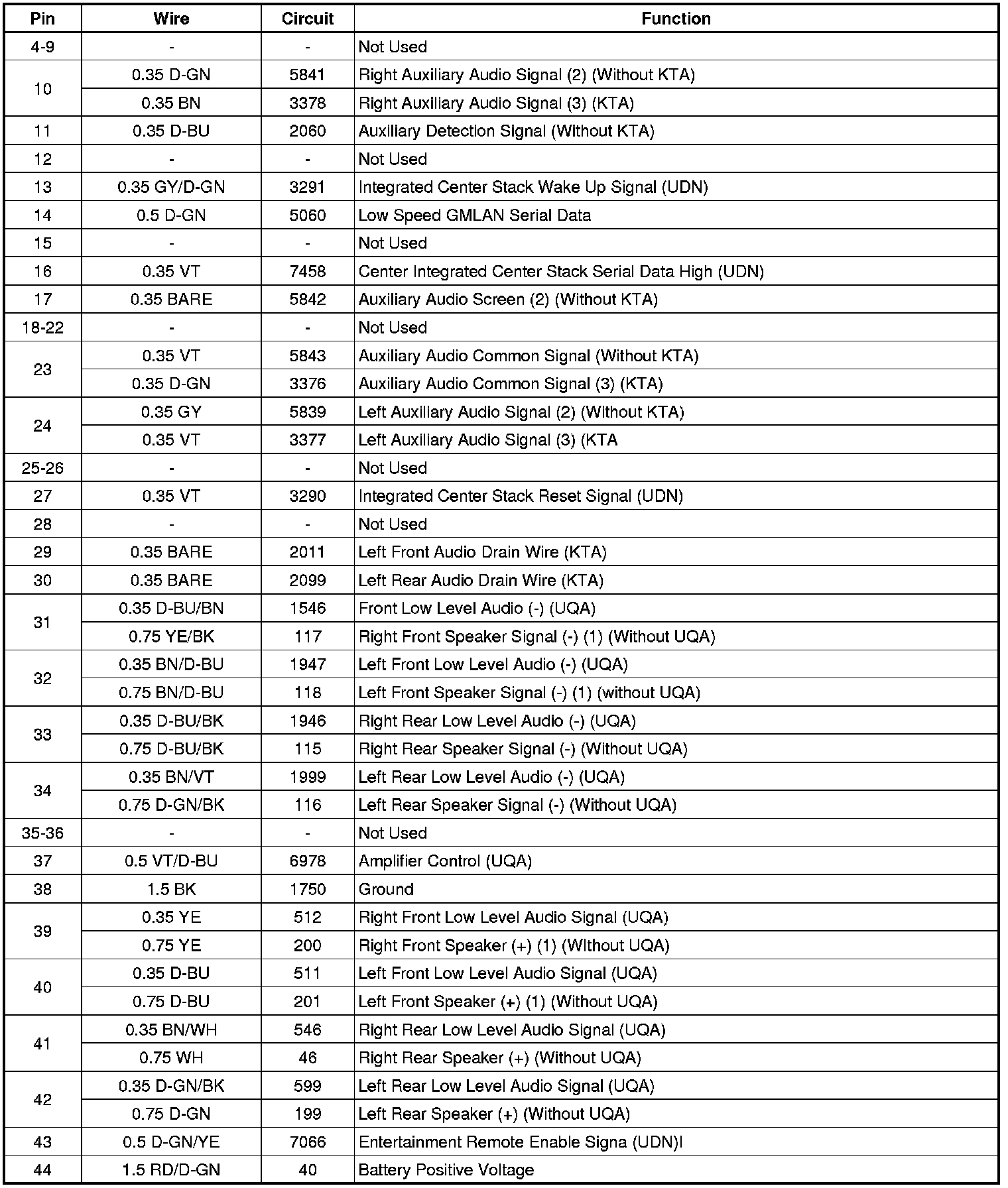

A11 Radio X1

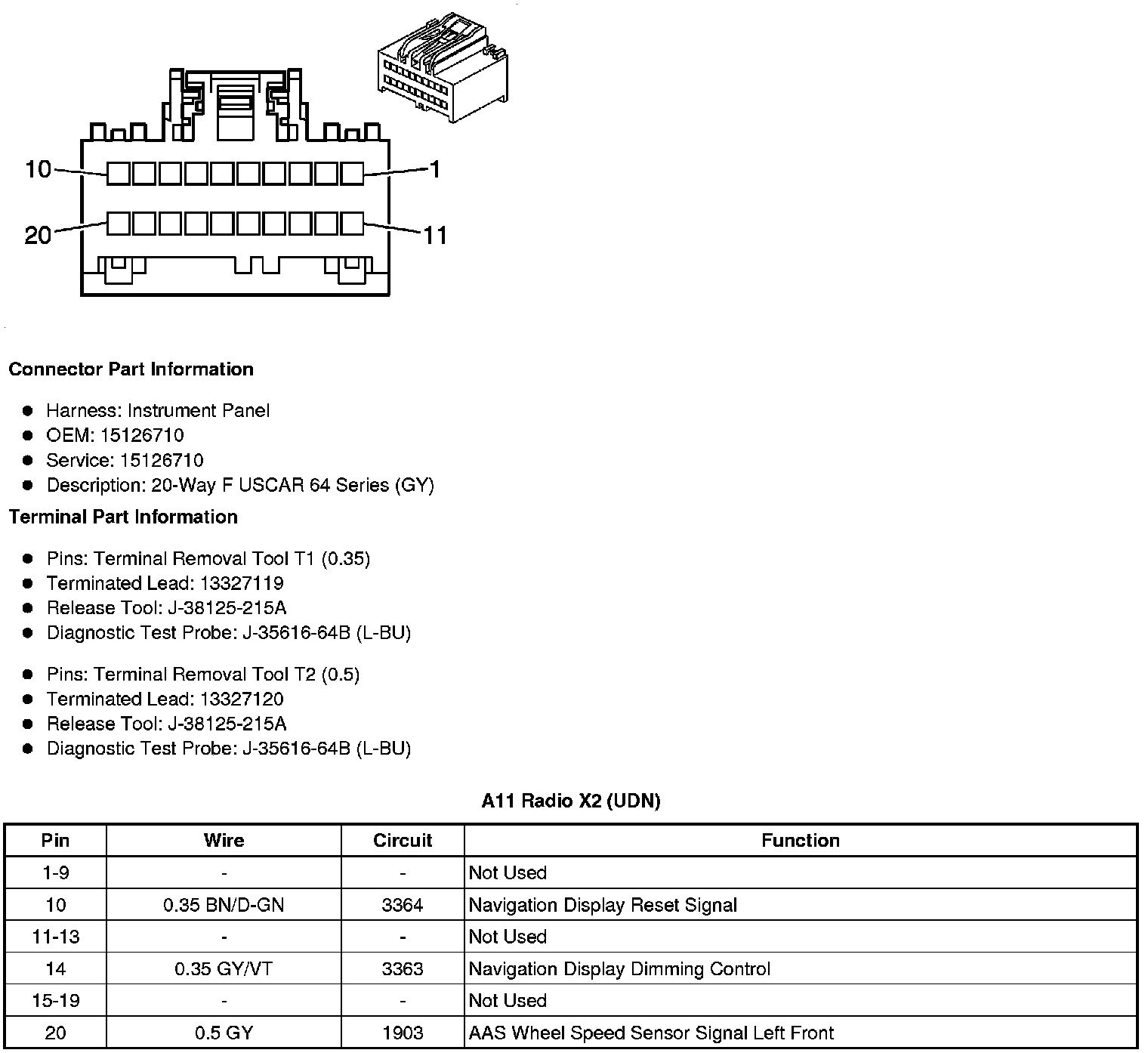

A11 Radio X2 (UDN)

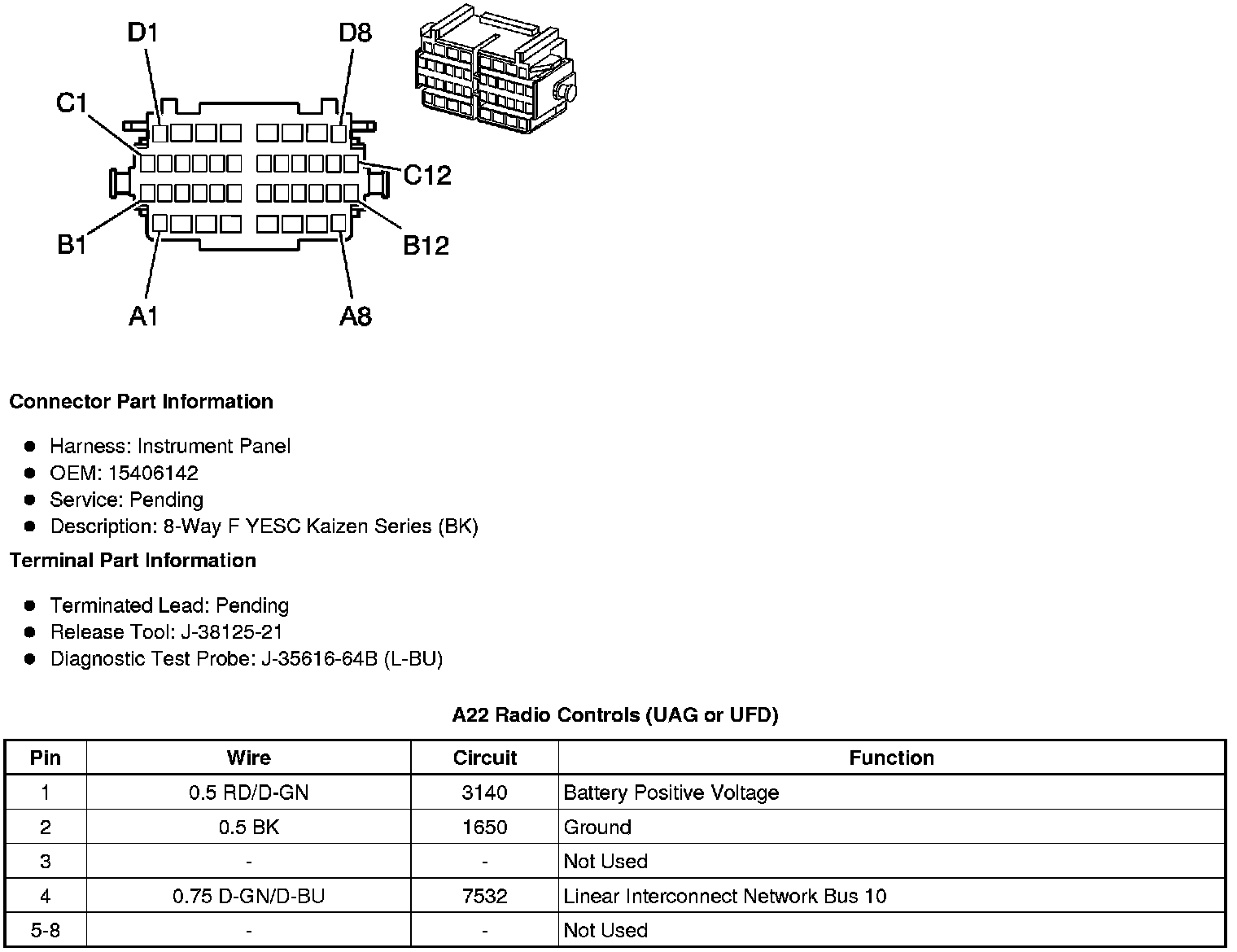

A22 Radio Controls (UAG or UFD)

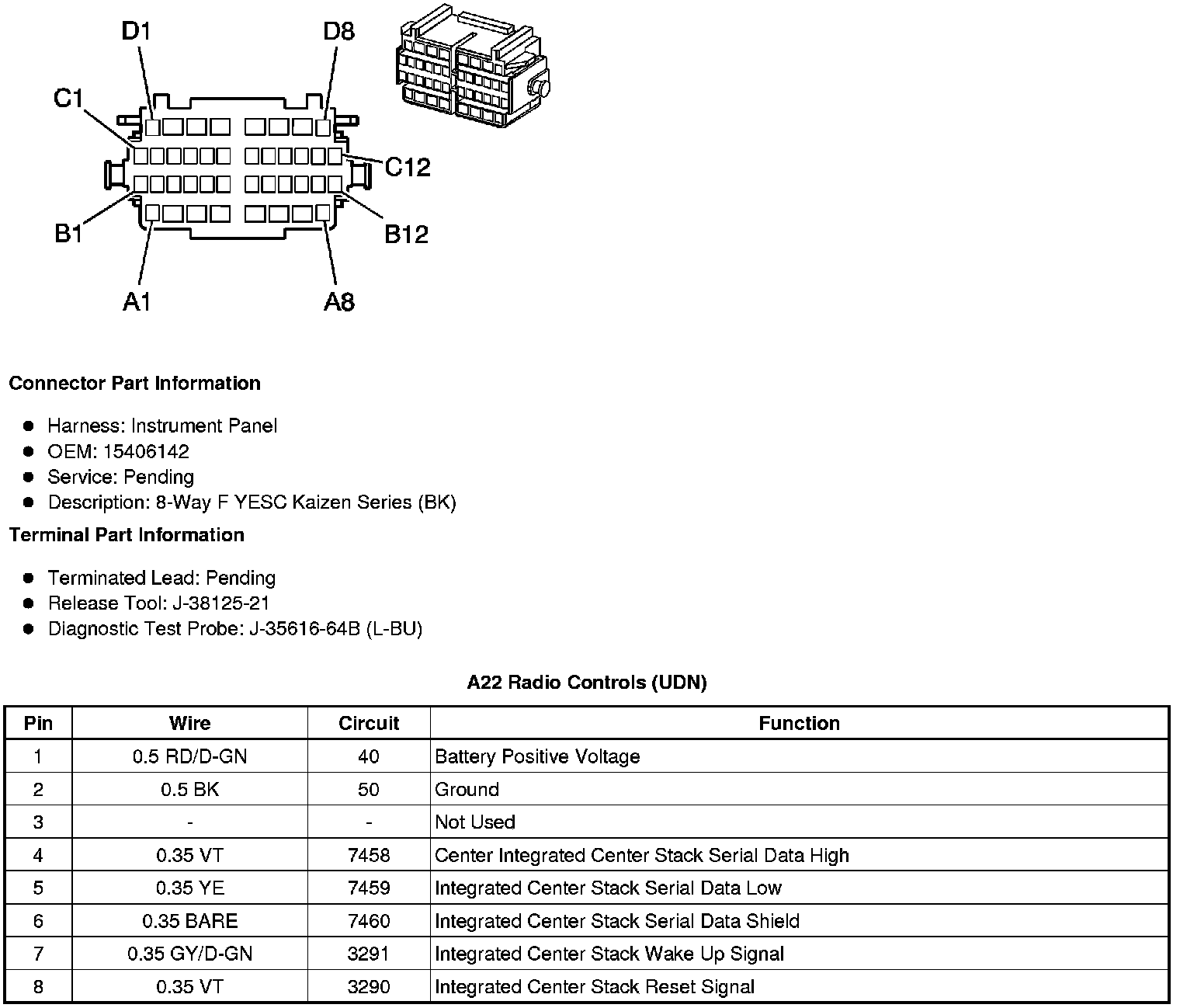

A22 Radio Controls (UDN)
