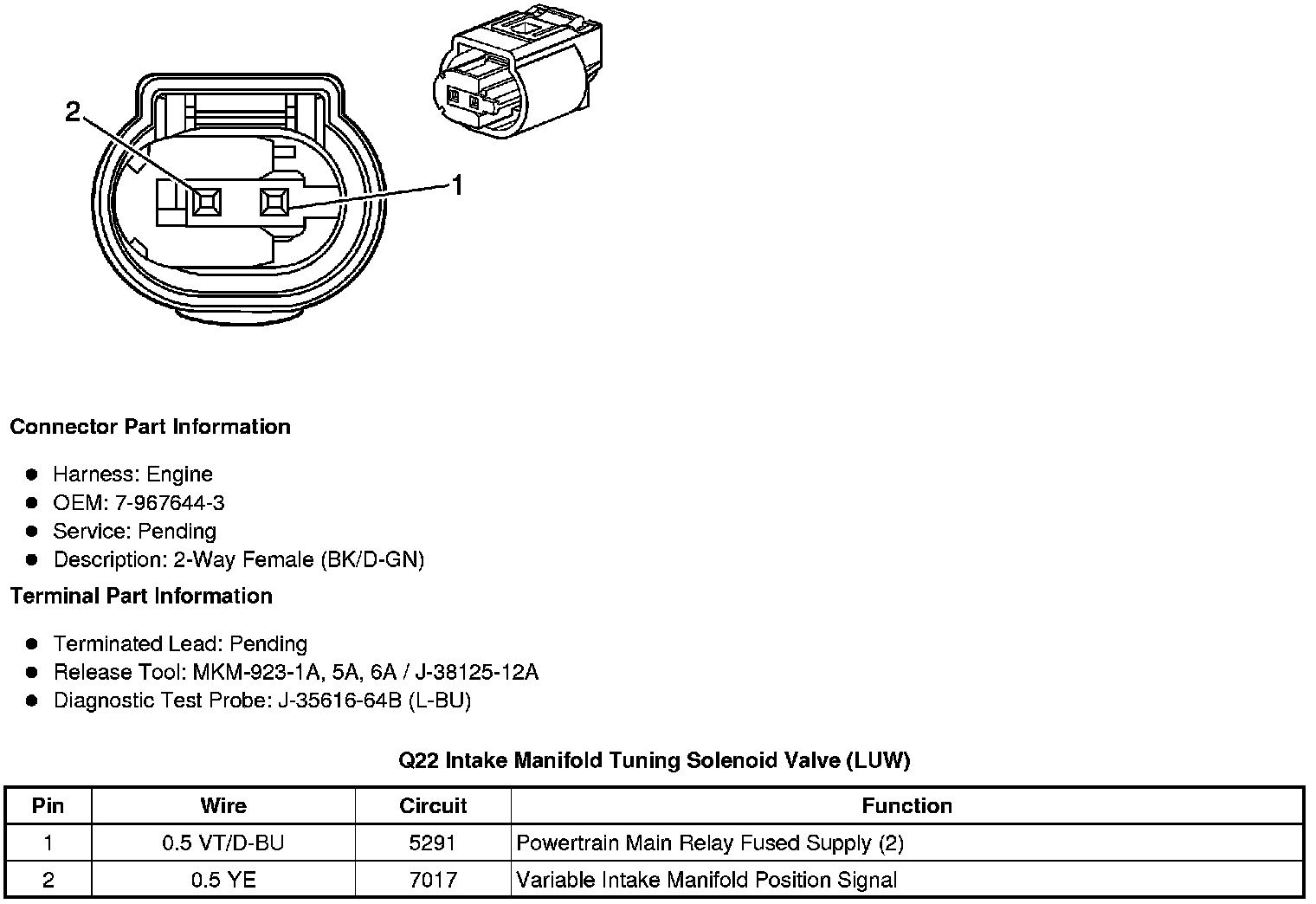

Q22 Intake Manifold Tuning Solenoid Valve




Component Connector End Views

Q22 Intake Manifold Tuning Solenoid Valve (LUW)
