K36 Inflatable Restraint Sensing and Diagnostic Module X1

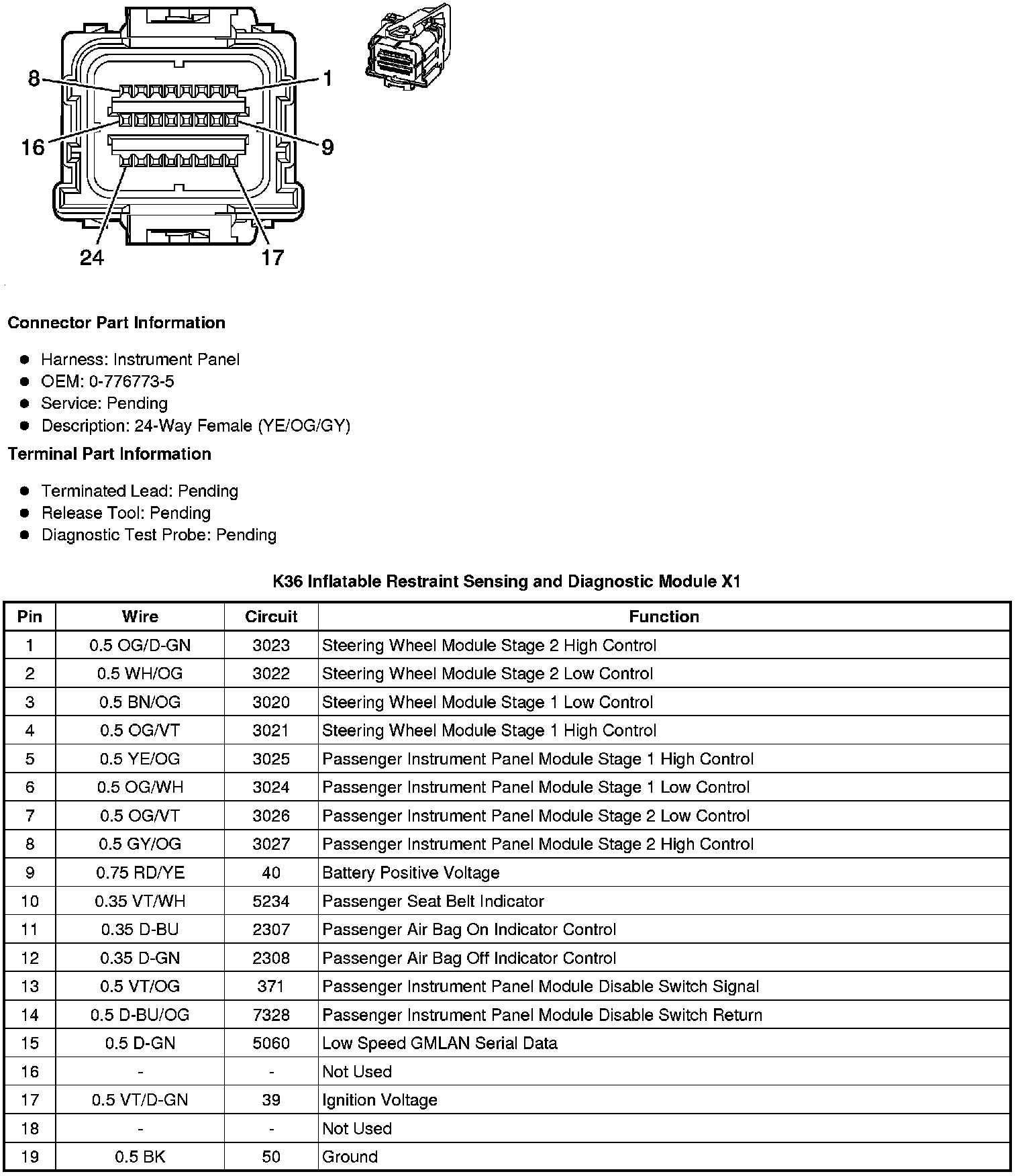

K36 Inflatable Restraint Sensing and Diagnostic Module X1
Component Connector End Views
K36 Inflatable Restraint Sensing and Diagnostic Module X1
