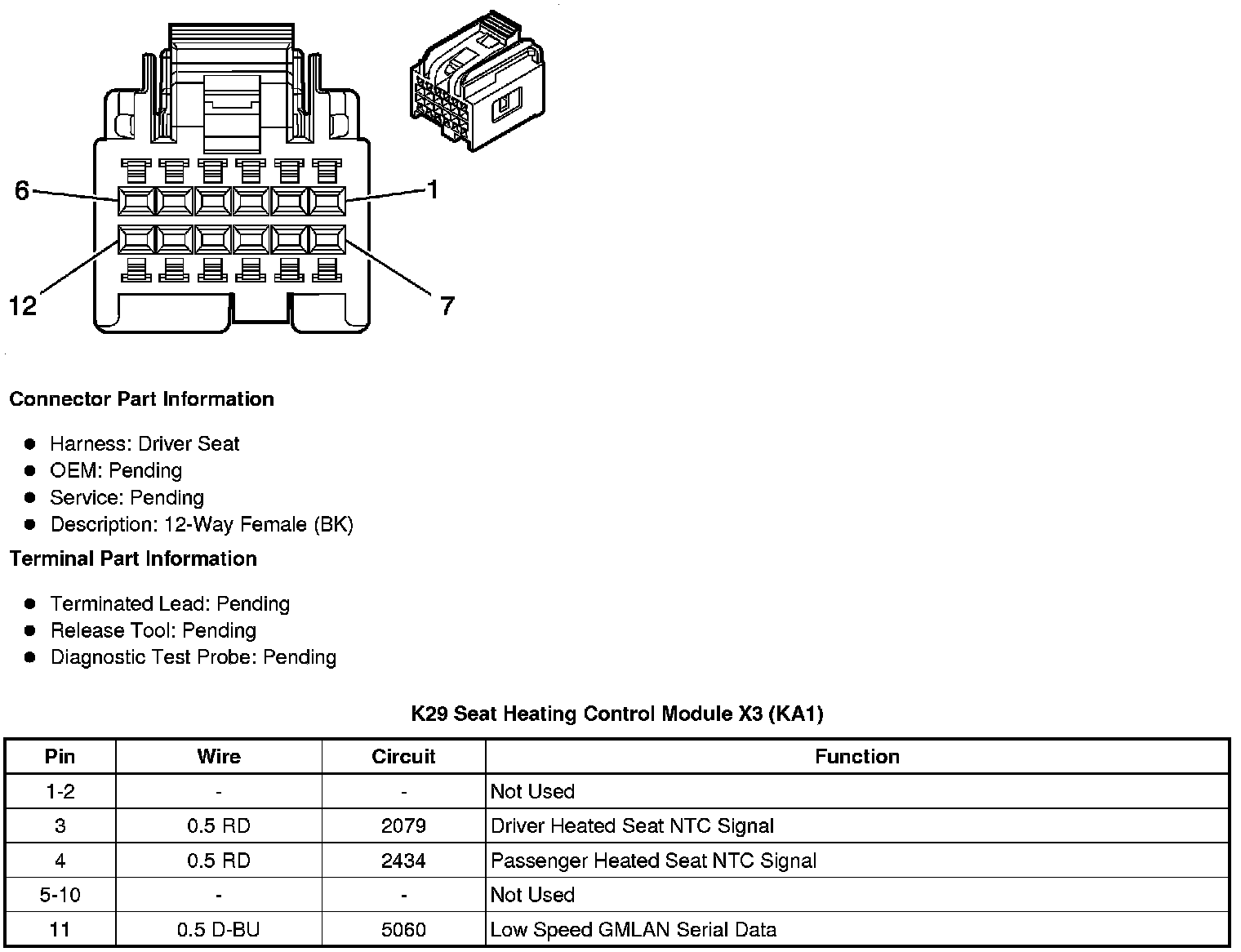

K29 Seat Heating Control Module X3 (KA1)
K29 Seat Heating Control Module X3 (KA1)
Component Connector End Views
K29 Seat Heating Control Module X3 (KA1)
