Parking Brake Lever Replacement

Parking Brake Lever Replacement
Warning: Refer to Brake Dust Warning (Brake Dust Warning).


Removal Procedure

1. Remove the front floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).

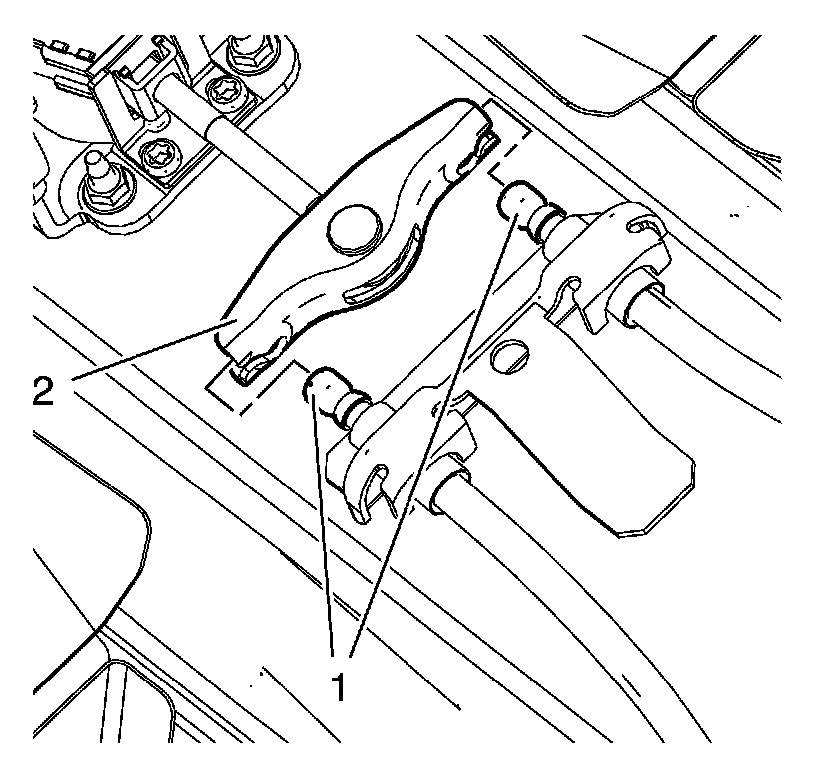

2. Unhook the parking brake cable (1) from the parking brake lever (2).
3. Remove the parking brake indicator switch. Refer to Parking Brake Indicator Switch Replacement (Service and Repair).




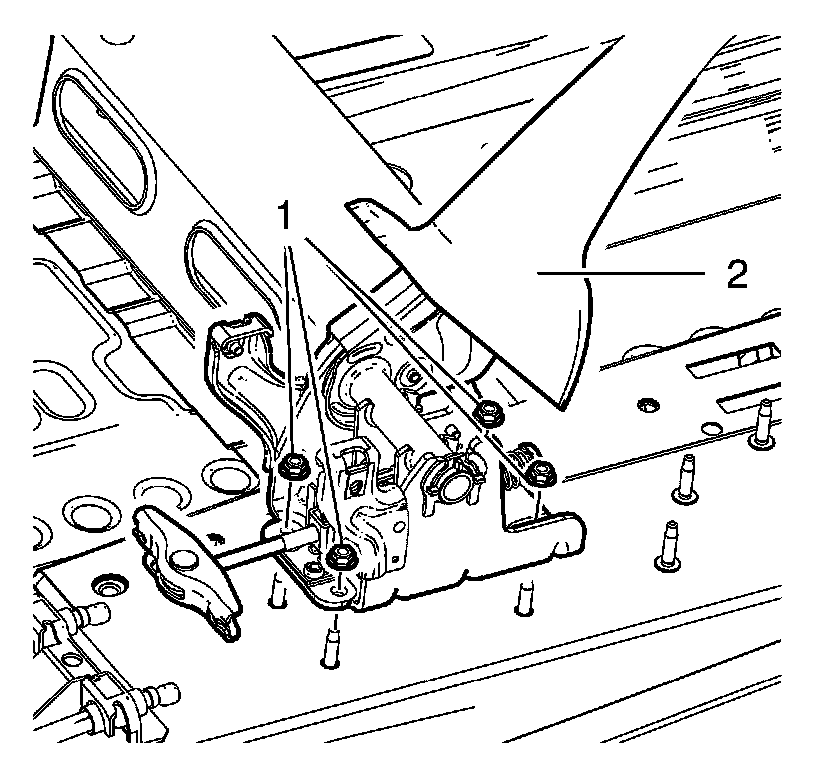

4. Remove the parking brake lever nut (1).
5. Remove the parking brake lever (2).

Installation Procedure




1. Install the parking brake lever (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the parking brake lever nut (1). Tighten the nut to 10 Nm (89 lb in).
3. Install the parking brake indicator switch. Refer to Parking Brake Indicator Switch Replacement (Service and Repair).




4. Hook in the parking brake cable (1) to the parking brake lever (2).
5. Remove the transit support (1).
6. Install the front floor console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
