Parking Assist Distance Sensor: Locations




Luggage Compartment/Rear of Vehicle Component Views

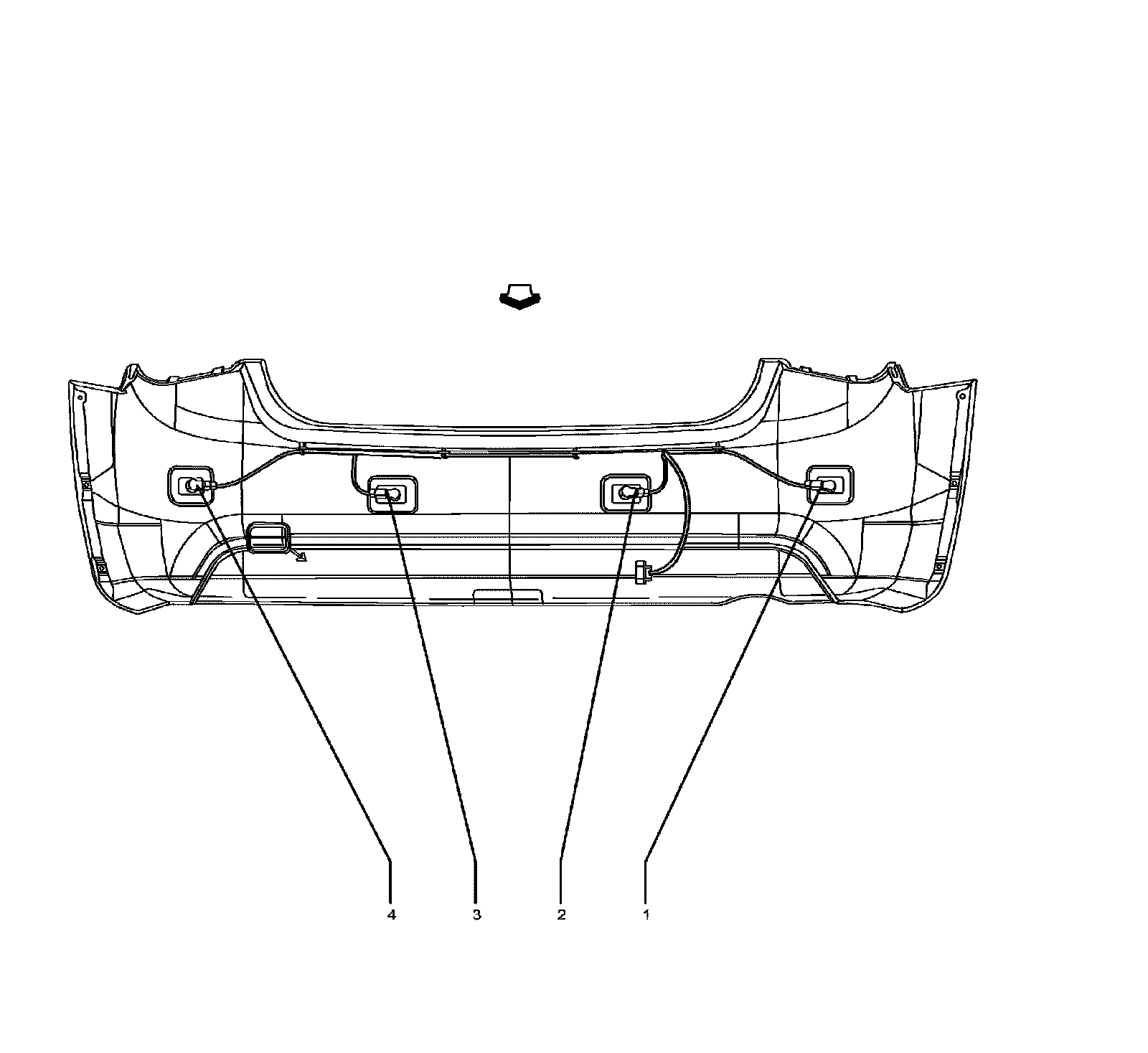

Rear of the Vehicle Components




1 - B78G Rear Object Sensor - Left Outer
2 - B78E Rear Object Sensor - Left Middle
3 - B78F Rear Object Sensor - Right Middle
4 - B78H Rear Object Sensor - Right Outer
