Torque Converter Fluid Seal Replacement

WARNING: This page is about a different variant/trim than selected.

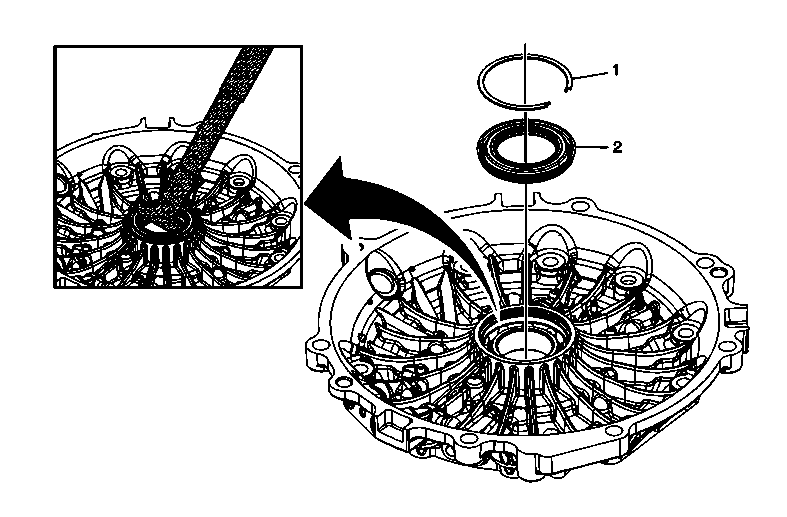

Fig 1: Torque Converter Fluid Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Torque Converter Fluid Seal Retaining Ring
2	Torque Converter Fluid Seal Assembly. Tip: The seal can be installed by hand. Special Tool: J 45000: Seal Remover For equivalent regional tools, refer to Special Tools .
