Fluid Pump Cover Cleaning and Inspection
WARNING: This page is about a different variant/trim than selected.

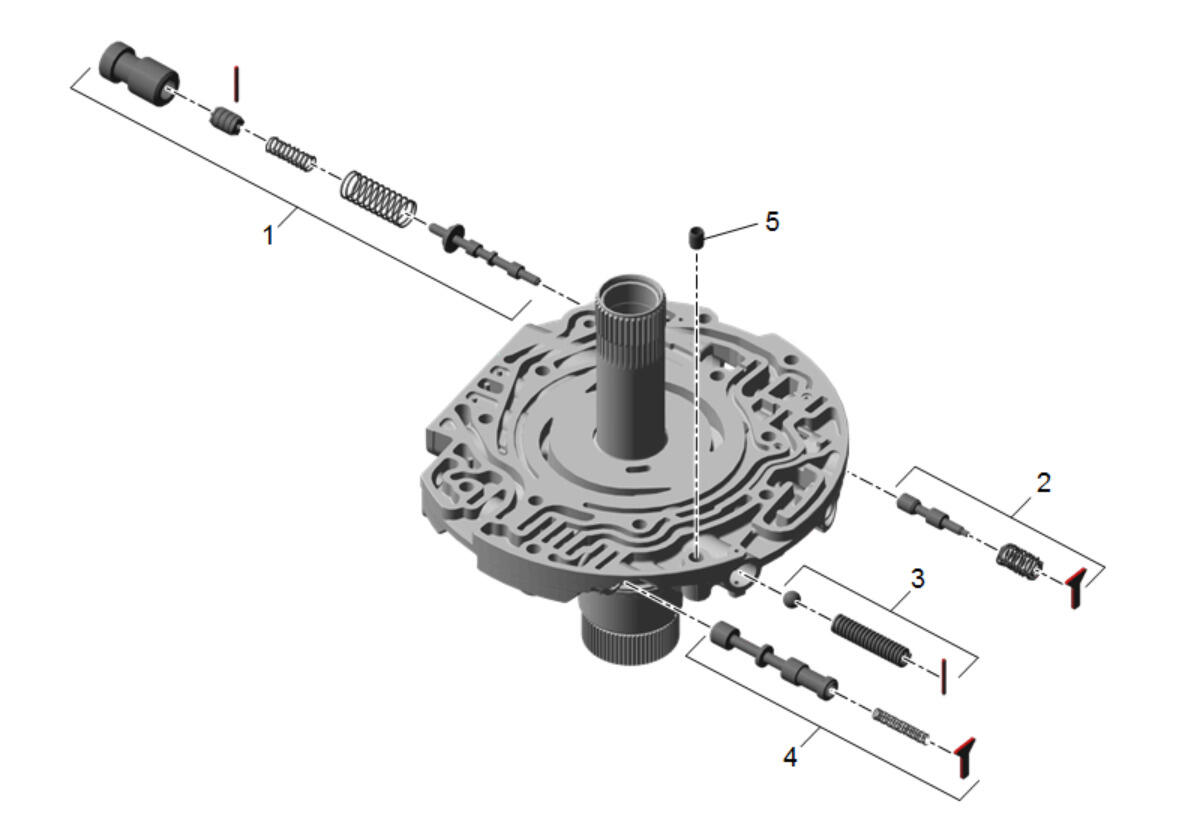

| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result. Preliminary Procedure: Clean and inspect all components and machined surfaces. |
|
| 1 | Pressure Regulator Valve Train |
| 2 | Converter Feed Limit Valve Train |
| 3 | Pressure Relief Ball Valve and Spring |
| 4 | TCC Control Valve and Spring |
| 5 | A/Trans Fluid Pump Locator Pin |
