1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Ring Installation (6L80/90)
WARNING: This page is about a different variant/trim than selected.

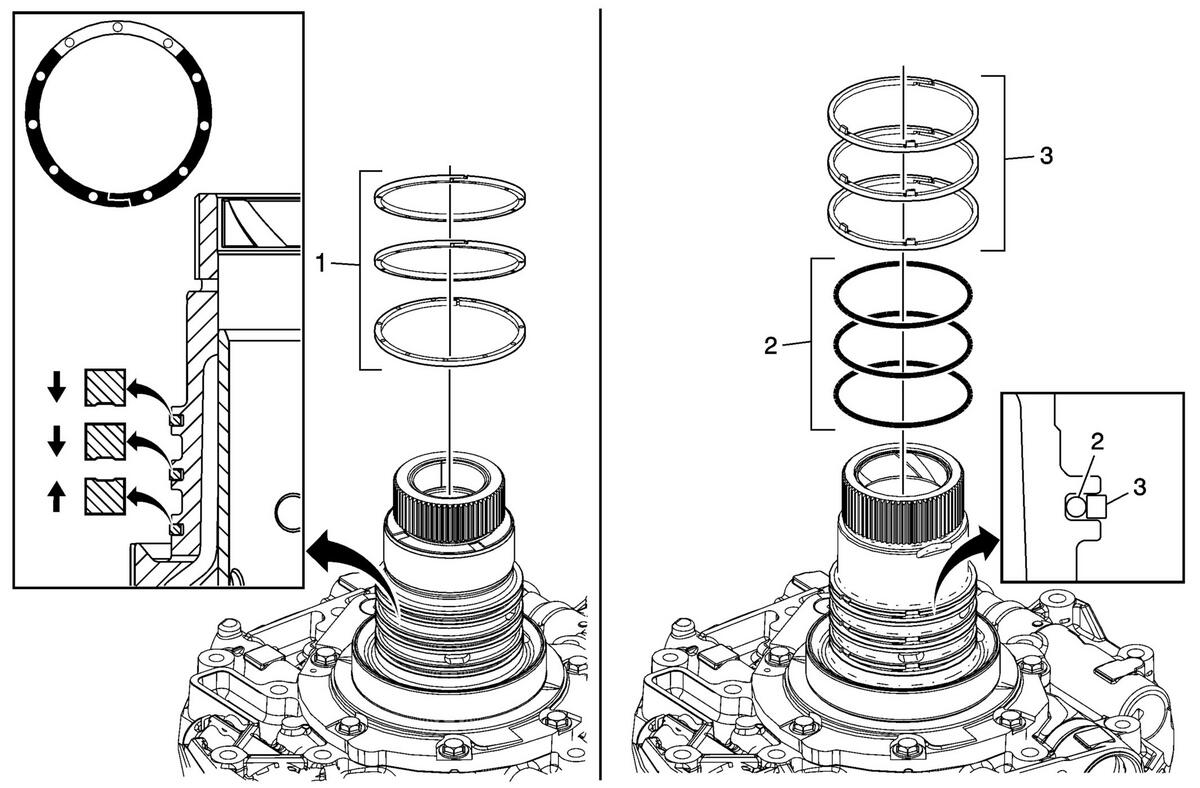

| Callout | Component Name |
|---|---|
|
CAUTION:
Do not use old seal rings. Install NEW seal rings. Reusing old seal rings may cause internal transmission leaks and transmission damage.
NOTE:
Some models have seal rings with installation identification marks that consist of approximately 11 evenly-spaced injection molding gate trim rings and/or a white stripe printed on one side. This installation orientation must be observed to avoid fluid leakage which may cause shift concerns. Models utilizing an inner O-ring seal have accompanying outer seal rings that contain anti-rotation tabs and can only be installed one way.
|
|
| 1 | 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Rings (Qty: 3) Procedure: Install the first seal ring with the identification marks facing up. Then install the remaining two seal rings with the identification marks facing down. |
| 2 | 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Rings (Qty: 3) - Inner O-ring |
| 3 | 1-2-3-4 and 3-5 Reverse Clutch Fluid Seal Rings (Qty: 3) - Outer |
