Leak at the Case Extension
WARNING: This page is about a different variant/trim than selected.
- Output shaft seal assembly - located in the case
- Output shaft seal assembly - located in the case extension

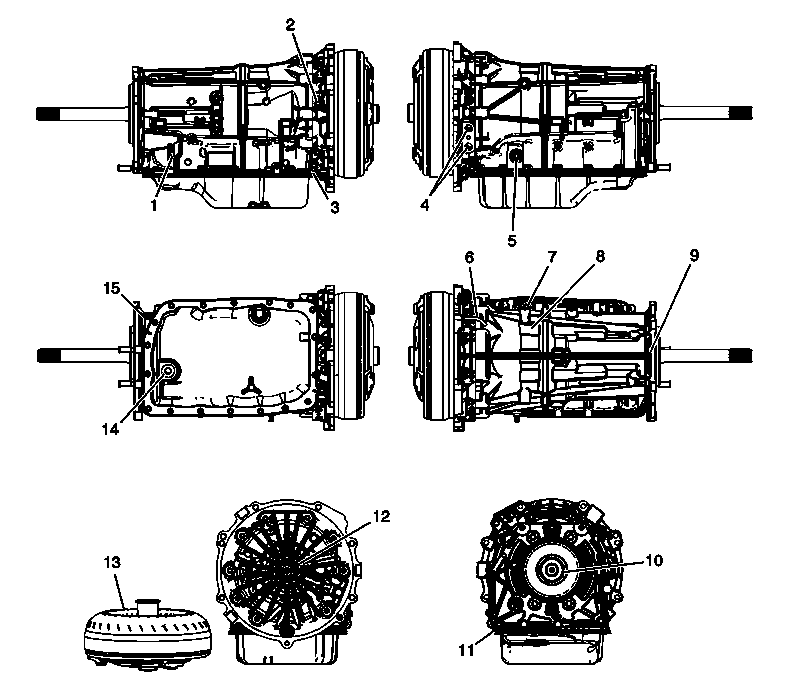

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Electrical Connector Passage Sleeve |
| 2 | Line Pressure Test Hole Plug |
| 3 | Converter Housing to Case Joint |
| 4 | Trans Fluid Cooler Pipe Fitting Seals |
| 5 | Manual Shift Shaft Seal |
| 6 | Automatic Transmission Vent Pipe |
| 7 | Fluid Fill Tube Plug Assembly |
| 8 | Transmission Case Assembly |
| 9 | Output Shaft Seal Assembly - Case |
| 10 | Output Shaft Seal Assembly - Case Extension |
| 11 | A/Trans Fluid Pan Gasket |
| 12 | Torque Converter Fluid Seal Assembly |
| 13 | Torque Converter Assembly |
| 14 | Trans Oil Level Check Plug |
| 15 | Case Extension to Case Joint |
