Section 1 (Automatic Transmission - 6L80-E - Description And Operation)
>>
Description and Operation
>>
Automatic Transmission Hydraulic Diagrams
>>
Park - Engine Running
>>
Park - Engine Running - A/T System Hydraulic Diagram
Park - Engine Running - A/T System Hydraulic Diagram
WARNING:
This page is about a different variant/trim than selected.

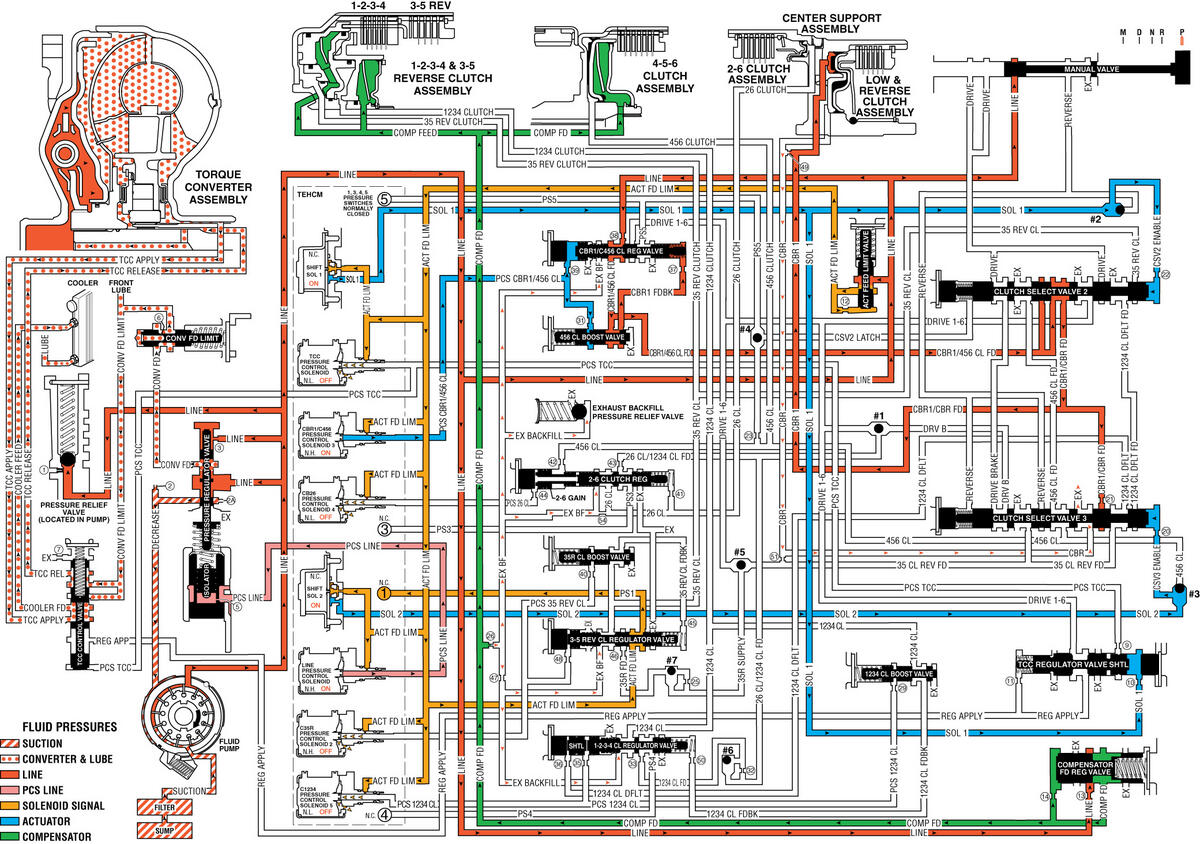

Fig 1: Park - Engine Running
Courtesy of GENERAL MOTORS CORP.
