Section 1 (Automatic Transmission - 6L80-E - Description And Operation)
>>
Description and Operation
>>
Automatic Transmission Hydraulic Diagrams
>>
Drive Range, First Gear
>>
Drive Range, First Gear - A/T System Hydraulic Diagram
Drive Range, First Gear - A/T System Hydraulic Diagram
WARNING:
This page is about a different variant/trim than selected.

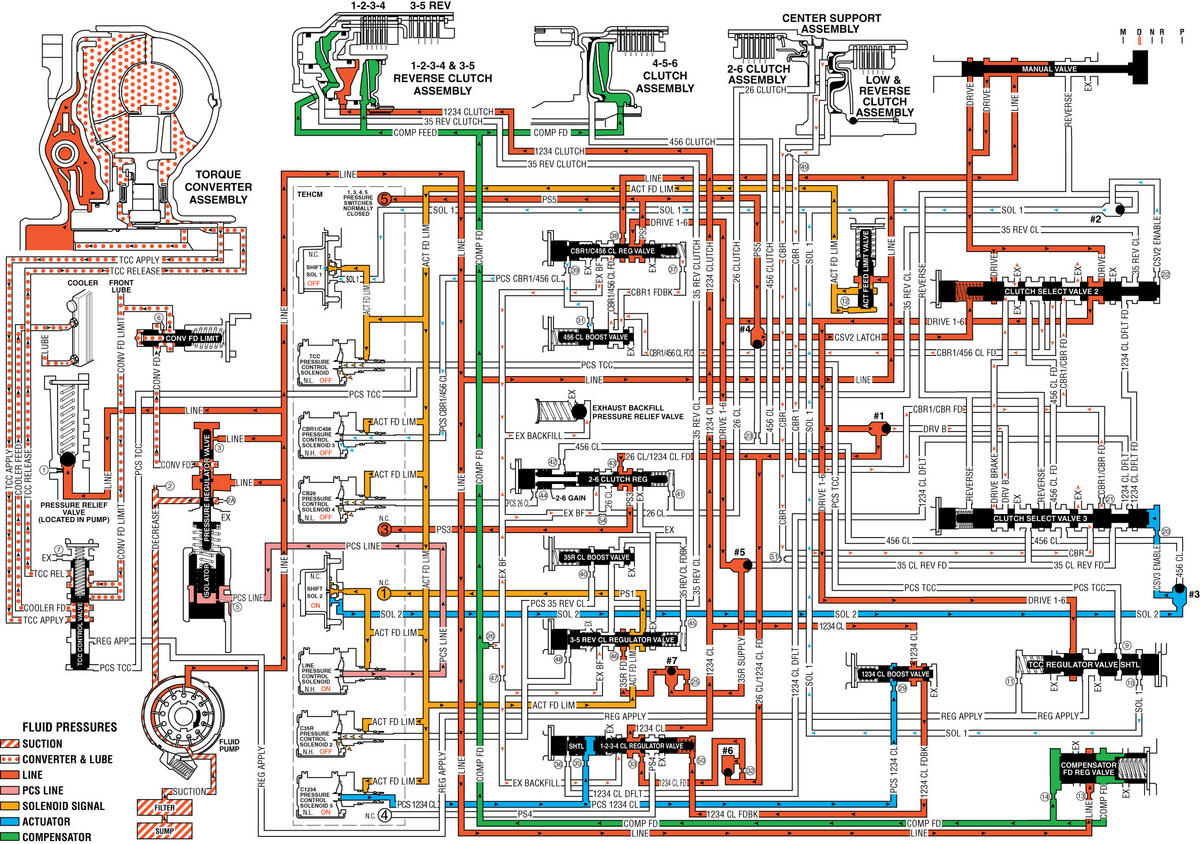

Fig 1: Drive Range, First Gear
Courtesy of GENERAL MOTORS CORP.
