Drive Range, Fifth Gear Default - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

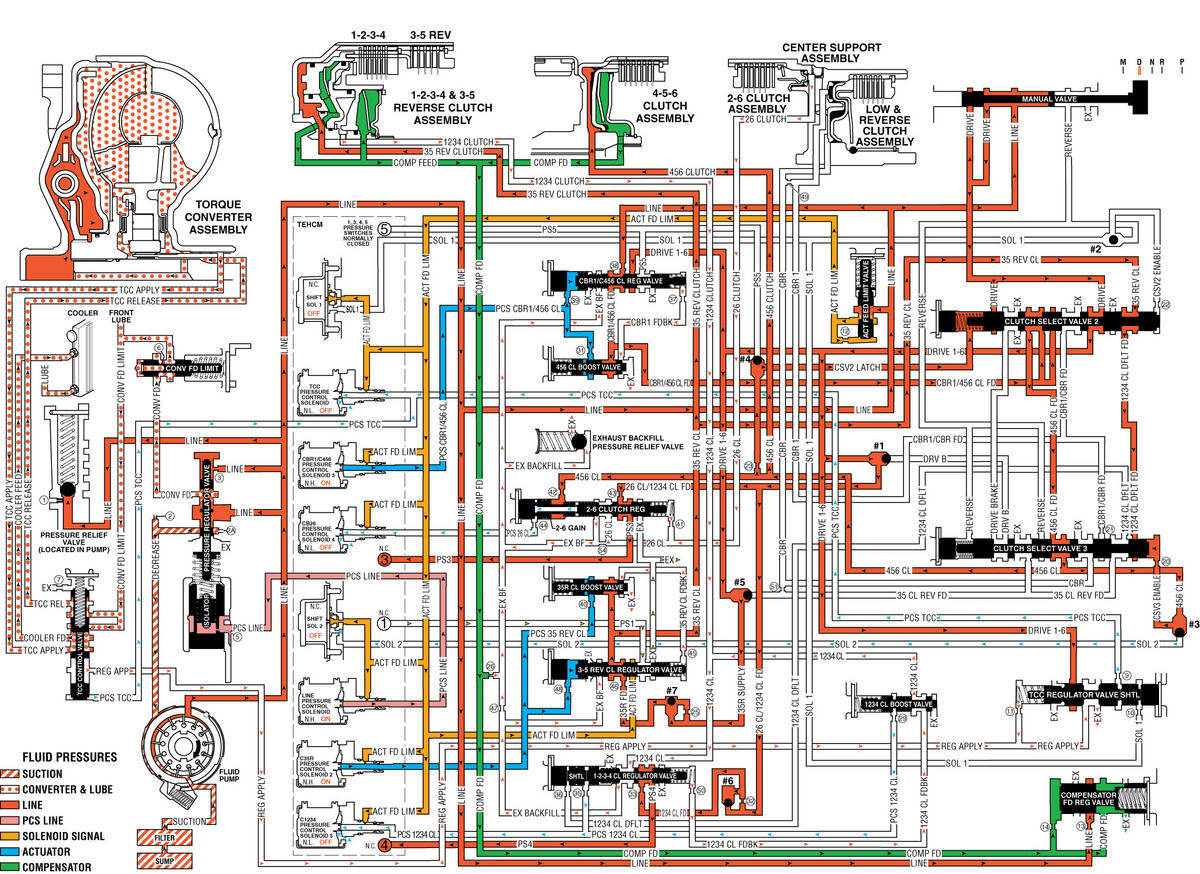

Fig 1: Drive Range, Fifth Gear Default
GM2365927Courtesy of GENERAL MOTORS CORP.
