Water Pump Installation (7.0L)

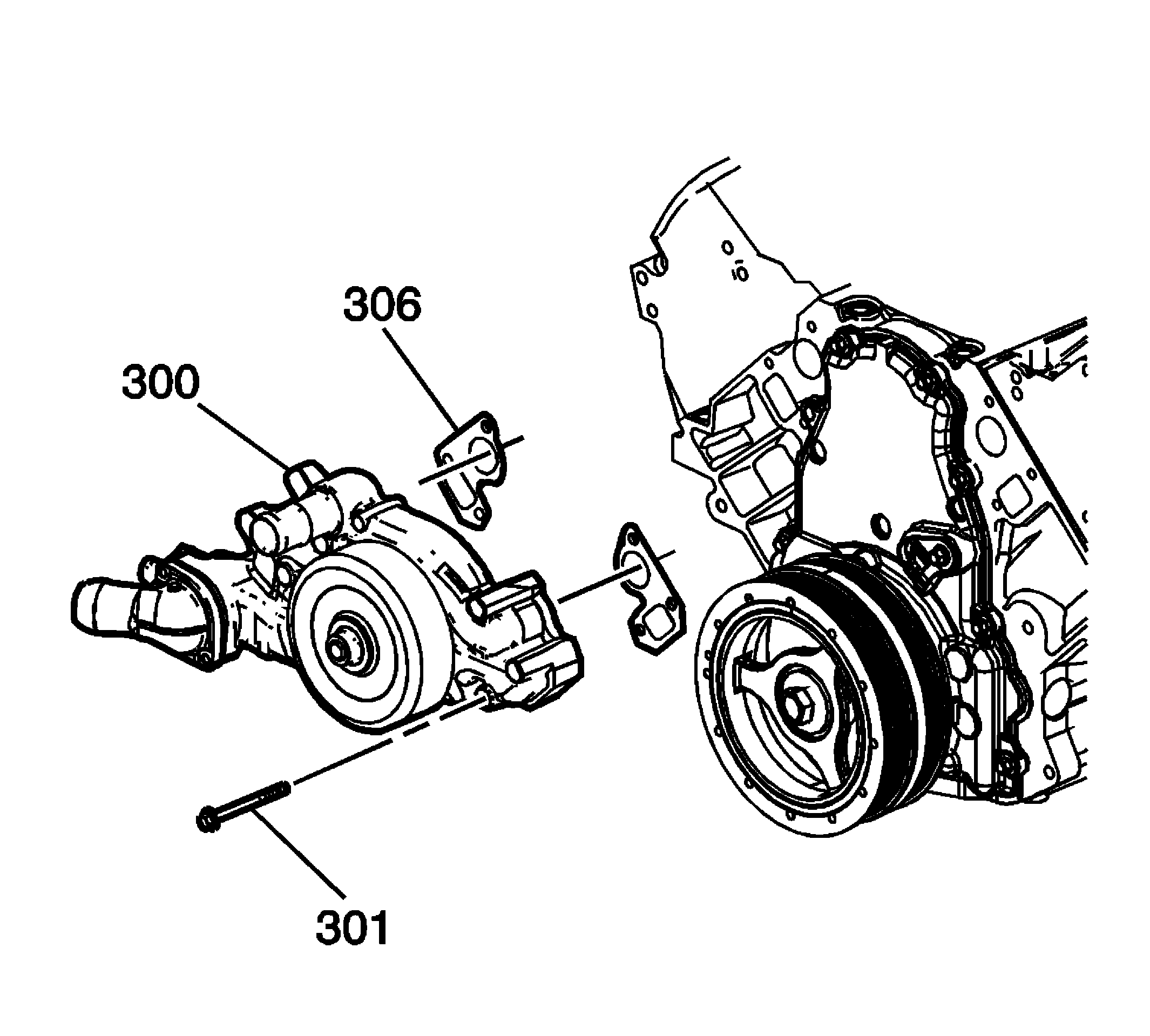

    Fig 1: View Of Water Pump, Gaskets & Bolts
    GM1552531Courtesy of GENERAL MOTORS CORP.
    NOTE: All gasket surfaces are to be free of oil or other foreign material during assembly.
  1. Install the water pump (300) and NEW gaskets (306).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the water pump bolts (301):
    1. Tighten the water pump bolts a first pass to 15 N.m (11 lb ft).
    2. Tighten the water pump bolts a final pass to 30 N.m (22 lb ft).
