Throttle Body Assembly Installation (6.2L LS9)

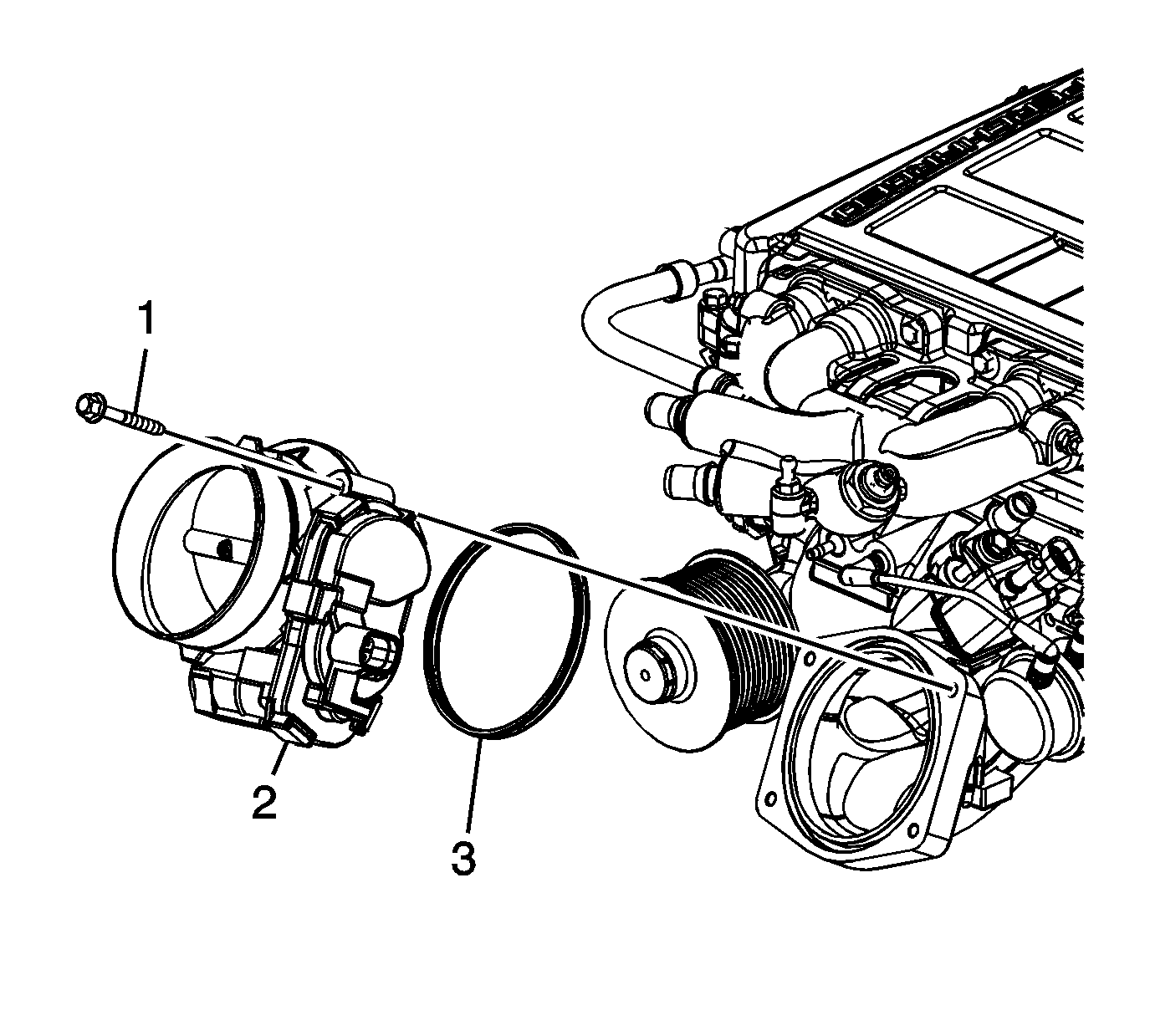

    Fig 1: View Of Throttle Body Components
    GM2054128Courtesy of GENERAL MOTORS CORP.
    NOTE: DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.
  1. Install the throttle body gasket (3) to the supercharger.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the throttle body (2) and bolts (1). Tighten the throttle body bolts to 10 N.m (89 lb in).
