Fuel Rail and Injectors Installation (6.2L LS9)

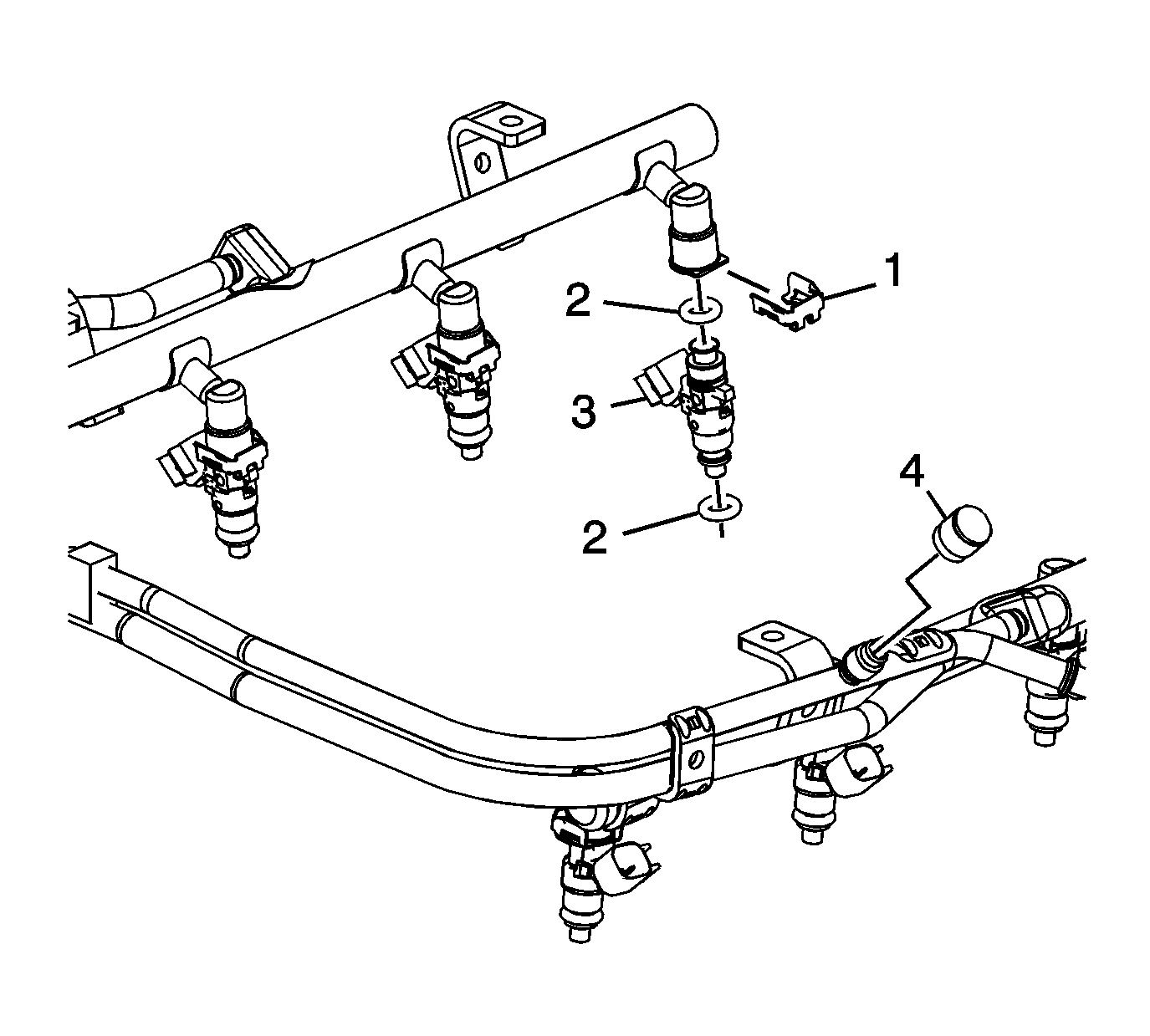

    Fig 1: View Of Fuel Rail & Injectors
    GM2054132Courtesy of GENERAL MOTORS CORP.
    NOTE: DO NOT use the fuel injector O-ring seals again. Install NEW fuel injector O-ring seals during assembly.
  1. Lubricate the NEW fuel injector O-ring seals (2) with clean engine oil.
  2. Install the O-ring seals to the fuel injectors.
  3. Install the fuel injectors (3) and retainers (1).
    4. Fig 2: View Of Fuel Rail & Injectors Wiring Harnesses
    GM2054131Courtesy of GENERAL MOTORS CORP.
  4. Install the wiring harnesses (2) and (3) onto the fuel rail (1).

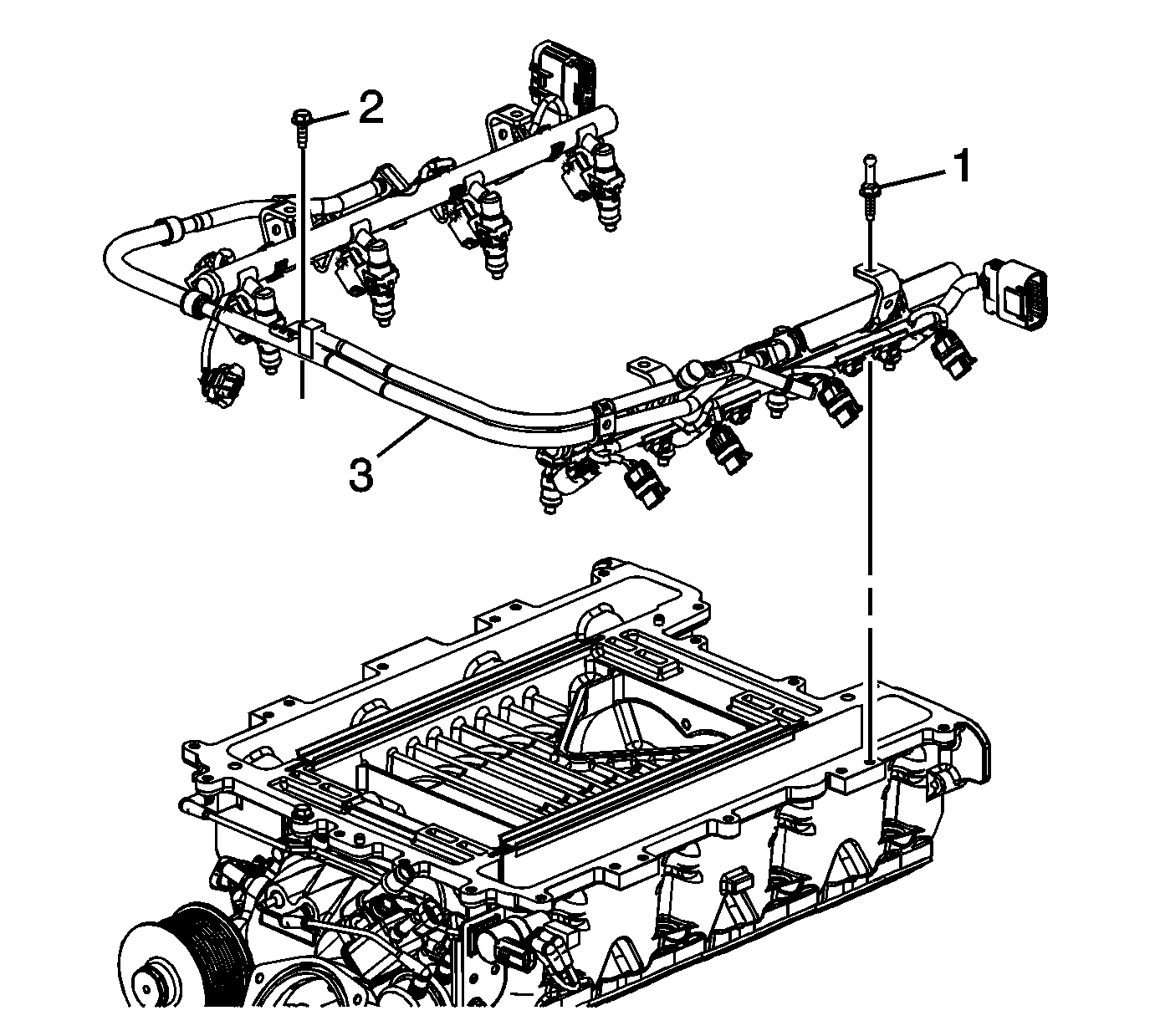

    5. Fig 3: View Of Fuel Rail Assembly
    GM2054130Courtesy of GENERAL MOTORS CORP.
  5. Install the fuel rail assembly (3). Install the left side first, then install the right side with flex hose until all injectors have entered their bores.
  6. Apply a 5 mm (0.2 in) band of threadlock GM P/N 12345382 (Canadian P/N 10953489), or equivalent, to the threads of the fuel rail studs and bolt. Refer to Adhesives, Fluids, Lubricants, and Sealers .
    7. CAUTION: Refer to Fastener Caution .
  7. Install the fuel rail studs (1) and bolt (2) and tighten to 10 N.m (89 lb in).
    8. Fig 4: View Of Insulator Seals
    GM2054331Courtesy of GENERAL MOTORS CORP.
  8. Install NEW insulator seals (1).

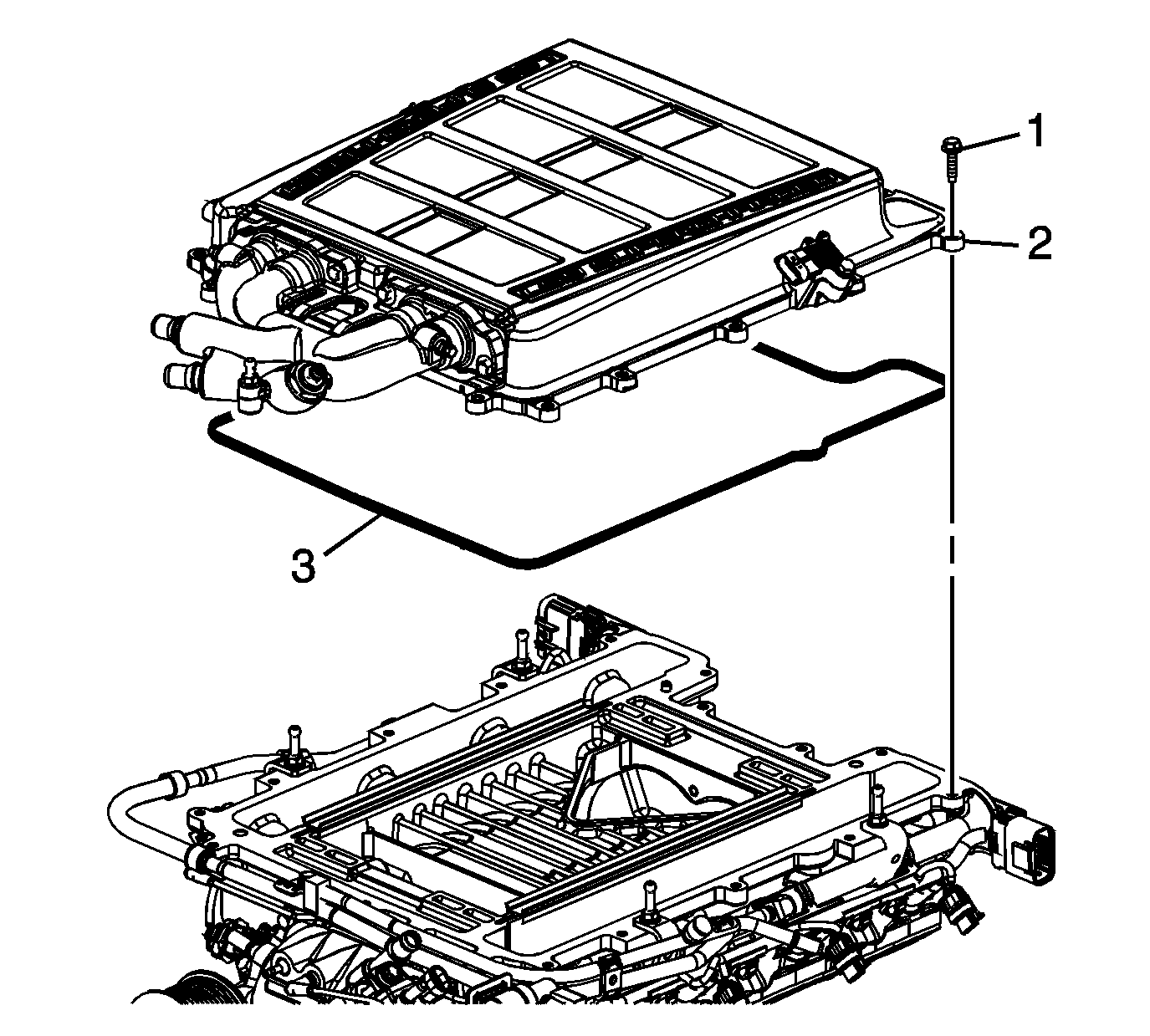

    9. Fig 5: Identifying Supercharger, Cover & Cover Seal
    GM2054129Courtesy of GENERAL MOTORS CORP.
  9. Install a NEW supercharger cover seal (3).
  10. Install the supercharger cover bolts (1) and the supercharger cover (2).

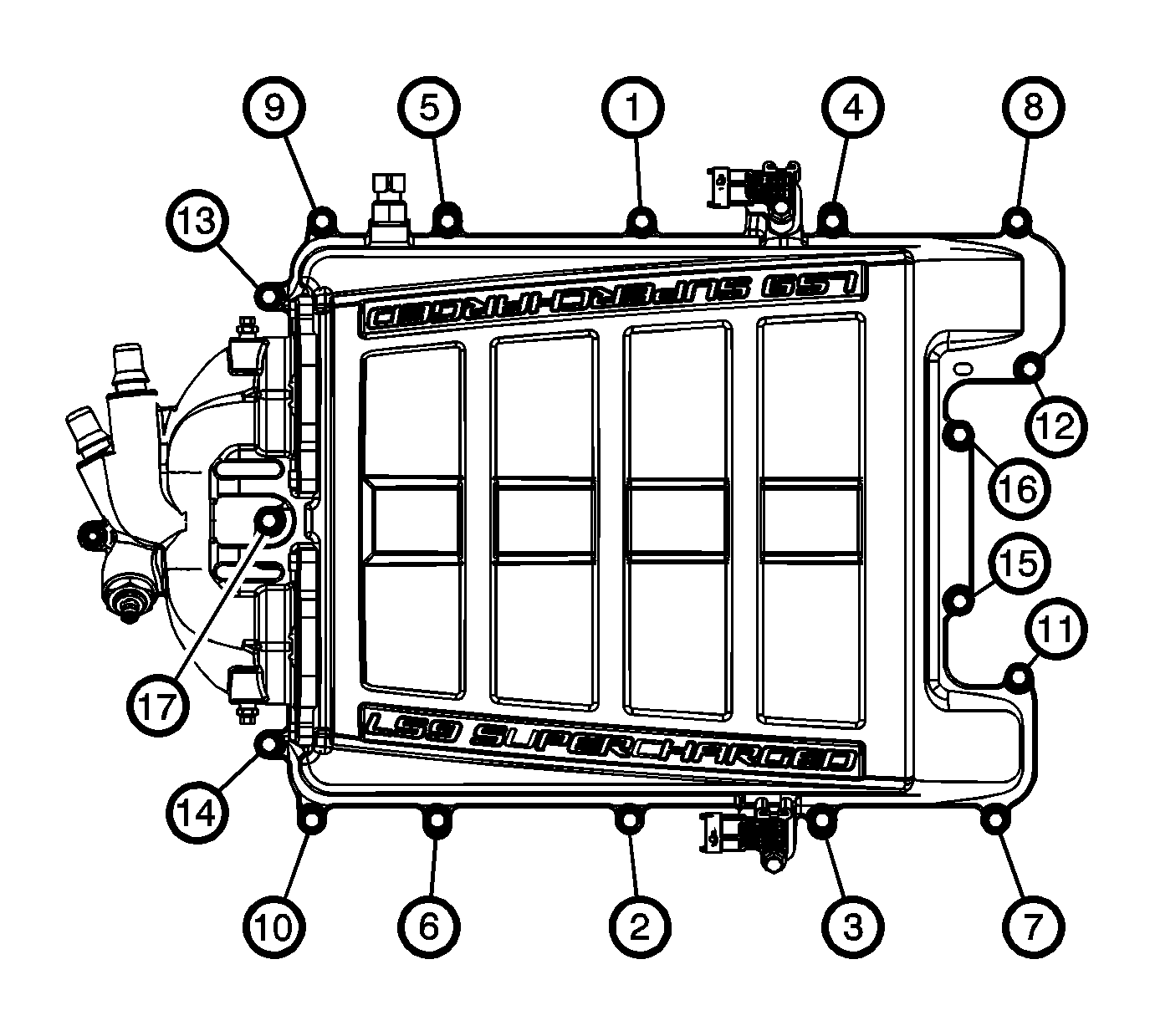

    11. Fig 6: Identifying Supercharger Cover Bolt Tightening Sequence
    GM2085707Courtesy of GENERAL MOTORS CORP.
  11. Install the cover bolts (1).
    1. Tighten the bolts a first pass in sequence to 5 N.m (44 lb ft).
    2. Tighten the bolts a final pass in sequence to 10 N.m (89 lb ft).
