Engine Oil Cooler Installation

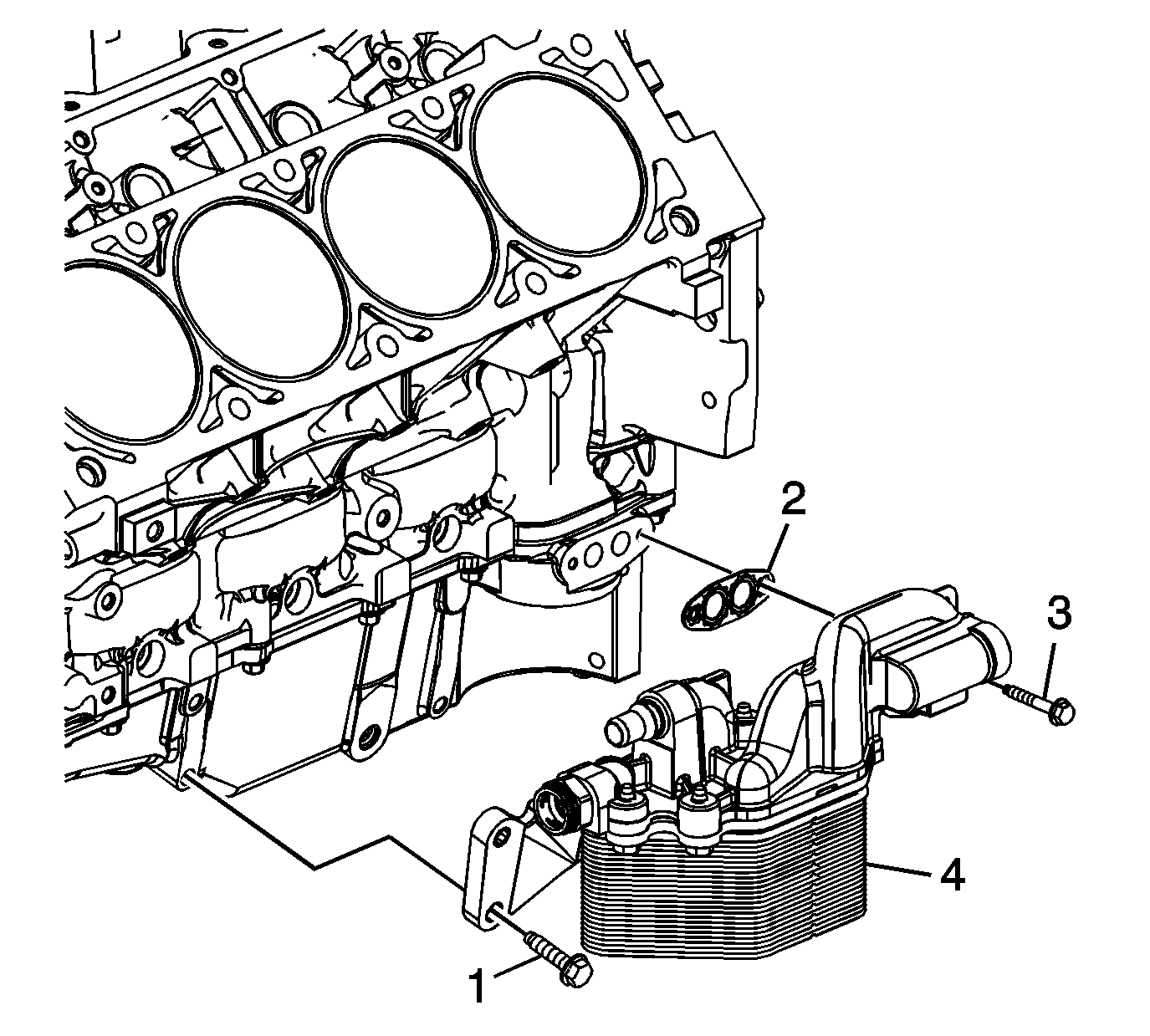

    Fig 1: Identifying Oil Cooler Components
    GM2054178Courtesy of GENERAL MOTORS CORP.
  1. Install the oil cooler gasket (2).
  2. Install the oil cooler (4).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil cooler M8 (1) and M6 (3) bolts.
  4. Tighten the M6 bolts to 10 N.m (89 lb in).
  5. Tighten the M8 bolts to 25 N.m (18 lb ft).
    6. Fig 2: Identifying Engine Oil Cooler Hose/Pipe
    GM2142312Courtesy of GENERAL MOTORS CORP.
  6. Install the engine oil cooler coolant fitting (2) to the block, as required and tighten to 50 N.m (37 lb ft).
  7. Install the hose/pipe (4) to the fitting (2) and cooler (3).
  8. Install the bolt and tighten to 25 N.m (18 lb ft).
