Timing Chain and Sprocket Installation (6.2L LS9)

Special Tools

• EN46330:  Timing Belt Tensioner Retaining Pin
• EN-47812:  Installer Bolt
• J 41665:  Crankshaft Balancer and Sprocket Installer

  For equivalent regional tools, refer to Special Tools

Fig 1: View Of Crankshaft Key & Keyway
Courtesy of GENERAL MOTORS CORP.
1. Install the key into the crankshaft keyway, if previously removed.
Fig 2: Crankshaft Key
Courtesy of GENERAL MOTORS CORP.
2. Tap the key (122) into the keyway until both ends of the key bottom onto the crankshaft.

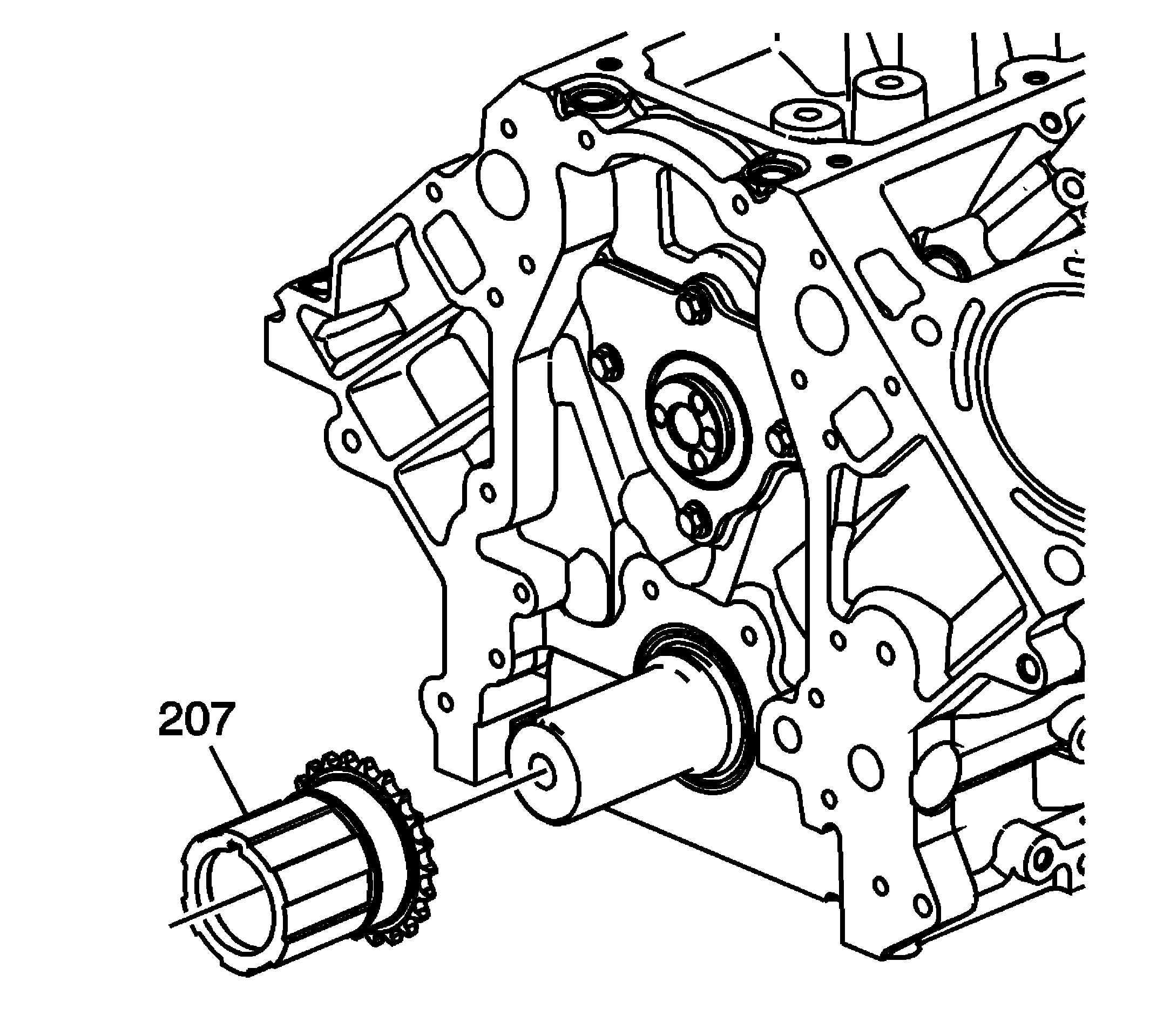

Fig 3: View Of Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
3. Install the crankshaft sprocket (207) onto the front of the crankshaft. Align the crankshaft key with the crankshaft sprocket keyway.

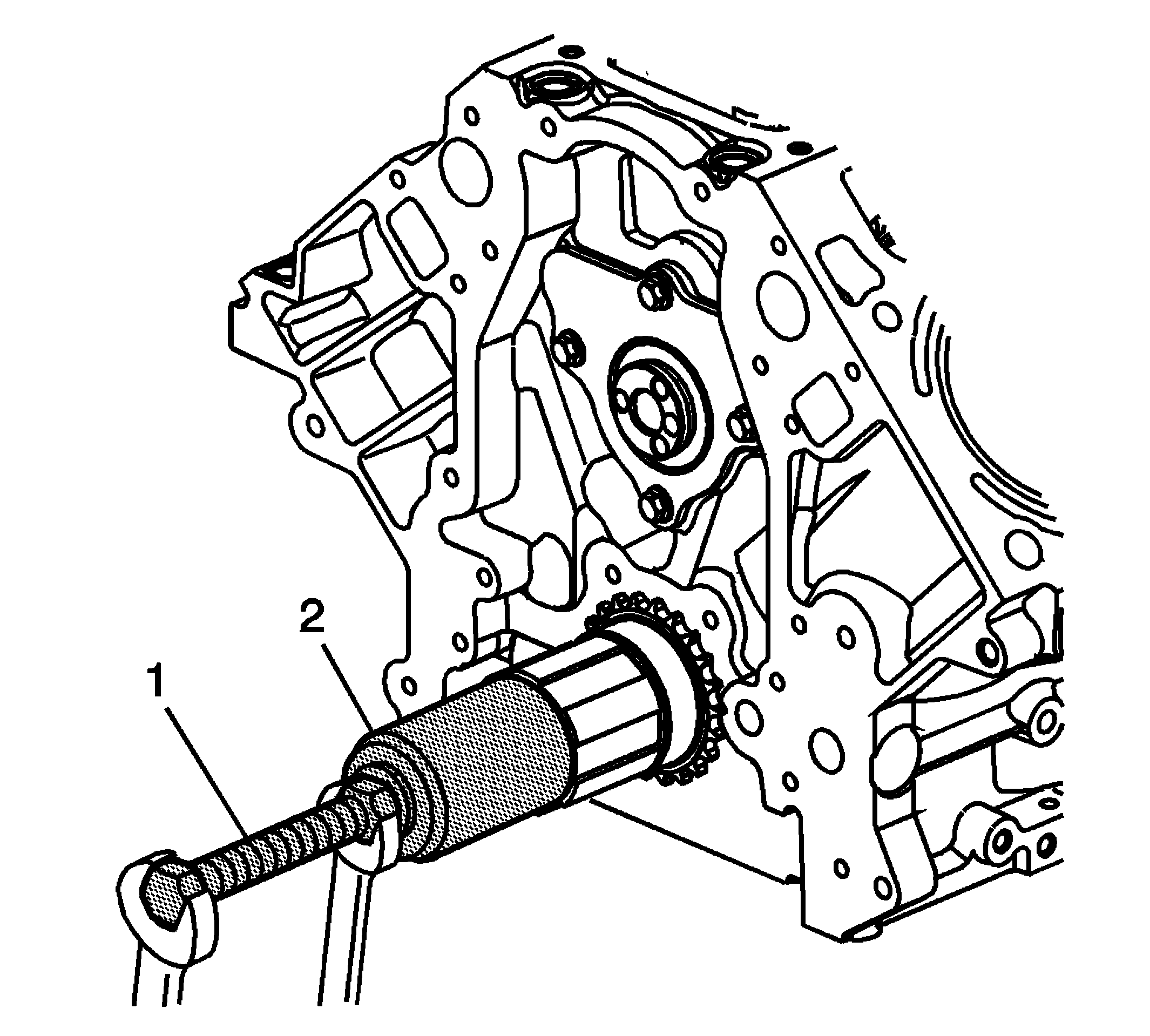

Fig 4: Installer And Bolt
Courtesy of GENERAL MOTORS CORP.
4. Use the EN-47812:  bolt (1) and the J 41665:  installer (2) in order to install the crankshaft sprocket.

   Install the sprocket onto the crankshaft until fully seated against the crankshaft flange.

5. Rotate the crankshaft sprocket until the alignment mark is in the 12 o'clock position.
Fig 5: View Of Compressed Tensioner
Courtesy of GENERAL MOTORS CORP.
6. Compress the timing chain tensioner guide and install the EN46330:  pin.

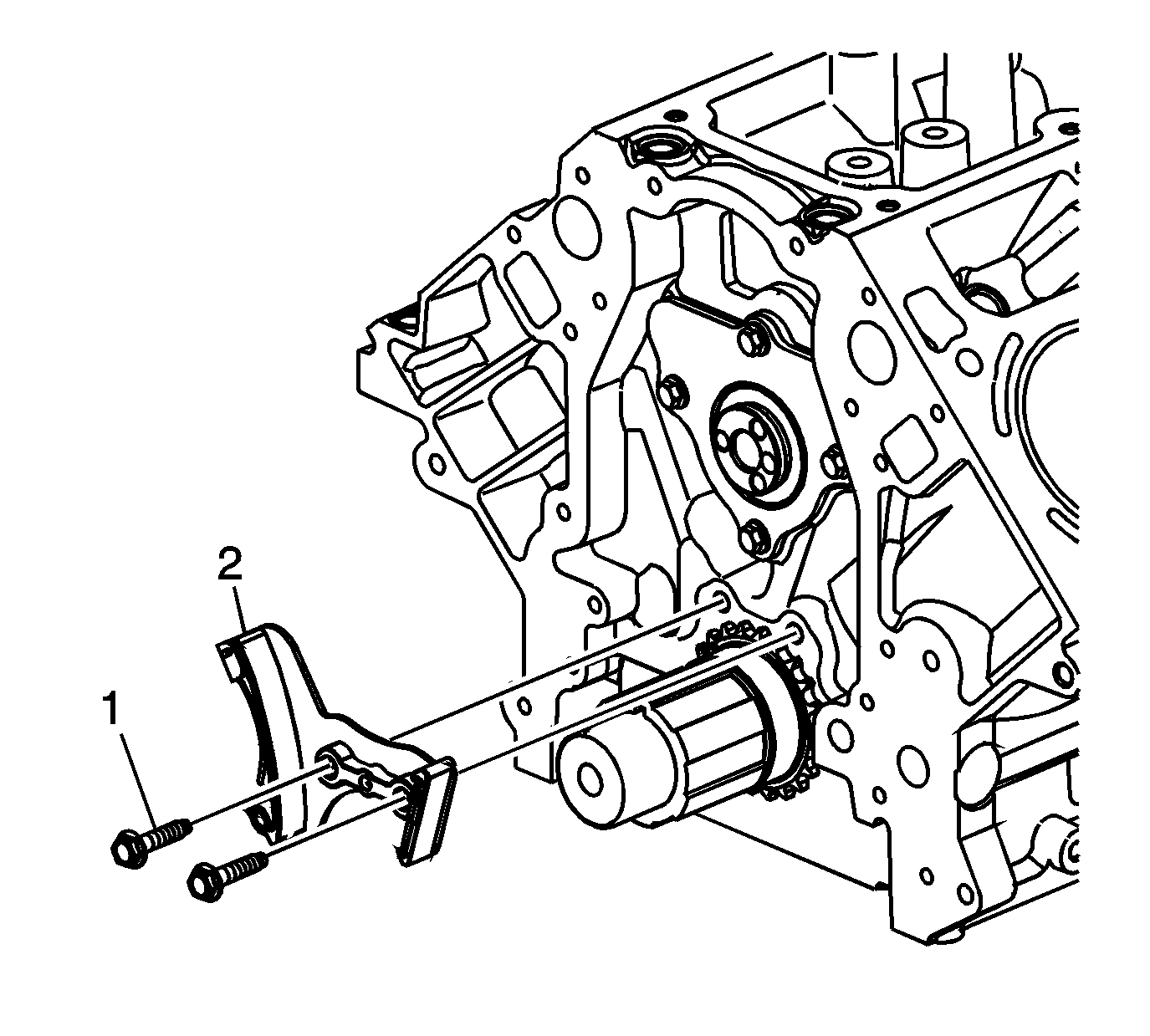

Fig 6: View Of Timing Chain Tensioner & Bolts
Courtesy of GENERAL MOTORS CORP.
CAUTION: Refer to Fastener Caution .
7. Install the timing chain tensioner (2) and bolts (1) and tighten to 30 N.m (22 lb ft).

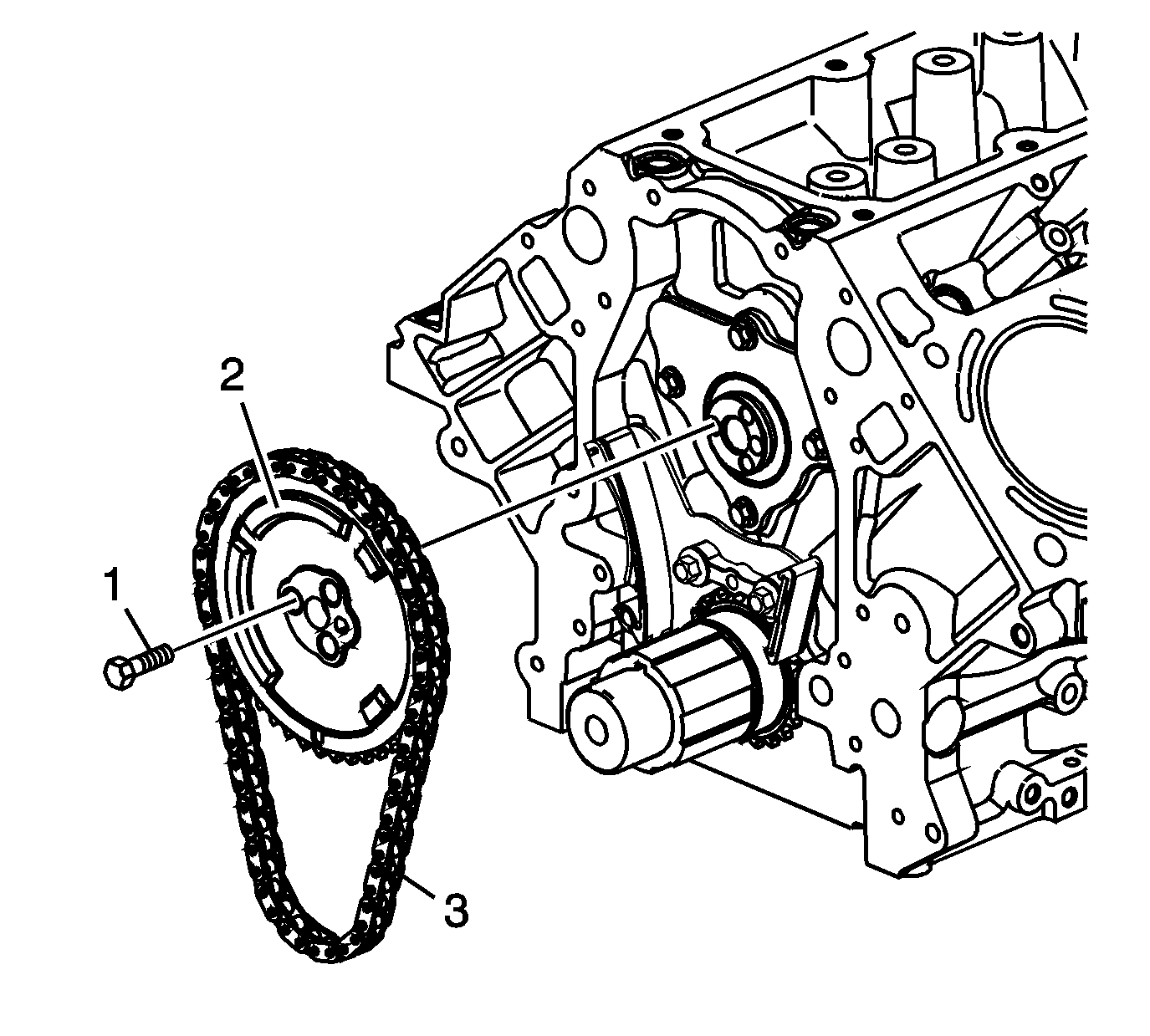

Fig 7: View Of Camshaft Sprocket & Timing Chain
Courtesy of GENERAL MOTORS CORP.
NOTE:
• Properly locate the camshaft sprocket onto the locating pin of the camshaft.
• The sprocket teeth and timing chain must mesh.
• The camshaft and the crankshaft sprocket alignment marks MUST be aligned properly.

  Position the camshaft sprocket alignment mark in the 6 o'clock position.

• For assembly the fastener threads, sprocket face and camshaft bolt holes must be clean, dry, and free of oil.
8. Install the camshaft sprocket (2) and timing chain (3). If necessary, rotate the camshaft or crankshaft sprockets in order to align the timing marks.

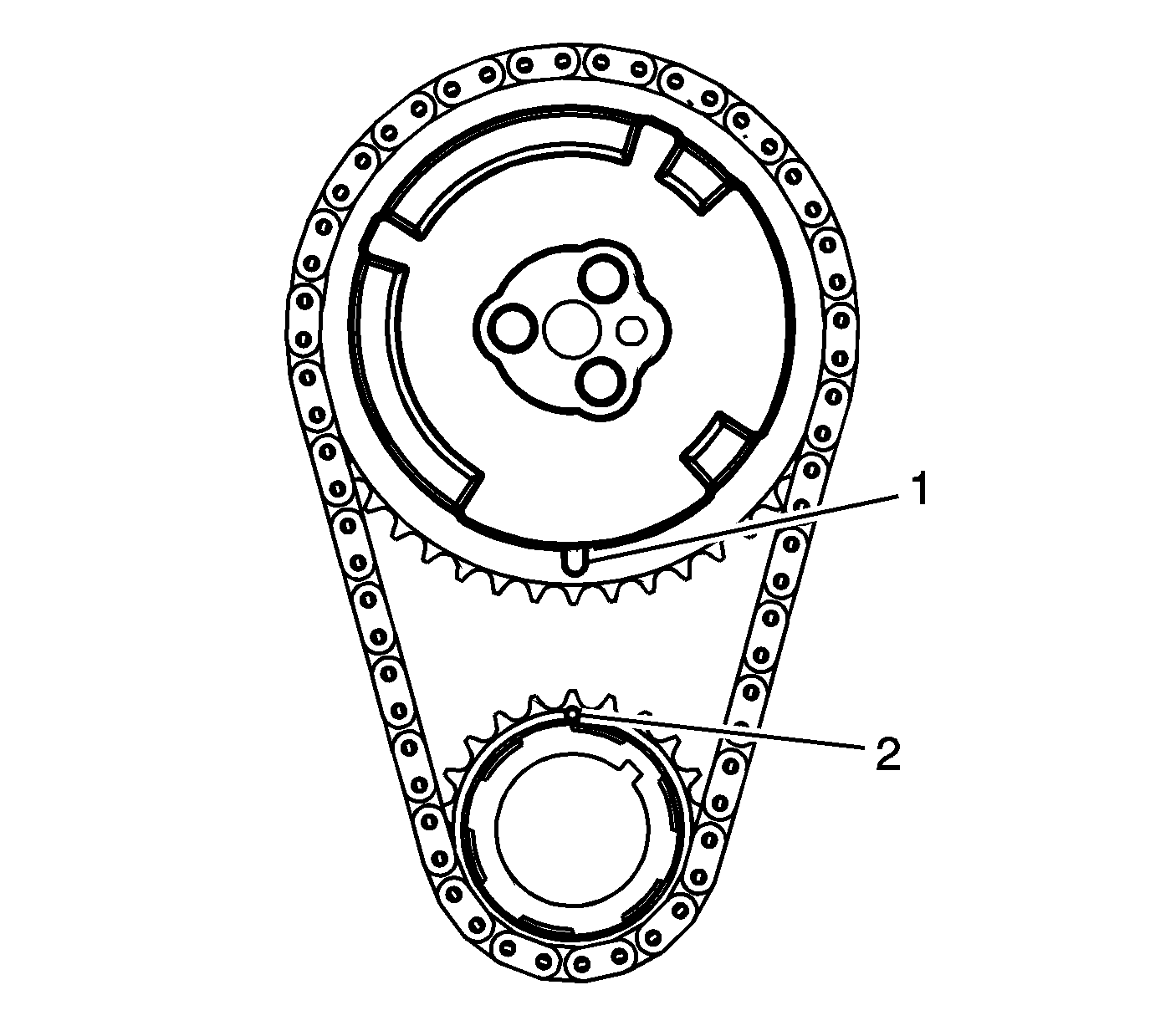

Fig 8: Aligning Sprockets
Courtesy of GENERAL MOTORS CORP.
9. Inspect the sprockets for proper alignment. The mark on the camshaft sprocket (1) should be located in the 6 o'clock position and the mark on the crankshaft sprocket (2) should be located in the 12 o'clock position.
10. Install the camshaft sprocket bolts and tighten to 25 N.m (18 lb ft).

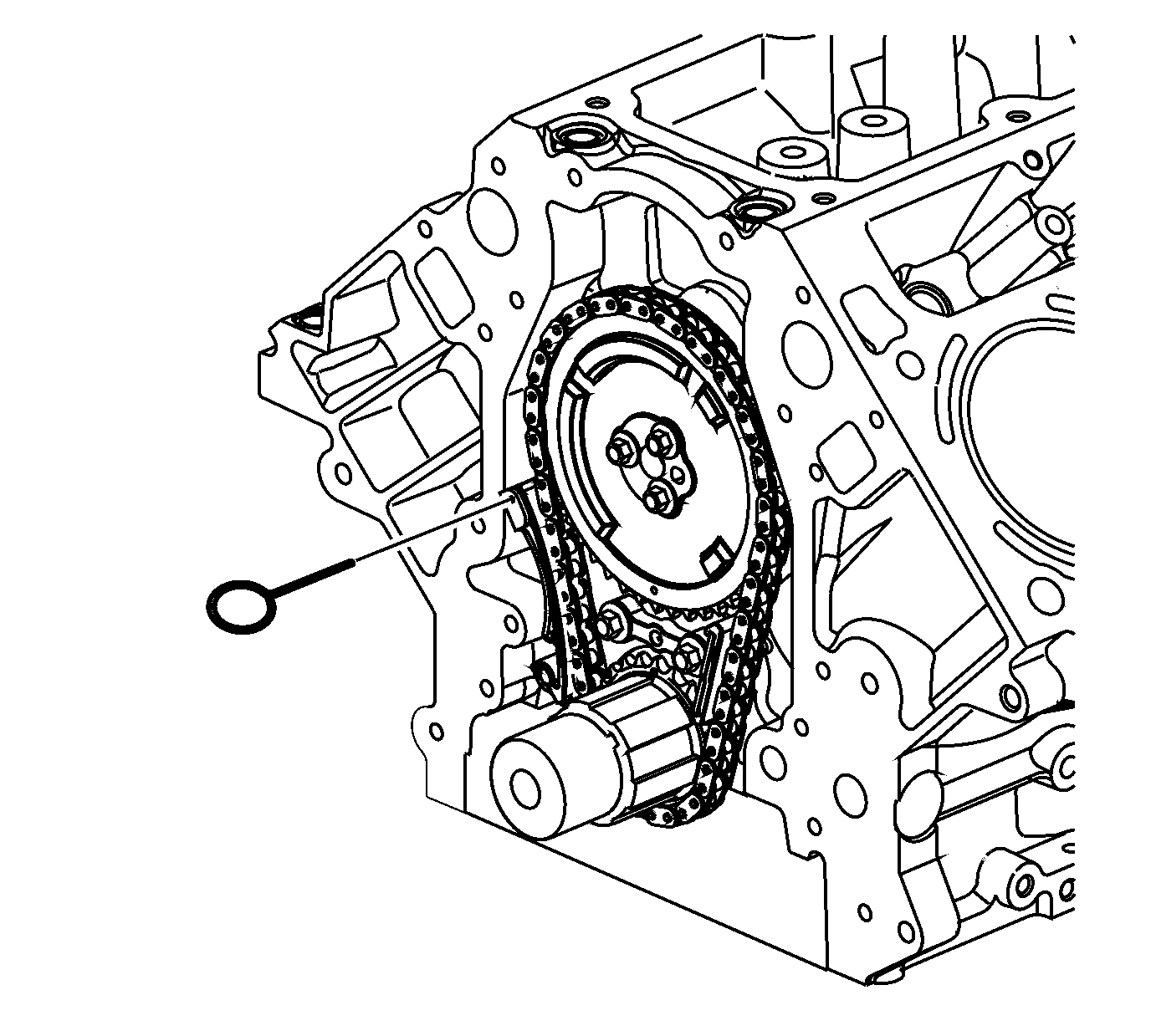

Fig 9: Timing Belt Tensioner Retaining Pin
Courtesy of GENERAL MOTORS CORP.
11. Remove the EN46330:  pin.
