Supercharger Disassemble

    Fig 1: Identifying Water Manifold, Gaskets & Bolts
    GM2054304Courtesy of GENERAL MOTORS CORP.
  1. Remove the water manifold bolts (1).
  2. Remove the water manifold (2).
  3. Remove and discard the water manifold gaskets (3).
    4. Fig 2: Identifying Coolant Pipes & Seals
    GM2054307Courtesy of GENERAL MOTORS CORP.
  4. Remove the coolant pipes (2) and seals (1).
  5. Remove and discard the seals (1) from the pipes (2).
    6. Fig 3: View Of Charge Air Coolers, Bolts & Insulators
    GM2173850Courtesy of GENERAL MOTORS CORP.
  6. Remove the charge air coolers (2), bolts (1) and insulators (3), as required.
    7. Fig 4: Identifying Air Outlet Pressure Sensor & Bolt
    GM2054310Courtesy of GENERAL MOTORS CORP.
  7. Remove the supercharger air outlet pressure sensor bolt (1).
  8. Remove the sensor (2).
  9. Inspect the sensor seal (3) for damage, do not remove the seal from the sensor.
  10. If the seal is damaged, replace the sensor. The seal is serviced with the sensor.
    11. Fig 5: Identifying Inlet Air Temperature Sensor
    GM2054312Courtesy of GENERAL MOTORS CORP.
  11. Remove the intake air temperature (IAT) sensor (1).
    12. Fig 6: Identifying Barometric Pressure (BARO) Sensor
    GM2054318Courtesy of GENERAL MOTORS CORP.
  12. Remove the barometric pressure (BARO) sensor bolt (1).
  13. Remove the BARO sensor (2).
  14. Inspect the BARO sensor seal (3) for damage, do not remove the seal from the sensor.
  15. If the seal is damaged, replace the sensor. The seal is serviced with the sensor.
    16. Fig 7: View Of Insulator Seals
    GM2054331Courtesy of GENERAL MOTORS CORP.
  16. Remove and discard the insulator seals (1).
    17. Fig 8: Charge Air Bypass Valve Tube & Vacuum Tube
    GM2054334Courtesy of GENERAL MOTORS CORP.
  17. Remove the charge air bypass valve tube (1).
  18. Remove the charge air bypass valve vacuum tube (2).
    19. Fig 9: Inlet Air Pressure Sensor, Seal & Bolt
    GM2054336Courtesy of GENERAL MOTORS CORP.
  19. Remove the inlet air pressure sensor bolt (1).
  20. Remove the inlet air pressure sensor (2).
  21. Inspect the inlet air pressure sensor seal (3) for damage, do not remove the seal from the sensor.
  22. If the seal is damaged, replace the sensor. The seal is serviced with the sensor.
    23. Fig 10: Identifying Evaporative Emissions (EVAP) Valve & Bolt
    GM2054338Courtesy of GENERAL MOTORS CORP.
  23. Loosen the evaporative emissions (EVAP) bolt.
  24. Remove the EVAP valve (1).
  25. Inspect the EVAP valve seal (2) for damage, do not remove the seal from the sensor.
  26. If the seal is damaged, replace the sensor. The seal is serviced with the sensor.

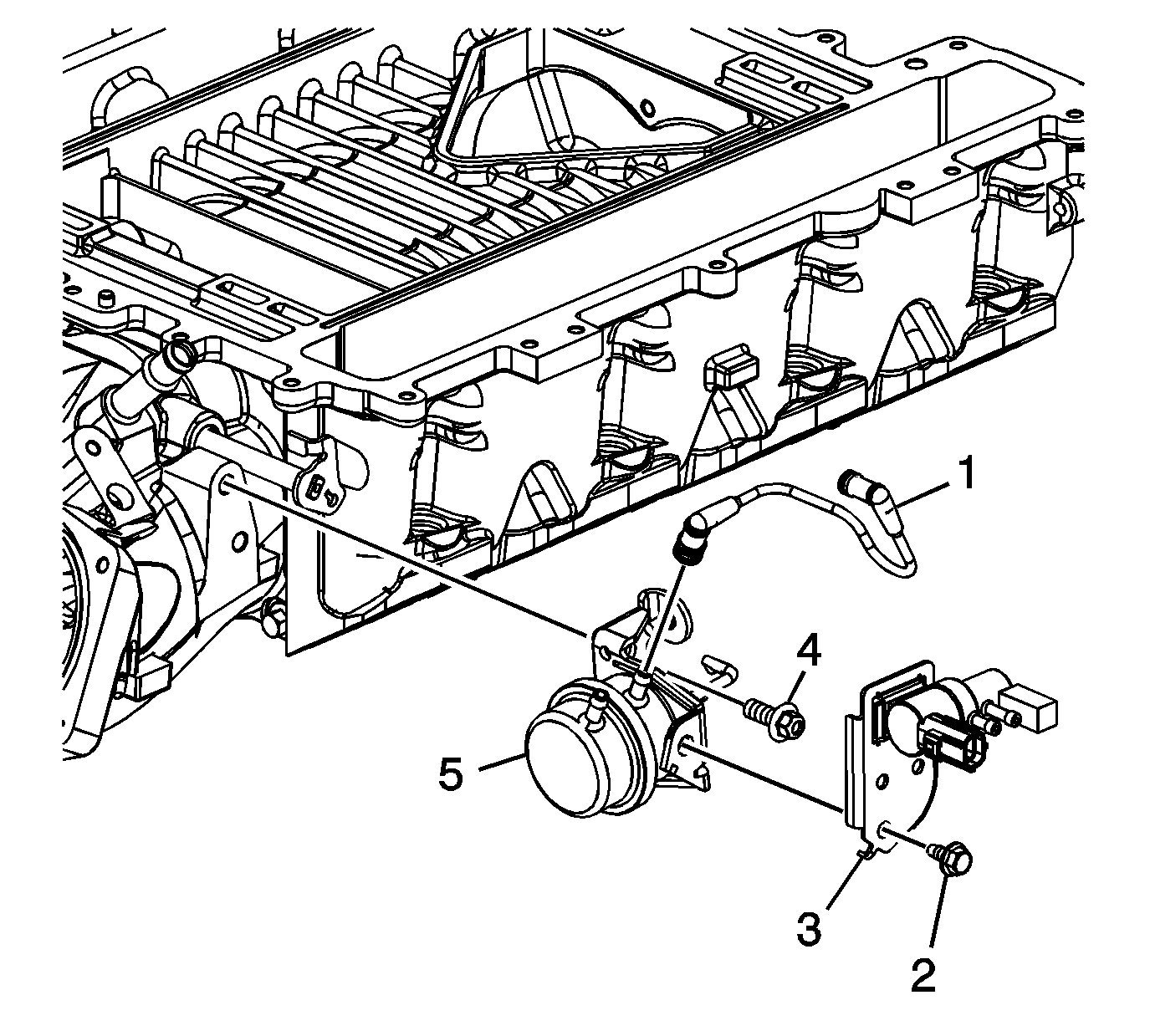

    27. Fig 11: Locating Bypass Actuator Tube, Valve & Bolts
    GM2054341Courtesy of GENERAL MOTORS CORP.
  27. Remove the bypass actuator tube (1).
  28. Remove the charge air bypass valve bolt (2).
  29. Remove the charge air bypass valve (3).
  30. Remove the bypass actuator bolts (4).
  31. Rotate the actuator downward and remove the rod from the lever of the supercharger.
  32. Remove the bypass actuator (5).
    33. Fig 12: Identifying Gasket & Rivets
    GM2054342Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Do not allow dirt or debris to enter the passages of the supercharger. Cover the intake ports as required.
    • With the manifold positioned upside down on a bench, the lower assembly may be positioned onto the intercooler cover dowel pins. Use care not to reposition or bend the dowel pins.
  33. Drill out the gasket rivets (1) using a drill bit with an outside diameter (OD) no larger than 3.2 mm (0.125 in).
  34. Remove and discard the gaskets (2).
