Oil Tank Disassemble

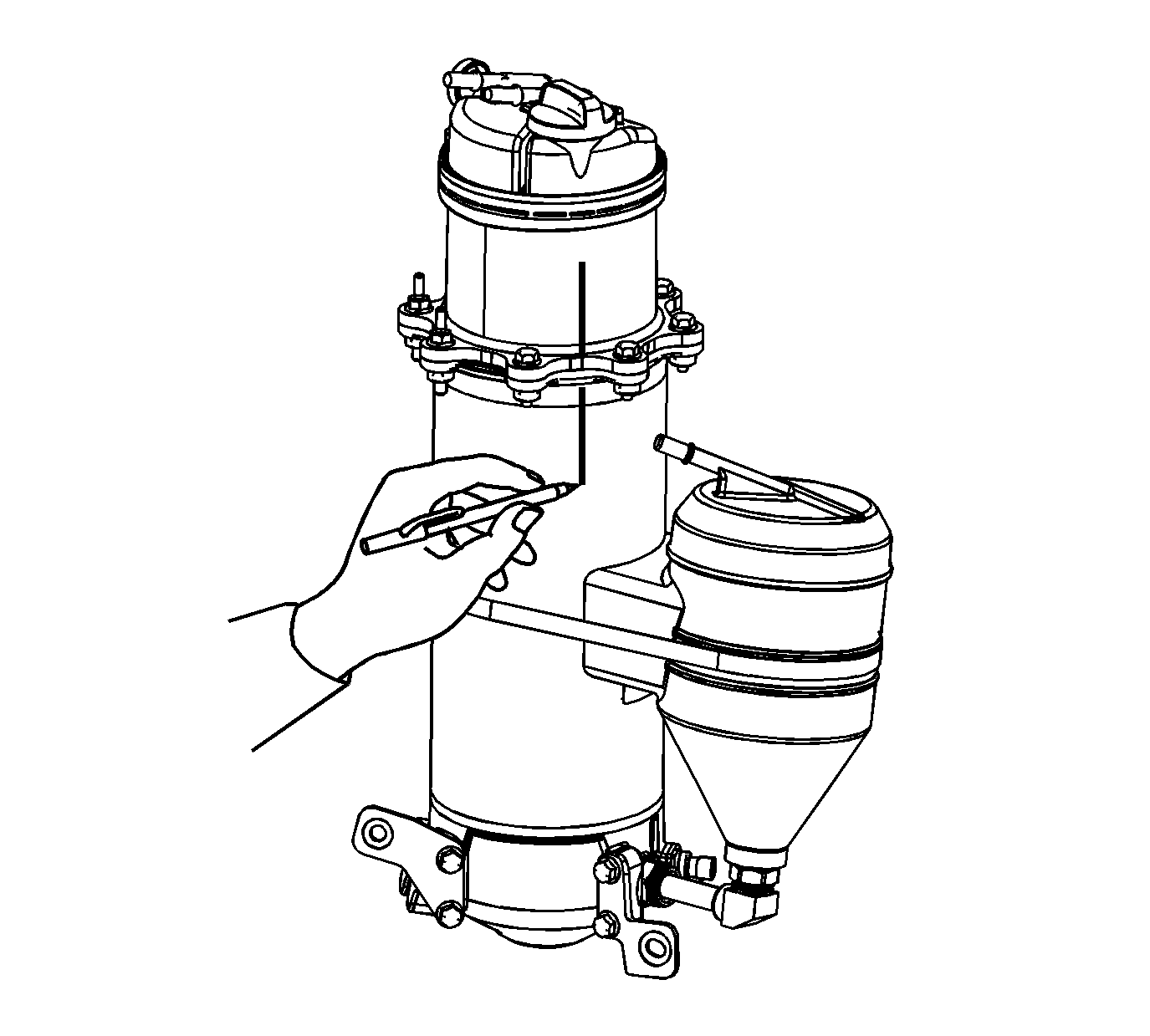

Fig 1: View Of Oil Tank Assembly

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Engine Oil Tank Debris Caution .

Prior to disassembly, mark the upper and lower portions of the large tank for proper reassembly. Mark the tank on the area below the oil fill cap.

Fig 2: View Of Oil Level Indicator & Oil Fill Cap

Courtesy of GENERAL MOTORS CORP.

Fig 3: View Of Oil Tank Components

Courtesy of GENERAL MOTORS CORP.

Remove the bolts (1) and bolt/studs (2) from the large tank. Note the locations of the bolt/studs for reassembly.
Separate the upper (3) and lower (5) portions of the large tank.
Remove the O-ring seal (4).

Fig 4: View Of Large Oil Tank, Tube & O-Ring

Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of Oil Tank Screen

Courtesy of GENERAL MOTORS CORP.

Remove the screen (1) from the tank (2). Reaching inside and into the bottom of the tank, pull the screen into the tank in order to remove.
The screen locking tabs may break upon removal from the oil tank. If the screen cannot be properly cleaned or has a broken locking tab, replace with a new screen.

Fig 6: View Of Large & Small Oil Tank Clamp

Courtesy of GENERAL MOTORS CORP.

Loosen and remove the clamp (1) in order to separate the large tank from the small oil tank.

Fig 7: Transfer Tube & Fittings

Courtesy of GENERAL MOTORS CORP.

Remove the retaining clips from the transfer tube fittings (2 and 4).
Remove the transfer tube (3) and separate the large tank (5) from the small tank (1).
Remove the fittings (2 and 4) from the tanks as required.
