Oil Tank Assemble

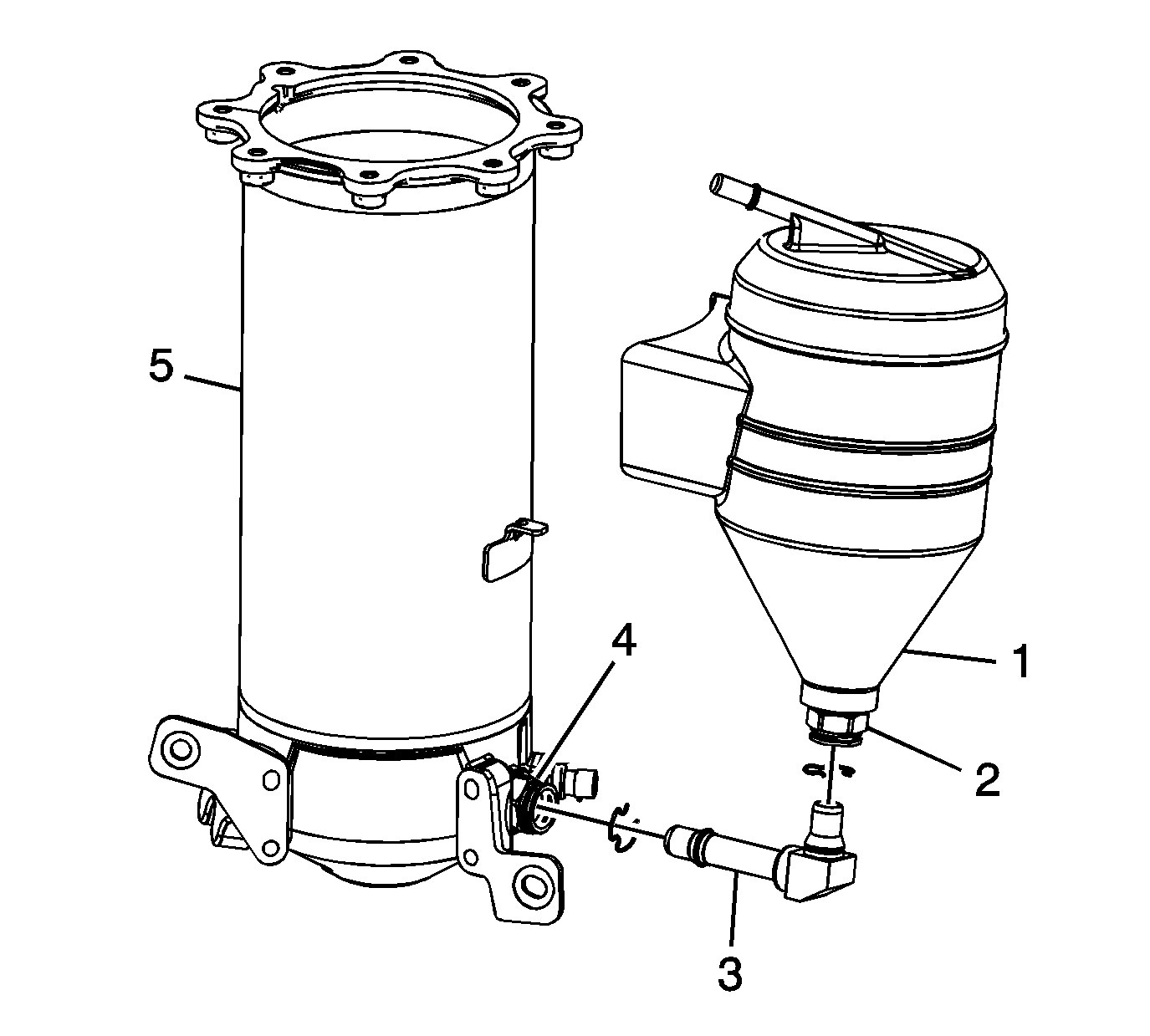

    Fig 1: Transfer Tube & Fittings
    GM2085677Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Engine Oil Tank Debris Caution .
    CAUTION: Refer to Fastener Caution .
  1. Install the oil transfer tube fittings (2 and 4) to the large and small oil tanks and tighten to 35 N.m (26 lb ft).
  2. Assemble the transfer tube (3), large tank (5) and small tank (1).

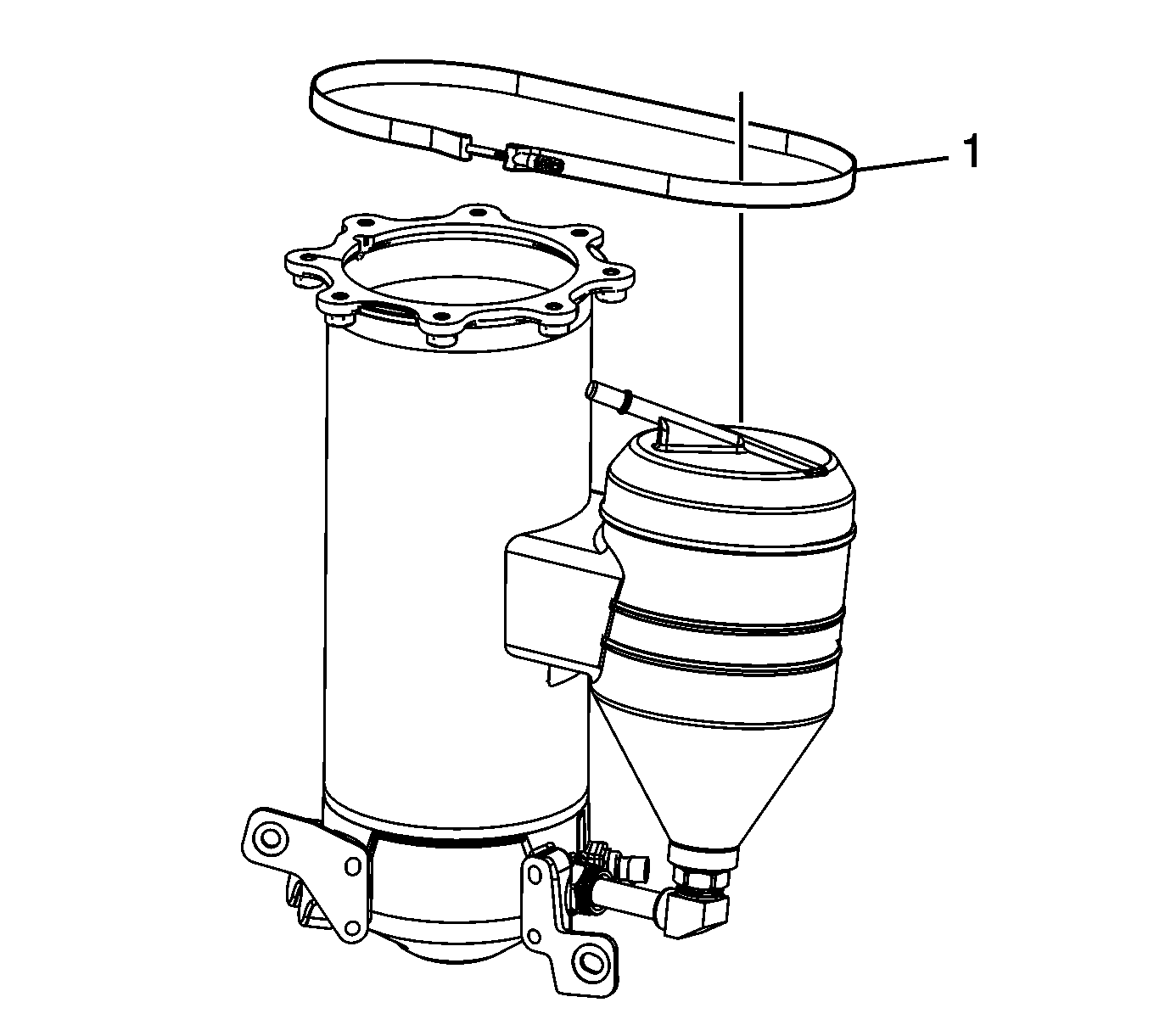

    3. Fig 2: View Of Large & Small Oil Tank Clamp
    GM2085670Courtesy of GENERAL MOTORS CORP.
  3. Install the clamp (1).

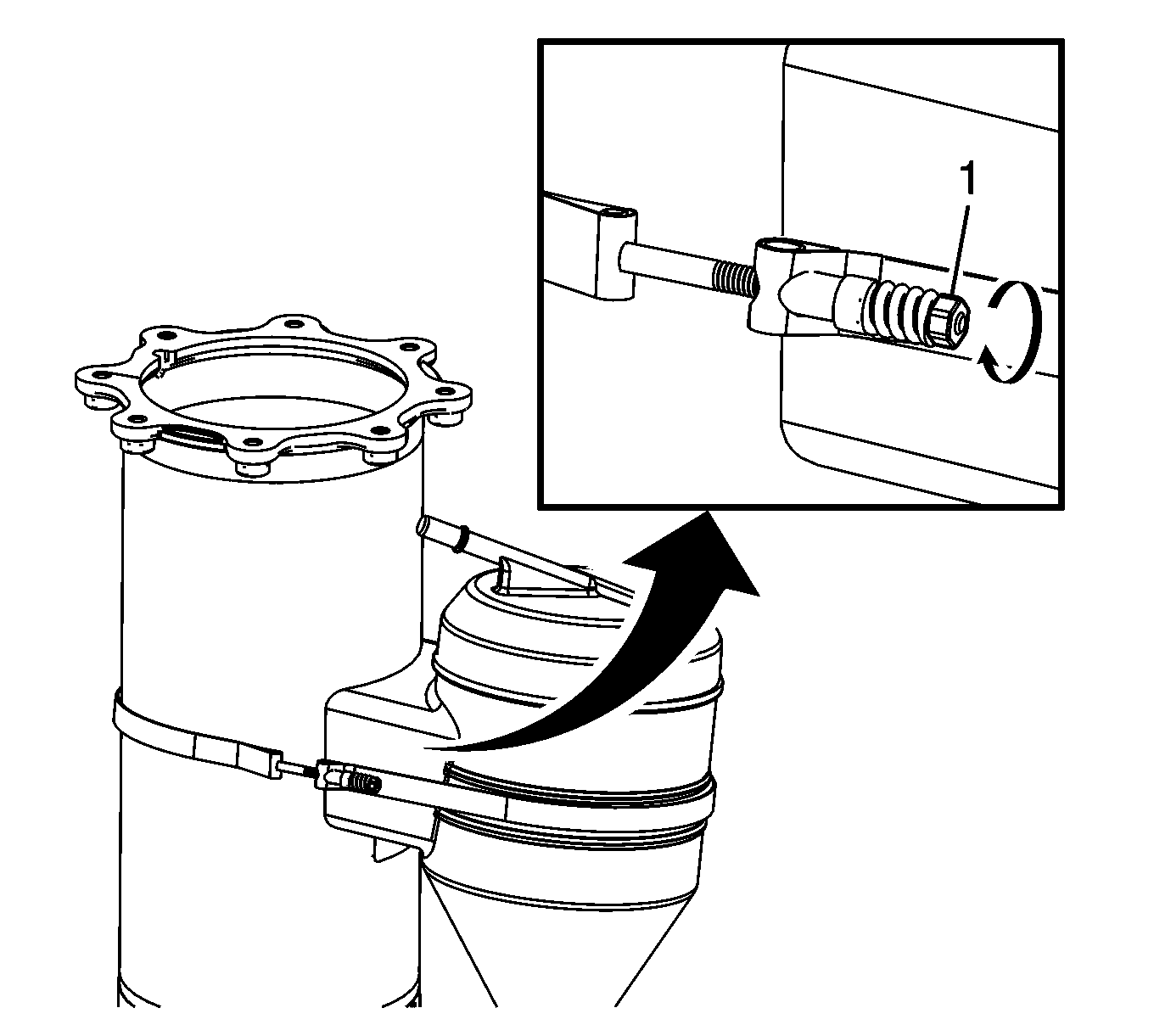

    4. Fig 3: Identifying Clamp Nut
    GM2137139Courtesy of GENERAL MOTORS CORP.
  4. Tighten the nut (1). With the nut of the clamp positioned so that the face of the nut is flush with the end of the bolt, rotate the nut clockwise 21 complete turns to apply tension to the clamp.

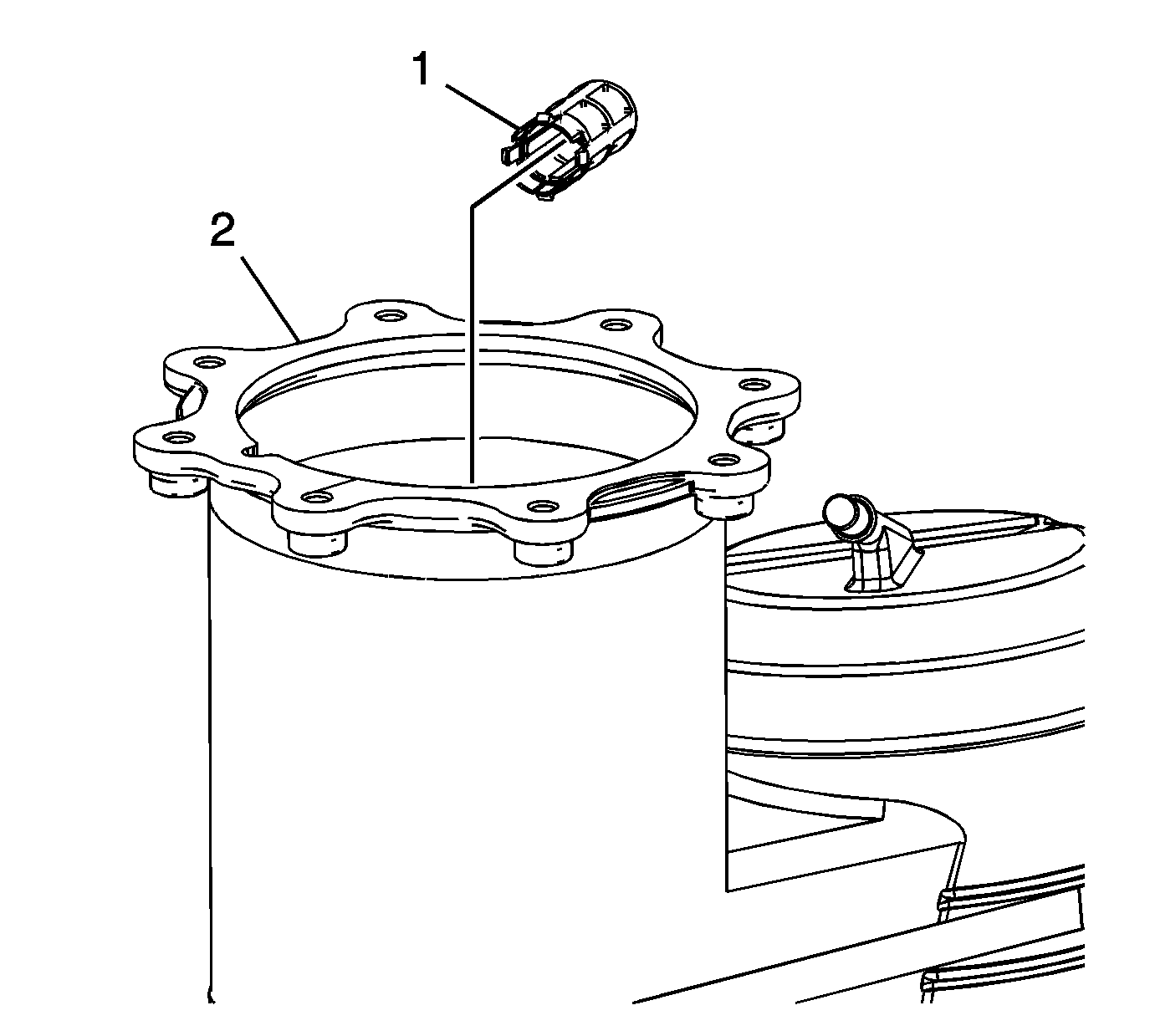

    5. Fig 4: View Of Oil Tank Screen
    GM2054218Courtesy of GENERAL MOTORS CORP.
  5. Install the screen (1) into the tank (2). Inspect for proper installation of the screen to the tank. When installed properly, the tabs on the screen will lock into the port opening at the bottom of the tank.
    6. Fig 5: View Of Large Oil Tank, Tube & O-Ring
    GM2054216Courtesy of GENERAL MOTORS CORP.
  6. Install the O-ring (1) to the tube.
  7. Install the tube (2) to the large tank (3).
    8. Fig 6: View Of Oil Tank Components
    GM2054213Courtesy of GENERAL MOTORS CORP.
  8. Install the O-ring seal (4).
  9. Assemble the upper (3) and lower (5) portions of the large tank. Aligning the markings made prior to disassembly.
    10. Fig 7: View Of Tube & Top Tank

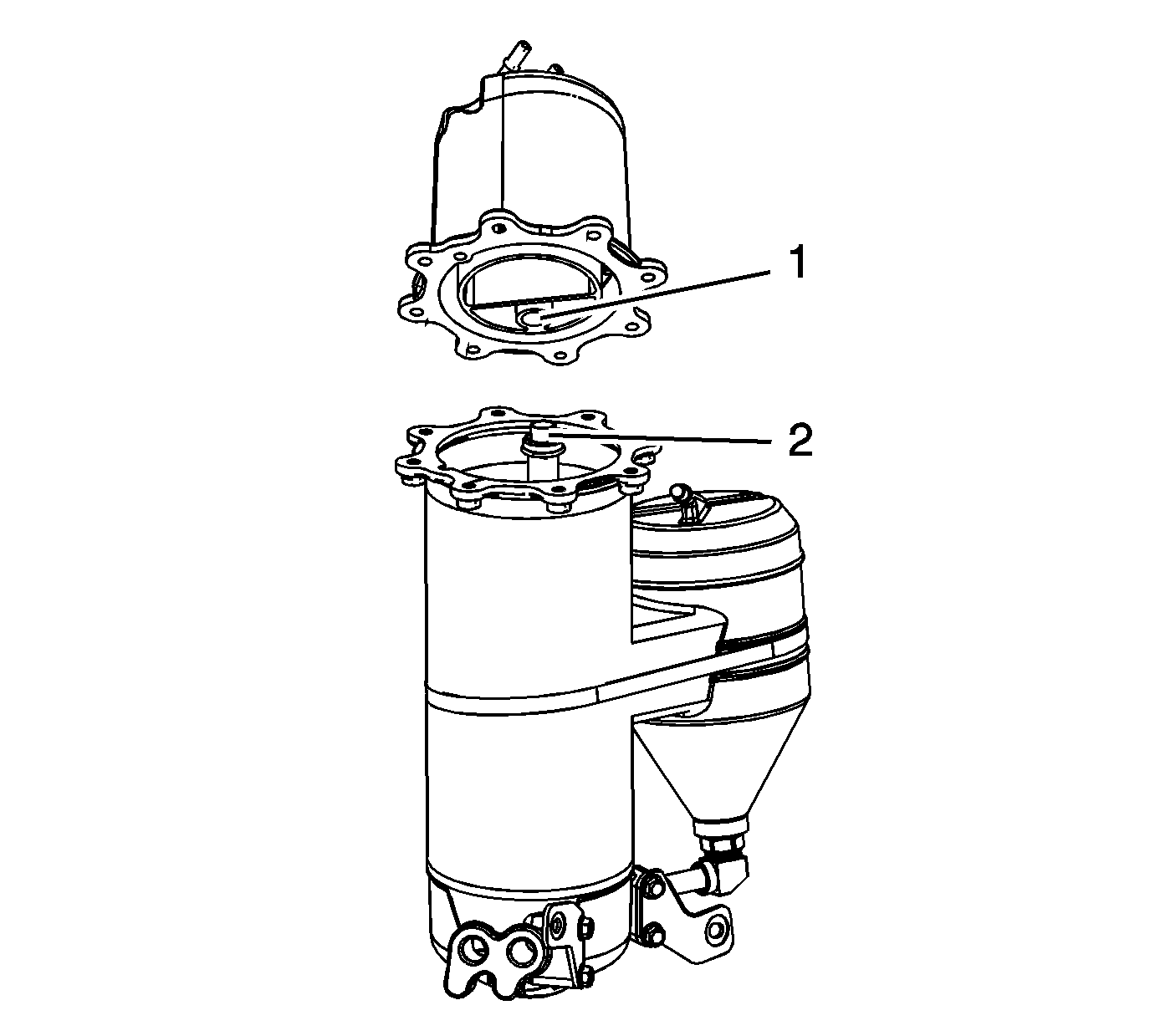

    GM2054292Courtesy of GENERAL MOTORS CORP.
  10. Inspect for proper installation of the tube to top tank. The top of the tube (2) should locate into the opening (1) in the top portion of the tank.

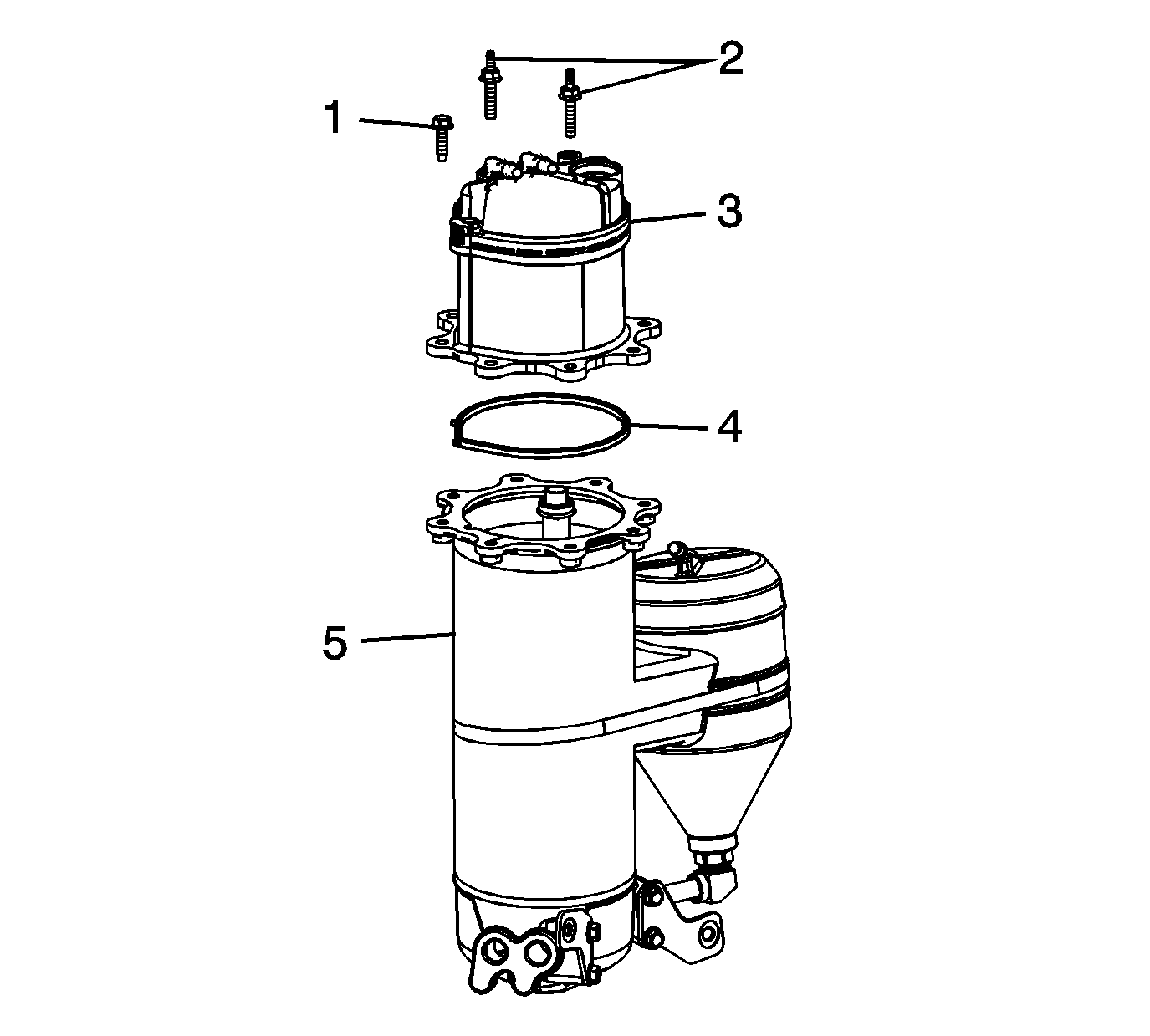

    11. Fig 8: View Of Oil Tank Components
    GM2054213Courtesy of GENERAL MOTORS CORP.
  11. Install the bolts (1) and bolt/studs (2) to the tank and tighten to 25 N.m (18 lb ft). Note the locations of the bolt/studs during reassembly.

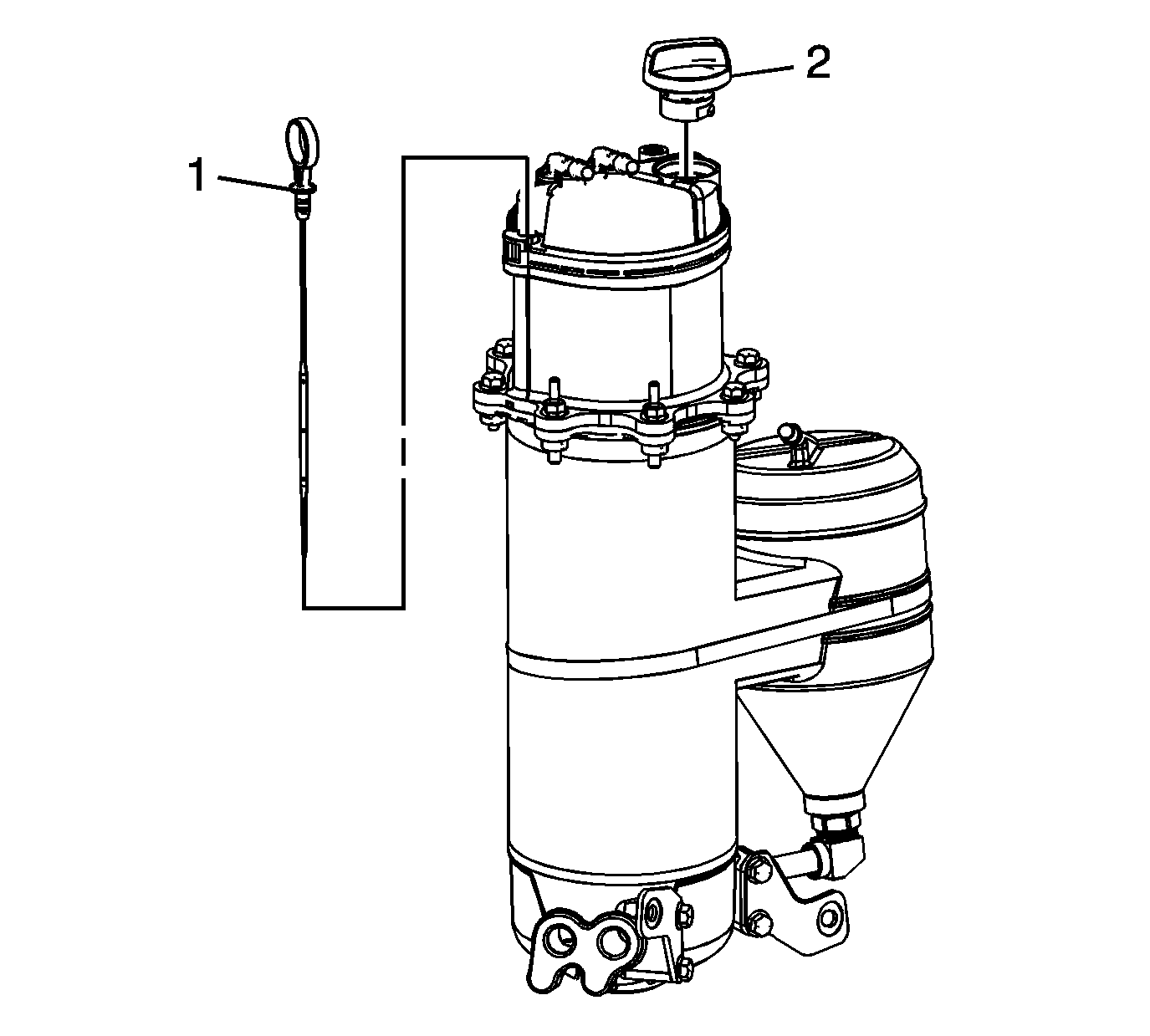

    12. Fig 9: View Of Oil Level Indicator & Oil Fill Cap
    GM2054209Courtesy of GENERAL MOTORS CORP.
  12. Install the oil level indicator (1) and oil fill cap (2).
