Oil Pan Cleaning and Inspection (6.2L LS3)

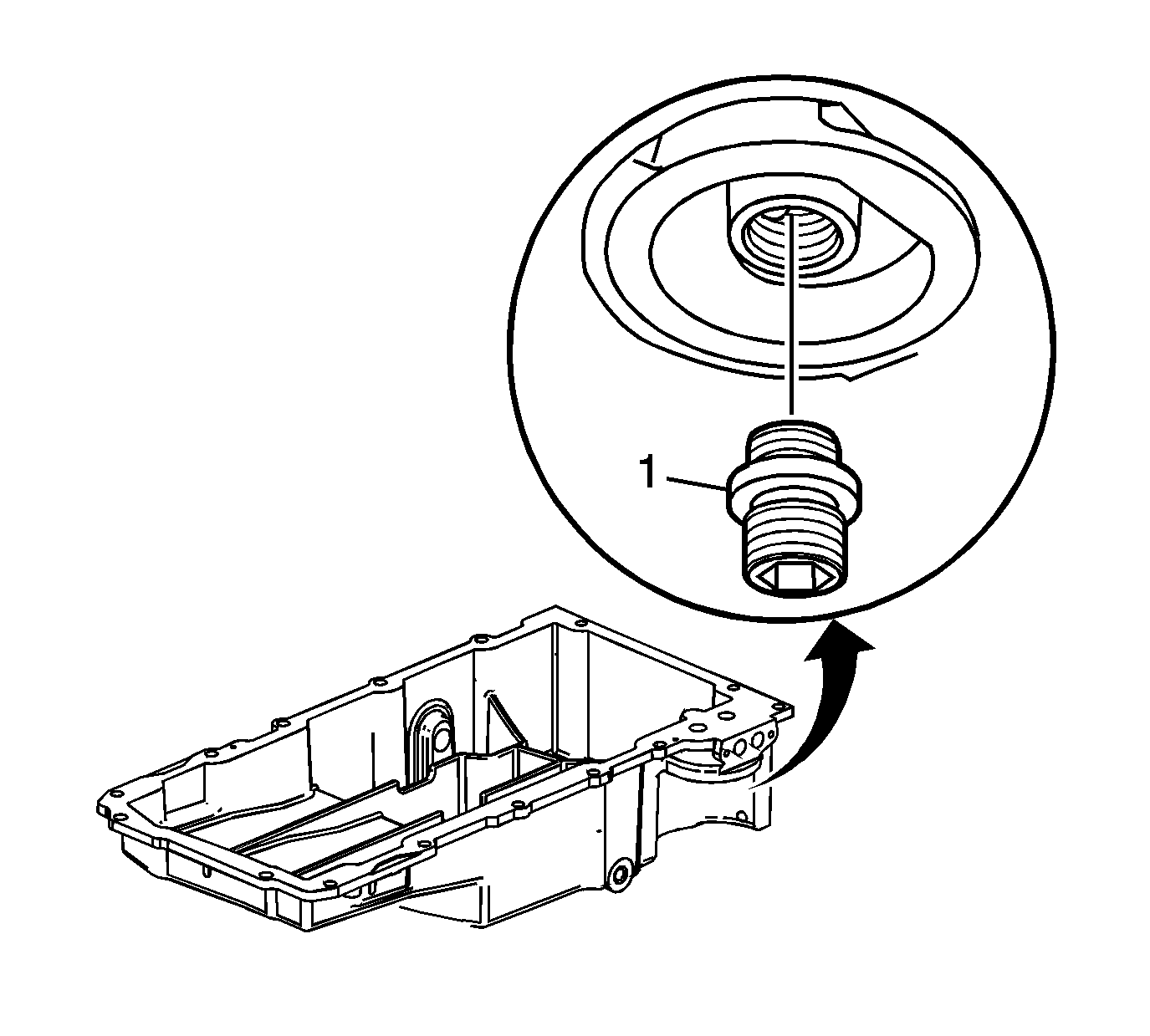

    Fig 1: View Of Oil Filter Fitting
    GM1704630Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filter fitting (1), as required.

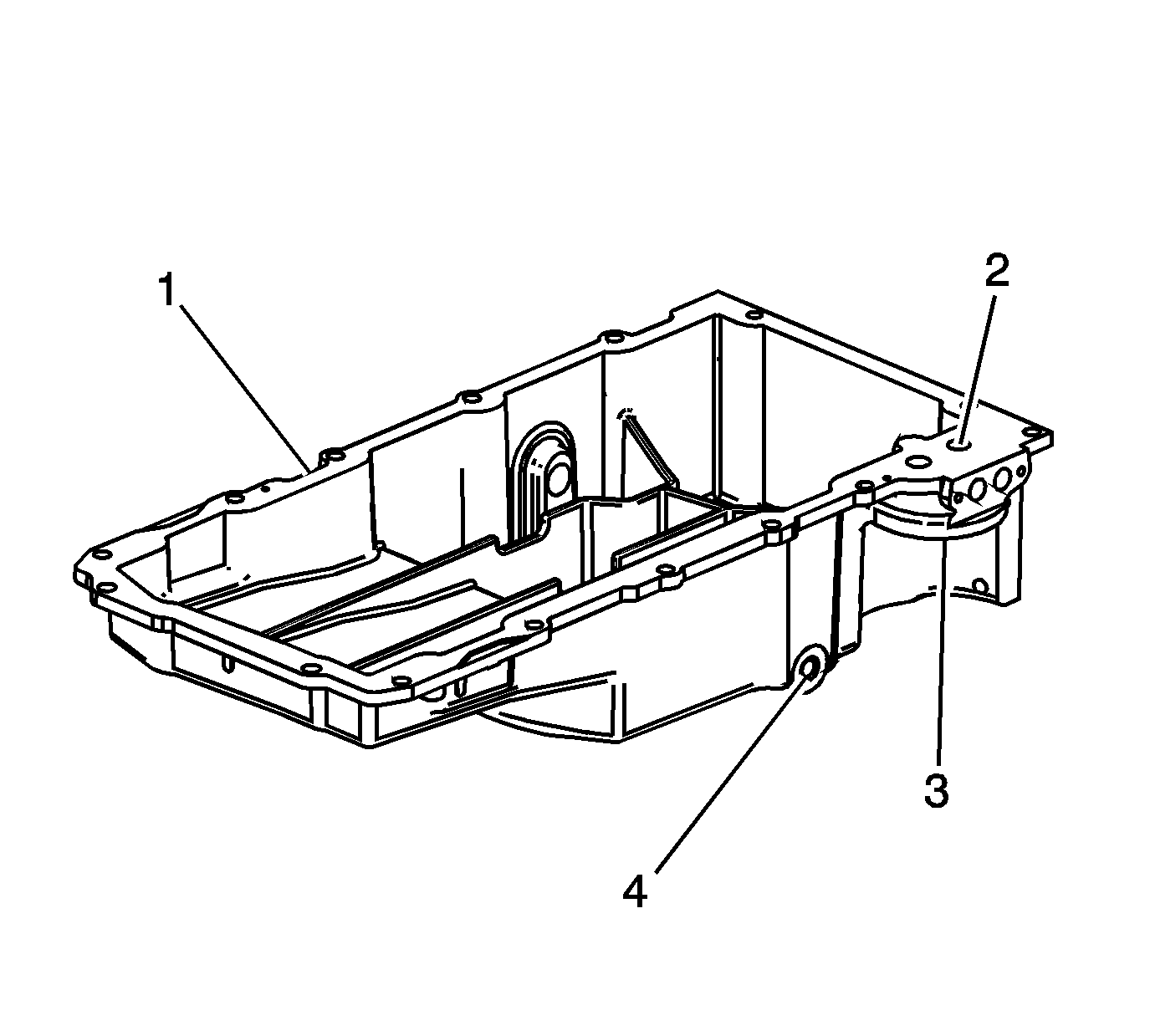

    2. Fig 2: Oil Pan Cleaning & Inspection Areas
    GM1408875Courtesy of GENERAL MOTORS CORP.
  2. Clean the oil pan in solvent.
    3. WARNING: Refer to Safety Glasses Warning .
  3. Dry the oil pan with compressed air.
  4. Inspect the oil pan for the following conditions:
    • Damaged gasket surfaces (1)
    • Restrictions within the oil passages (2) of the pan
    • Damaged oil filter seal surface (3)
    • Threaded bolt holes (4) for damage
    5. Fig 3: View Of Oil Filter Fitting
    GM1704630Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  5. Install the oil filter fitting (1), as required, and tighten to 55 N.m (40 lb ft).
