Engine Oil Cooler Disassemble

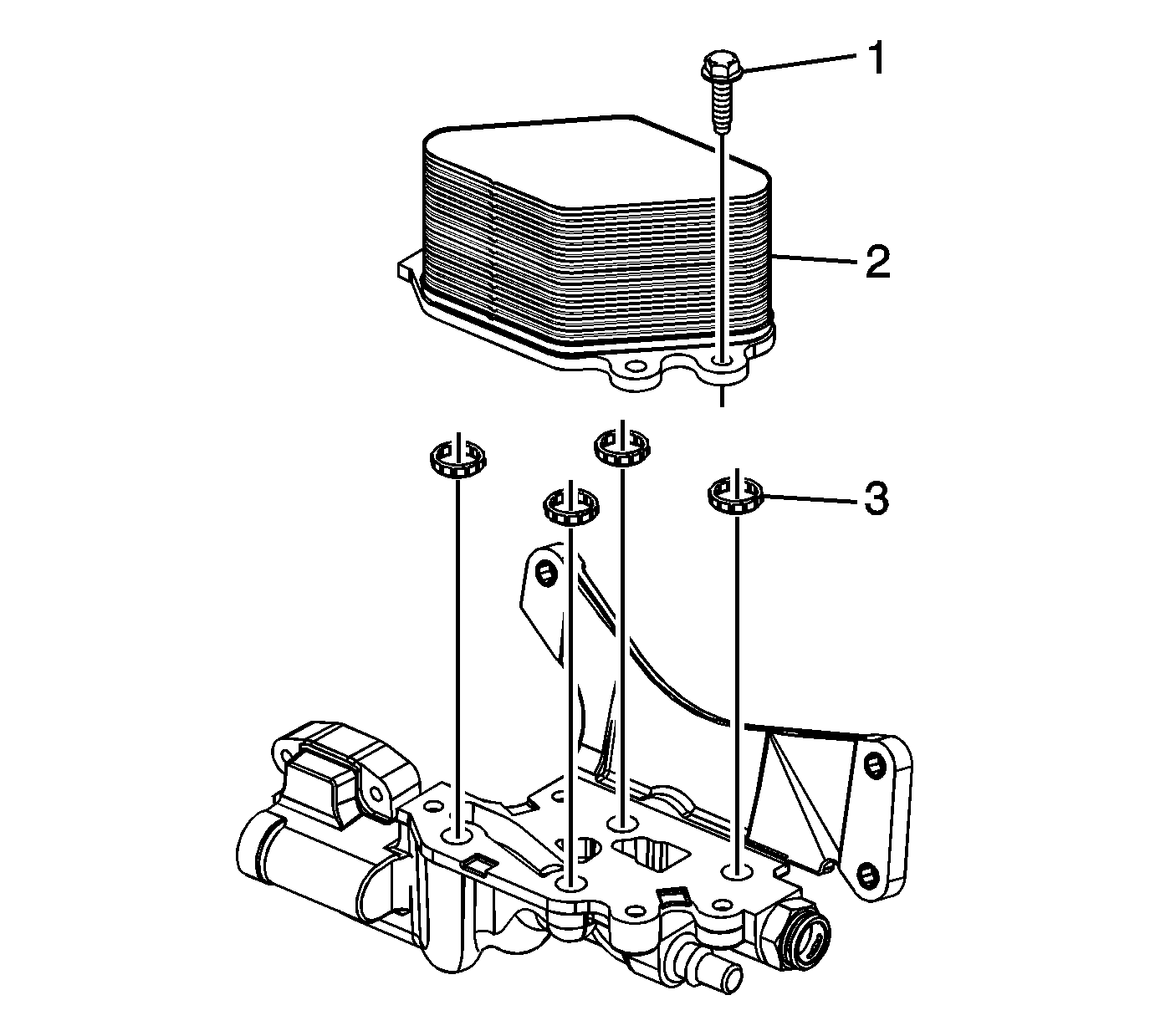

    Fig 1: Oil Cooler Core Components
    GM2054197Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Engine Oil Cooler Debris Caution .
  1. Remove the oil cooler core bolts (1).
  2. Remove the oil cooler core (2).
  3. Remove the oil cooler core seals (3).

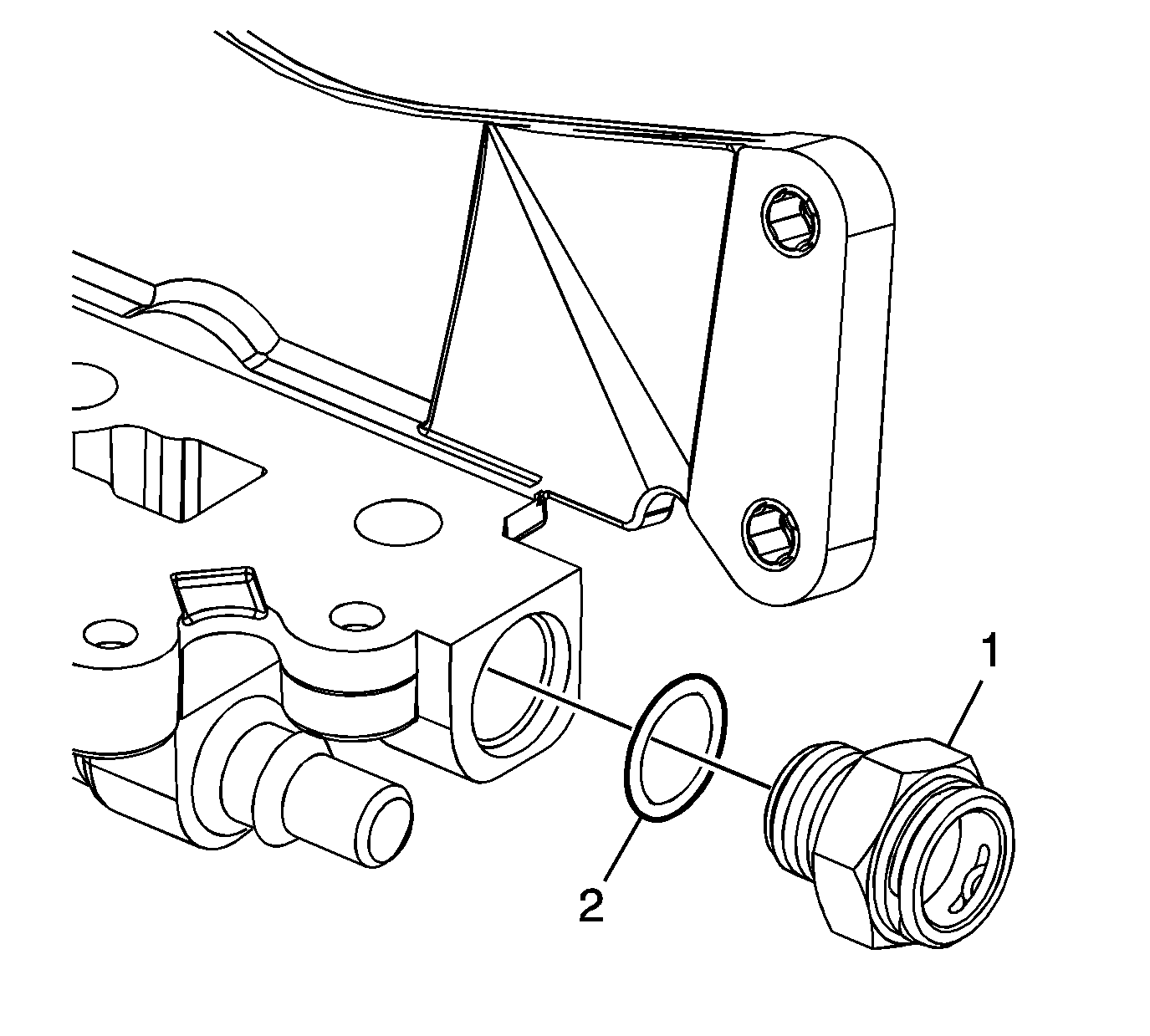

    4. Fig 2: Identifying Coolant Fitting & Seal
    GM2054200Courtesy of GENERAL MOTORS CORP.
  4. Remove the coolant fitting (1), as required.
  5. Remove the coolant fitting seal (2).
  6. Discard the seal.
