Engine Coolant Air Bleed Pipe and Hole Cover Cleaning and Inspection (6.2L LS9)

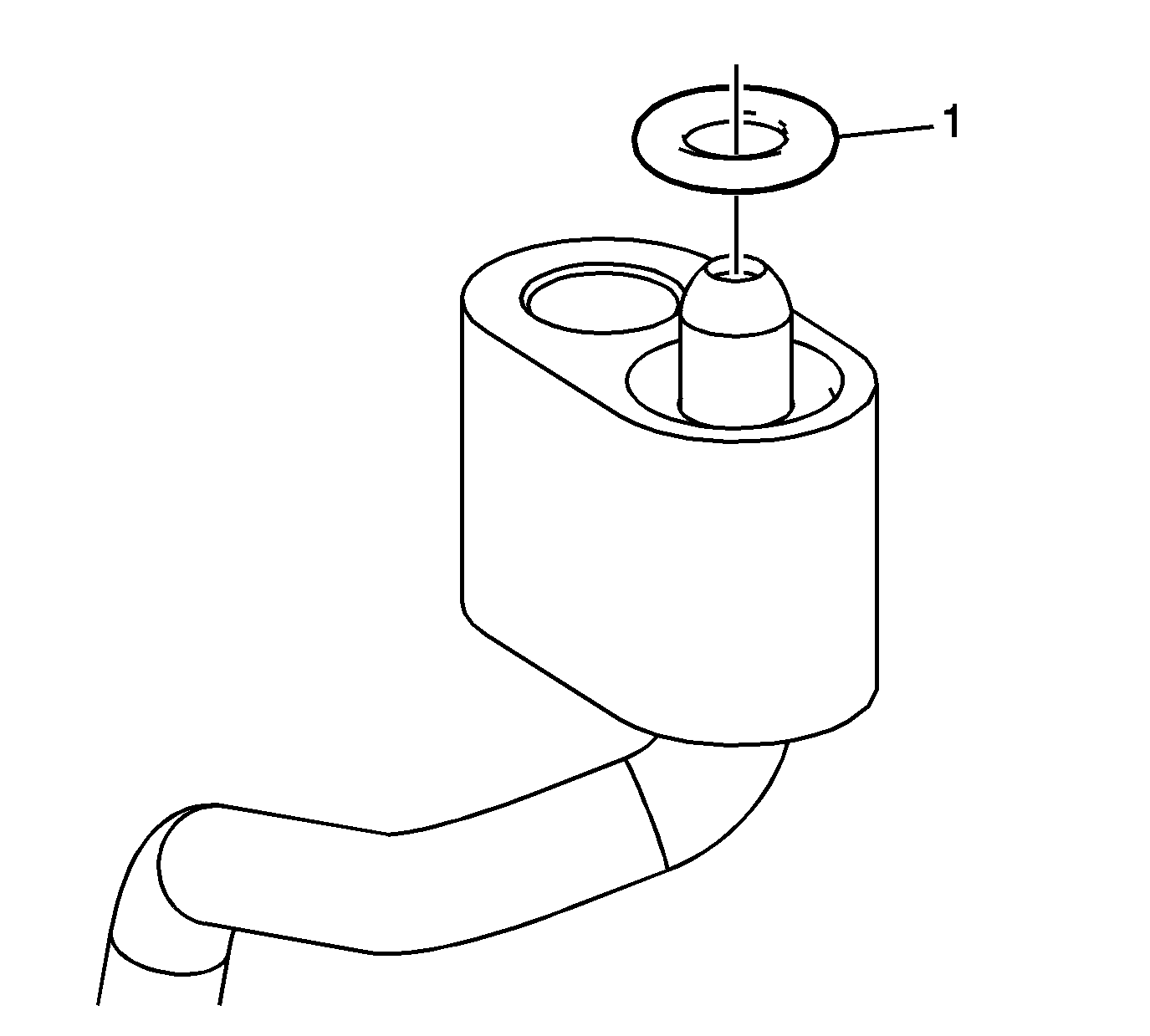

    Fig 1: Identifying Engine Coolant Air Bleed Pipe Seal
    GM2054370Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not use the engine coolant air bleed pipe seals again. Upon installation of the pipes, install NEW seals.
  1. Remove the seals (1) from the pipes.

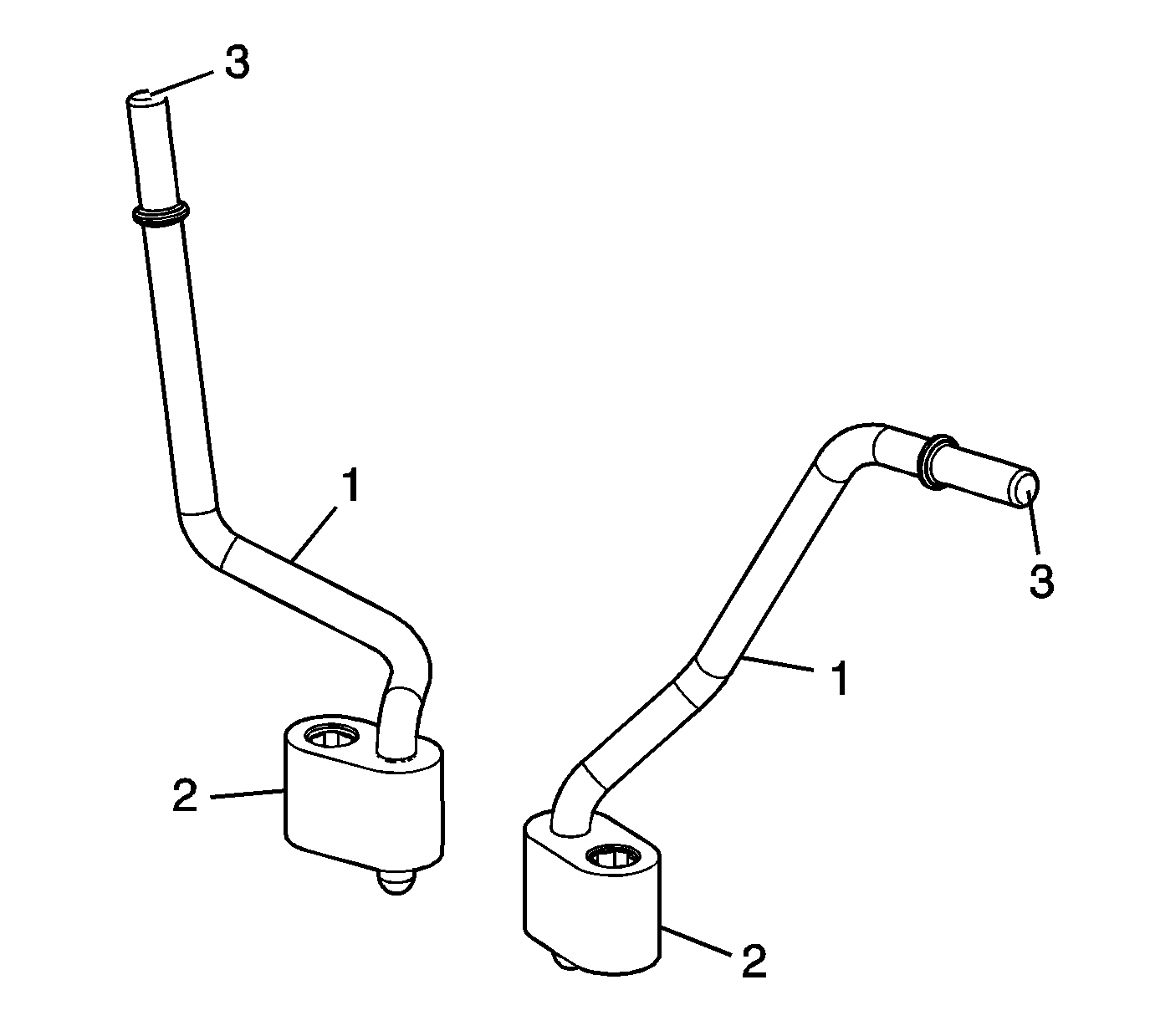

    2. Fig 2: View Of Engine Coolant Air Bleed Pipes
    GM2054371Courtesy of GENERAL MOTORS CORP.
  2. Clean the pipes in solvent.
    3. WARNING: Refer to Safety Glasses Warning .
  3. Dry the pipes with compressed air.
  4. Inspect the pipes for damaged sealing surfaces (1, 2) or restrictions within the pipe (3).
