Engine Flywheel Removal (6.2L LS9)

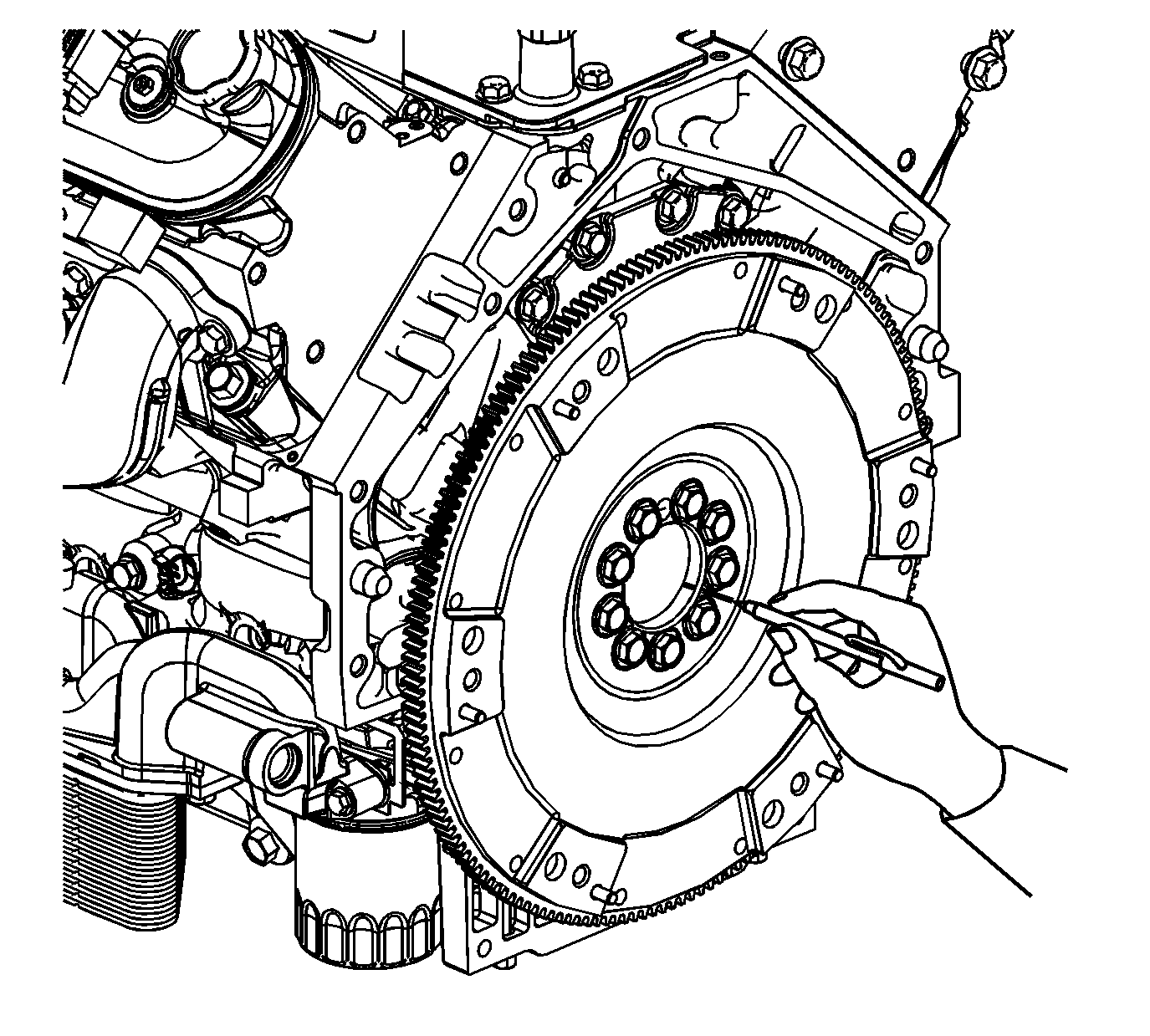

Fig 1: Marking End Of Crankshaft & Transmission Flywheel

Courtesy of GENERAL MOTORS CORP.

NOTE: Note the position and direction of the engine flywheel before removal. The flywheel does not use a locating pin for alignment. Mark or scribe the end of the crankshaft and the flywheel before component removal. Refer to Engine Balancing .

Mark or scribe the end of the crankshaft and the flywheel.

Fig 2: View Of Flywheel & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the flywheel bolts (1).
Remove the flywheel (2).

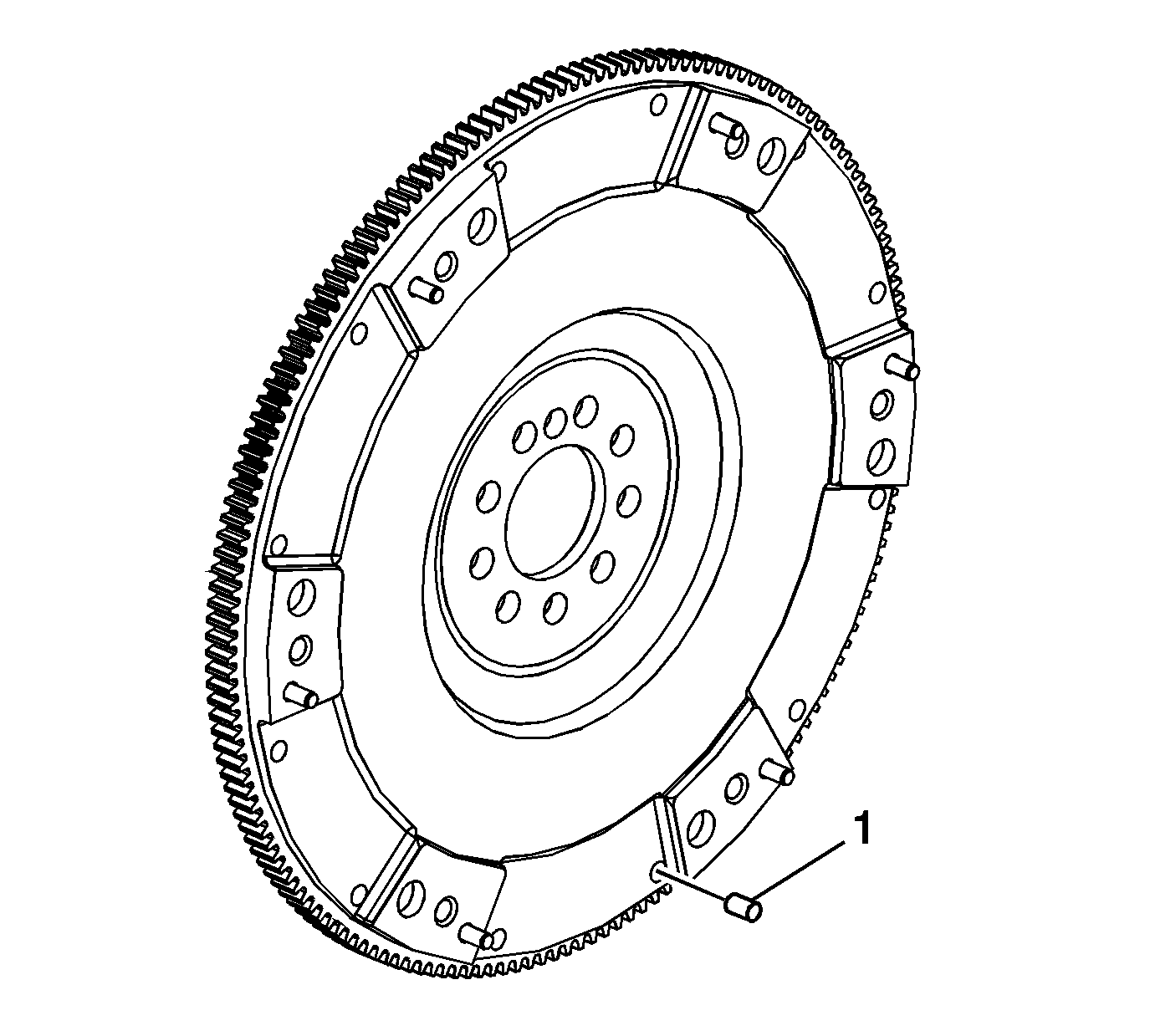

Fig 3: Locating Flywheel Balance Weights

Courtesy of GENERAL MOTORS CORP.

Note the location of the flywheel balance weights (1), if applicable.
