Engine Oil Cooler Adapter Replacement (LS9 and LS7)

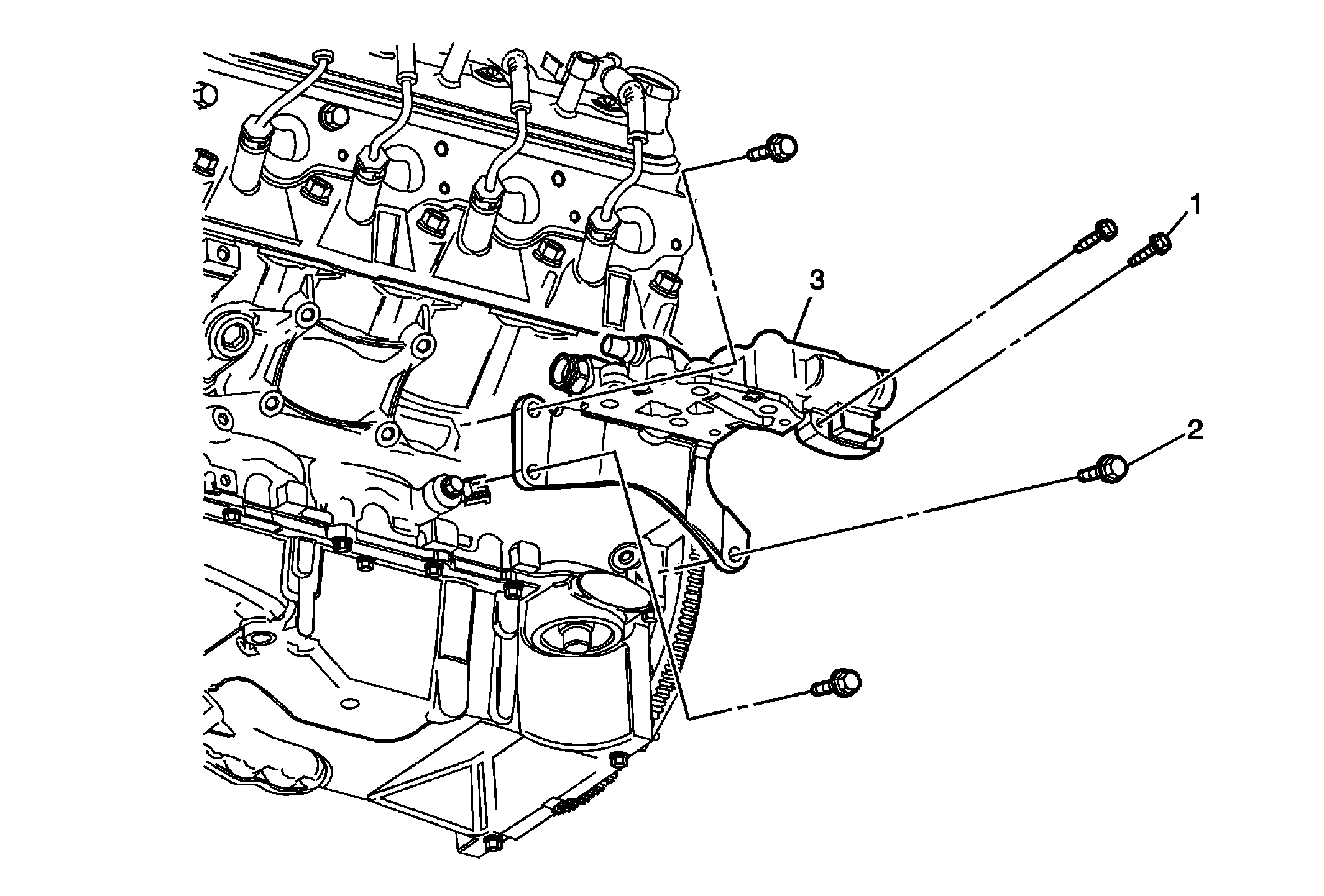

Fig 1: Engine Oil Cooler Adapter (LS9 And LS7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the engine oil cooler hose/pipe. Refer to Engine Oil Cooler Hose/Pipe Replacement (LS9 and LS7) . Remove the engine oil cooler core. Refer to Engine Oil Cooler Core Replacement (LS9 and LS7) .
1	Engine Oil Cooler Adapter Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Engine Oil Cooler Adapter Fastener (Qty: 3) Tighten: 25 N.m (18 lb ft)
3	Engine Oil Cooler Adapter Procedure: Transfer components as necessary.
