Evaporative Emission Canister Purge Tube Replacement (LS9)

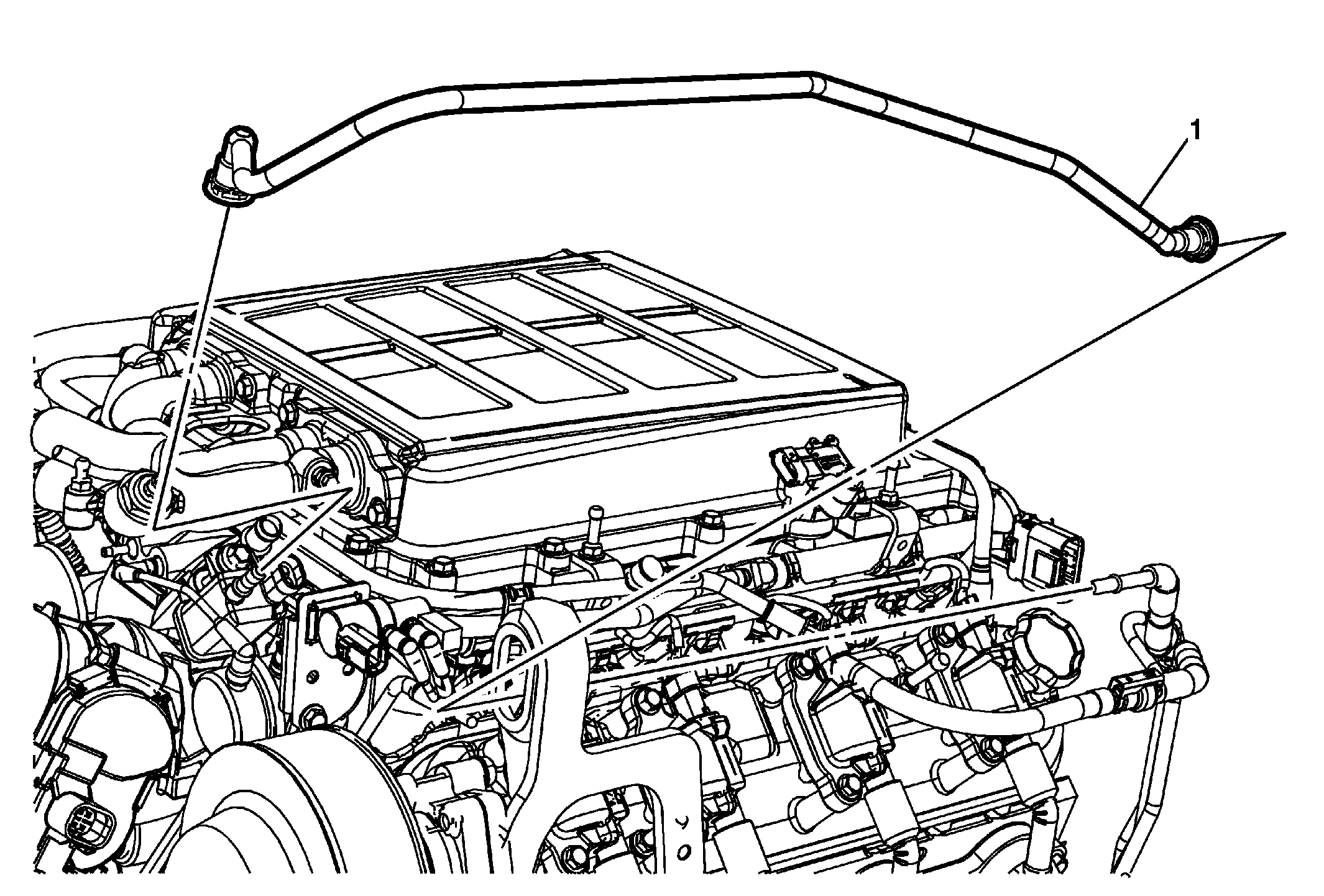

Fig 1: Evaporative Emission Canister Purge Tube (LS9)
GM2157363Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the upper intake cover. Refer to Upper Intake Manifold Sight Shield Replacement (LS9) or Upper Intake Manifold Sight Shield Replacement (w/o LS9)
1 Evaperative Emission Canister Purge Tube

Procedure

  1. Disconnect the EVAP canister purge tube from the purge valve.
  2. Disconnect the EVAP canister purge tube from the EVAP canister purge Pipe.
