X433 Instrument Panel Harness to Folding Top Harness (CM7)
 Courtesy of GENERAL MOTORS CORP.
|
 Courtesy of GENERAL MOTORS CORP.
|

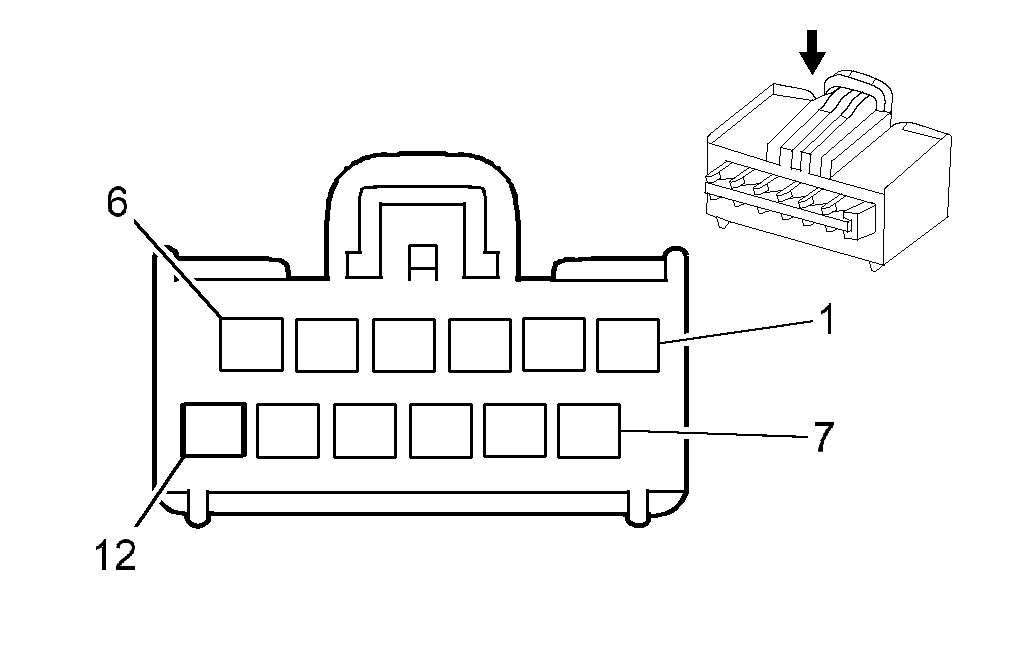

Connector Part Information
- OEM: E-4402-001
- Service: 89047203
- Description: 12-Way F (BK)
|

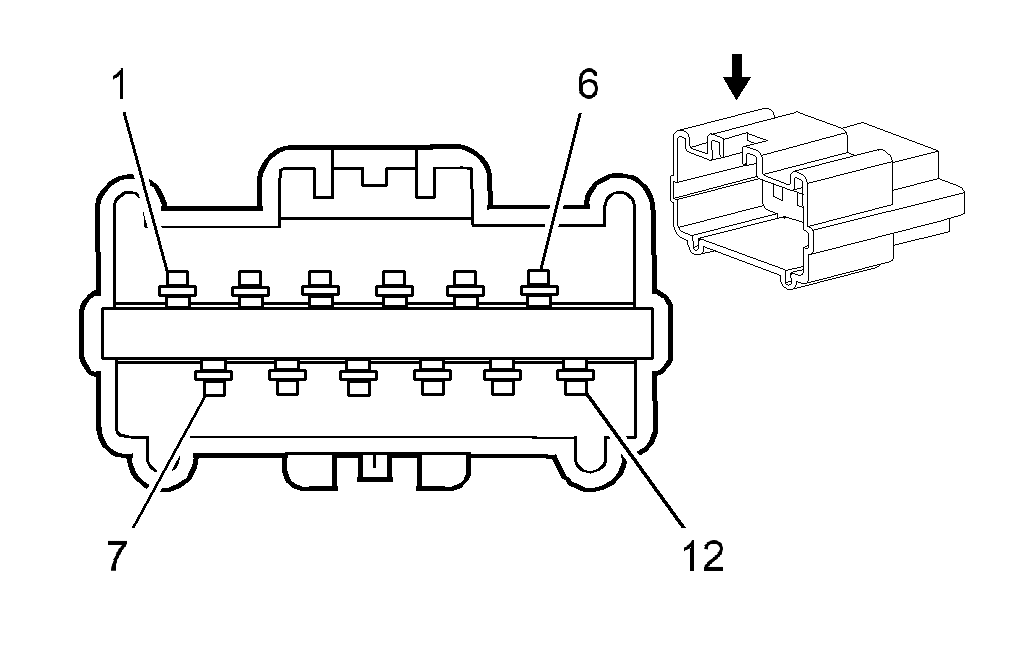

Connector Part Information
- OEM: E-4411-003
- Service: See Catalog
- Description: 12-Way M (BK)
|
Terminal Part Information
- Pins: 1-4, 6, 9
- Terminal/Tray: 7116-4110-02/9
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12094430/J-35616-4A (PU)
- Pins: 10
- Terminal/Tray: 7116-4112-02/9
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: 12094430/J-35616-35 (VT)
|
Terminal Part Information
- Terminal/Tray: 7114-4110-02
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
X433 Instrument Panel Harness to Folding Top Harness (CM7)
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PU |
5513 |
Class 2 Serial Data |
1 |
0.35 PU |
5513 |
Class 2 Serial Data |
| 2 |
0.35 PU |
163 |
Folding Top Control Switch Open Signal |
2 |
0.35 PU |
163 |
Folding Top Control Switch Open Signal |
| 3 |
0.35 GY |
162 |
Folding Top Control Switch Close Signal |
3 |
0.35 GY |
162 |
Folding Top Control Switch Close Signal |
| 4 |
0.35 D-GN |
1399 |
Accessory Voltage |
4 |
0.35 D-GN |
1399 |
Accessory Voltage |
| 5 |
- |
- |
Not Used |
5 |
0.35 GY/BK |
896 |
Folding Top Connected Signal |
| 6 |
0.35 L-GN |
5934 |
Folding Top Cover Open Switch Signal |
6 |
0.35 L-GN |
5934 |
Folding Top Cover Open Switch Signal |
| 7-8 |
- |
- |
Not Used |
7-8 |
- |
- |
Not Used |
| 9 |
0.35 BN |
5745 |
Luggage Barrier Switch Signal |
9 |
0.35 BN |
5745 |
Luggage Barrier Switch Signal |
| 10 |
1 BK |
750 |
Ground |
10 |
1 BK |
750 |
Ground |
| 11-12 |
- |
- |
Not Used |
11-12 |
- |
- |
Not Used |
