X285 Cellular Phone Jumper (UL2)

GM647976Courtesy of GENERAL MOTORS CORP.

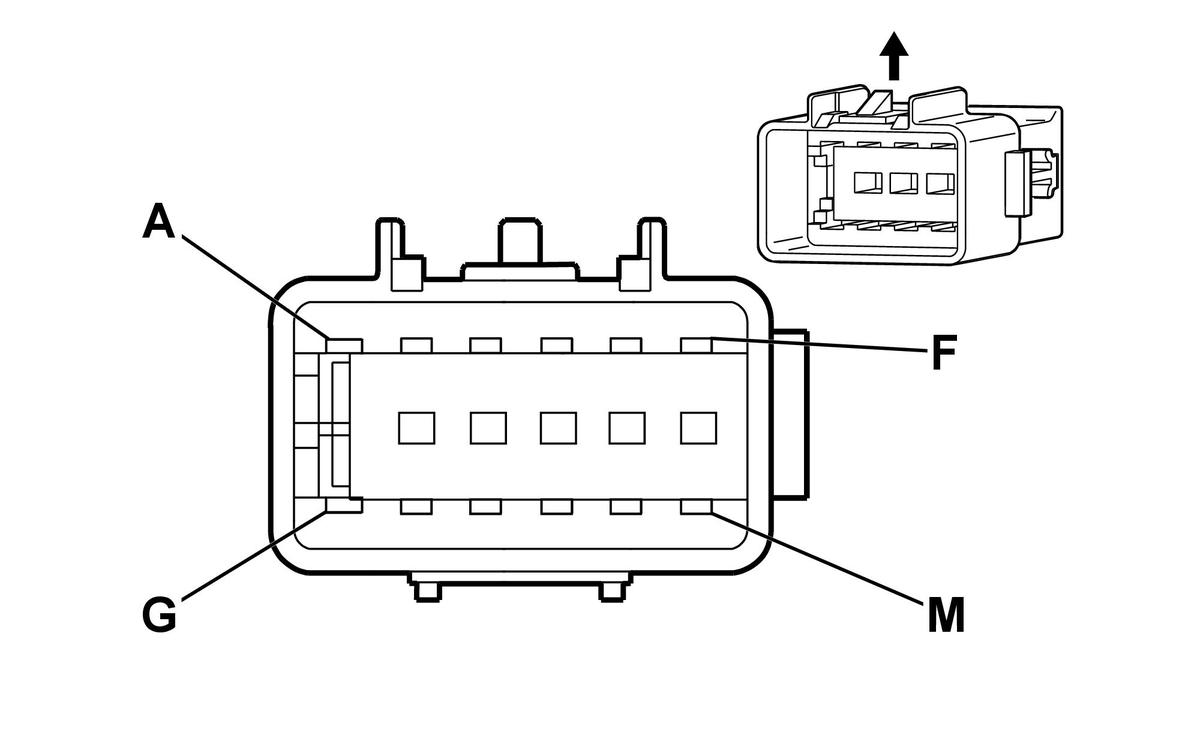

GM847286Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332161
  • Service: 15306416
  • Description: 12-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332166
  • Service: 88953332
  • Description: 12-Way M GT 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal/Tray: Replace Jumper Cap
  • Core/Insulation Crimp: Replace Jumper Cap
  • Release Tool/Test Probe: Replace Jumper Cap
X285 Cellular Phone Jumper (UL2)

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.5 RD/WH 140 Battery Positive Voltage A - - Not Used
B 0.35 PK 1139 Ignition Voltage B - -
C 1.0 PK 5149 Voice Recognition Audio Signal C 0.35 PK 5149 Voice Recognition Audio Signal
D 0.35 BK 9705 Drain Wire D 0.35 BK 9705 Drain Wire
E 0.5 BK/WH 651 Ground E - - Not Used
F 0.35 PK 5149 Voice Recognition Audio Signal F 0.35 PK 5149 Voice Recognition Audio Signal
G 0.35 BK 9705 Drain Wire G 0.35 BK 9705 Drain Wire
H 0.35 OG/BK 1406 Left Audio Signal (+) H - - Not Used
J 0.35 L-BU 1405 Audio Common Signal J - -
K 0.35 OG 5748 Radio Mute Signal K - -
L 0.35 BK 9012 Drain Wire L - -
M - - Not Used M - -
