Ground Distribution Wiring Schematics

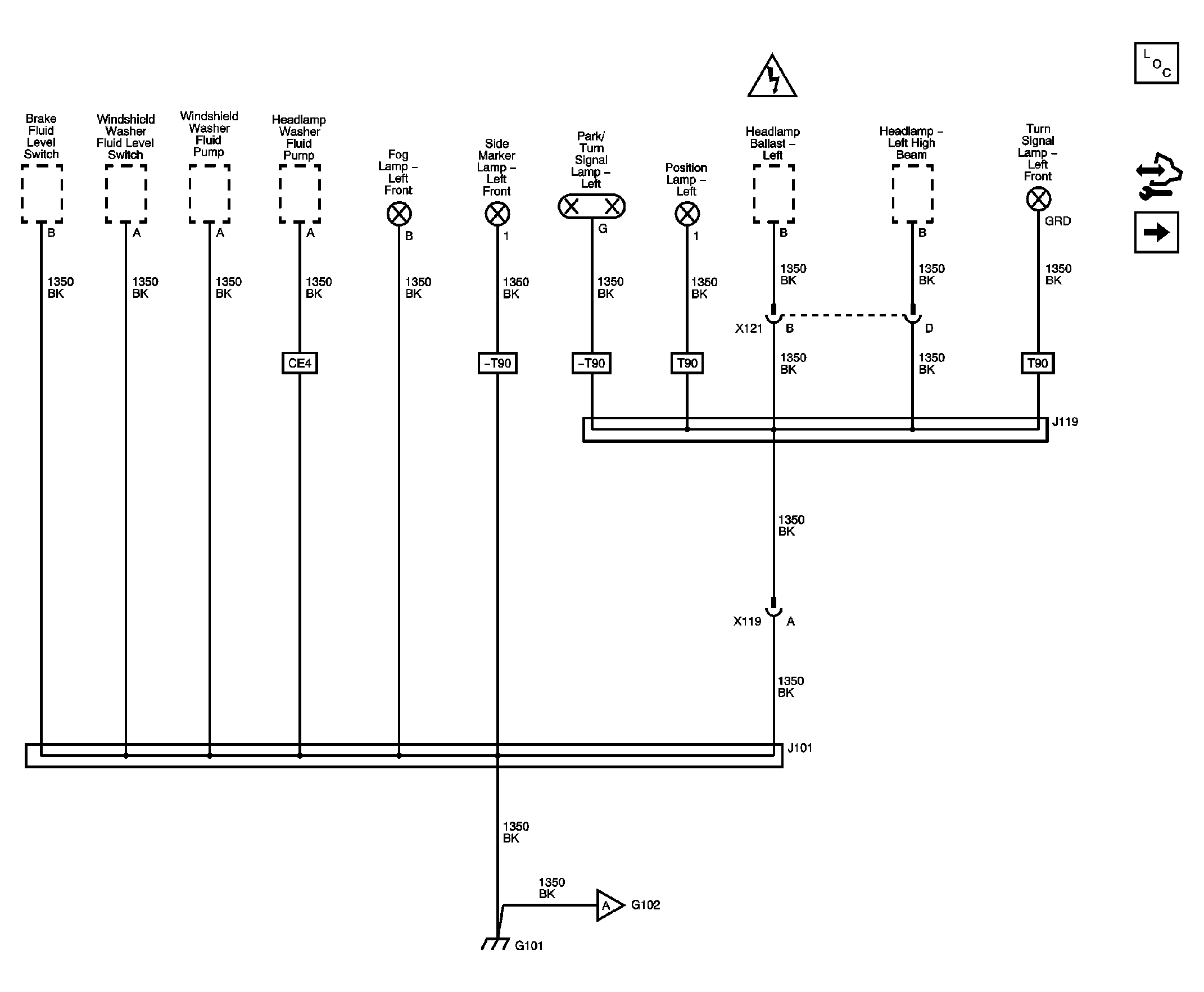

Fig 1: G101 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

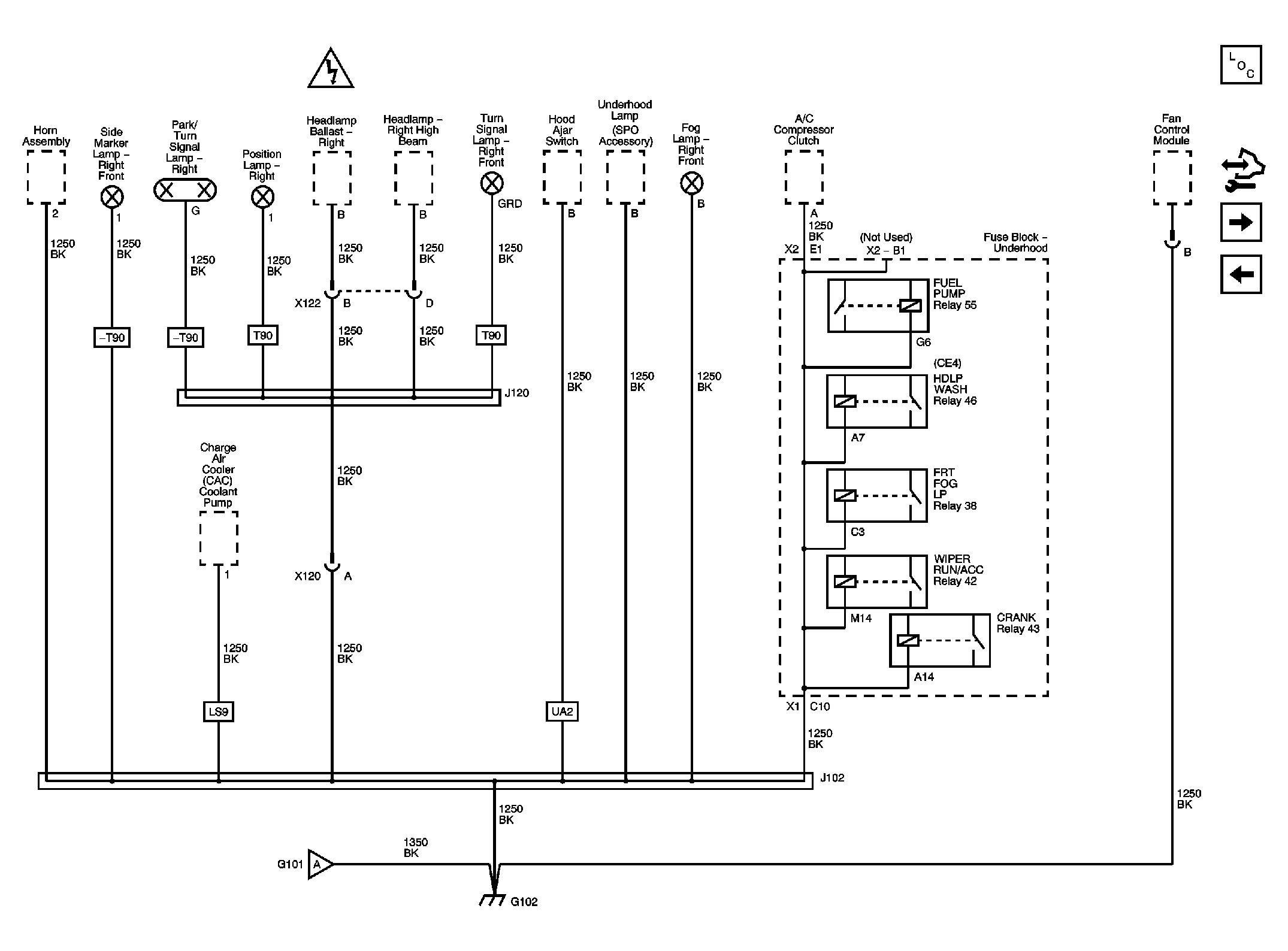

Fig 2: G102 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

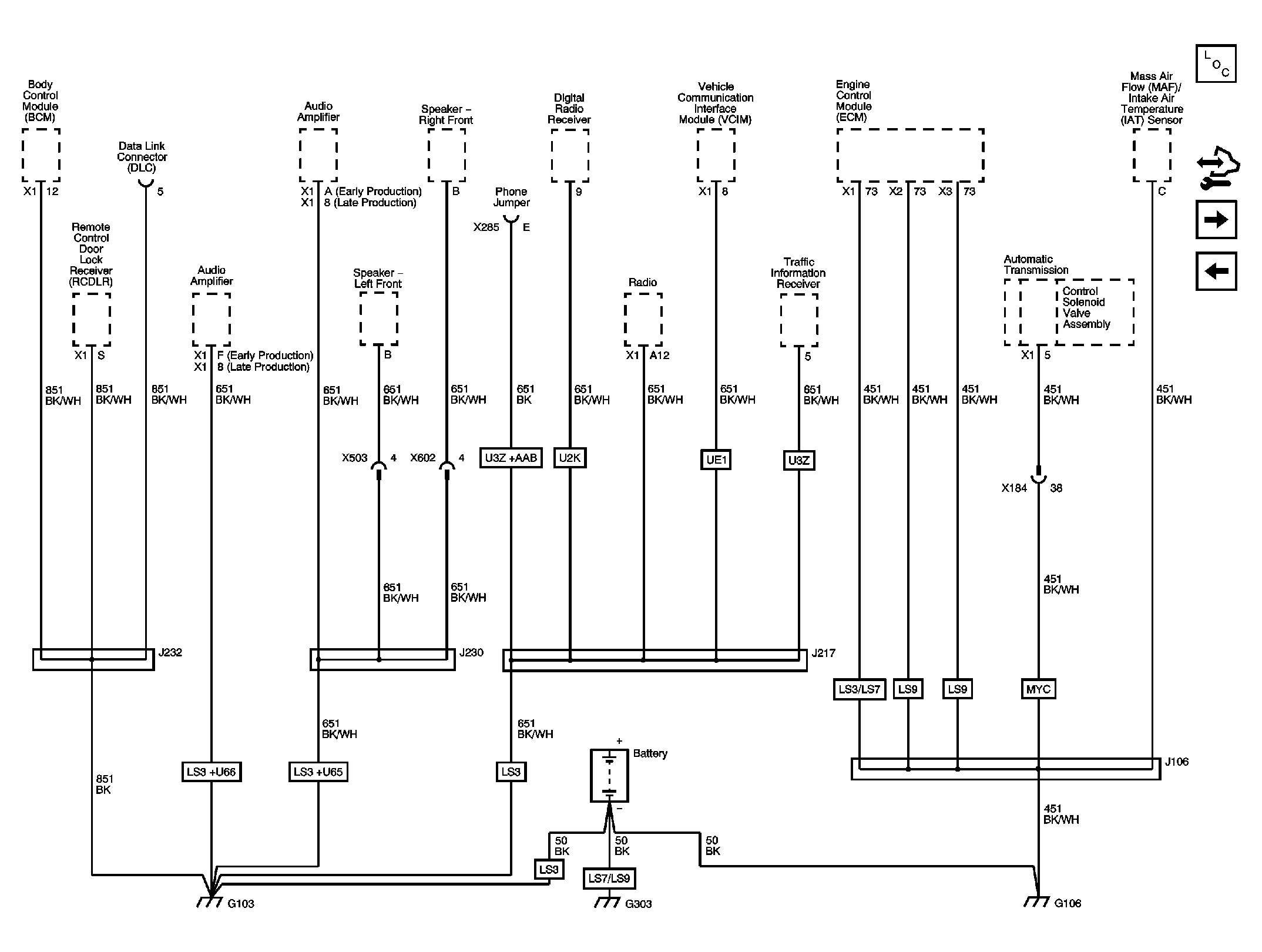

Fig 3: G103, G106, and G303 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

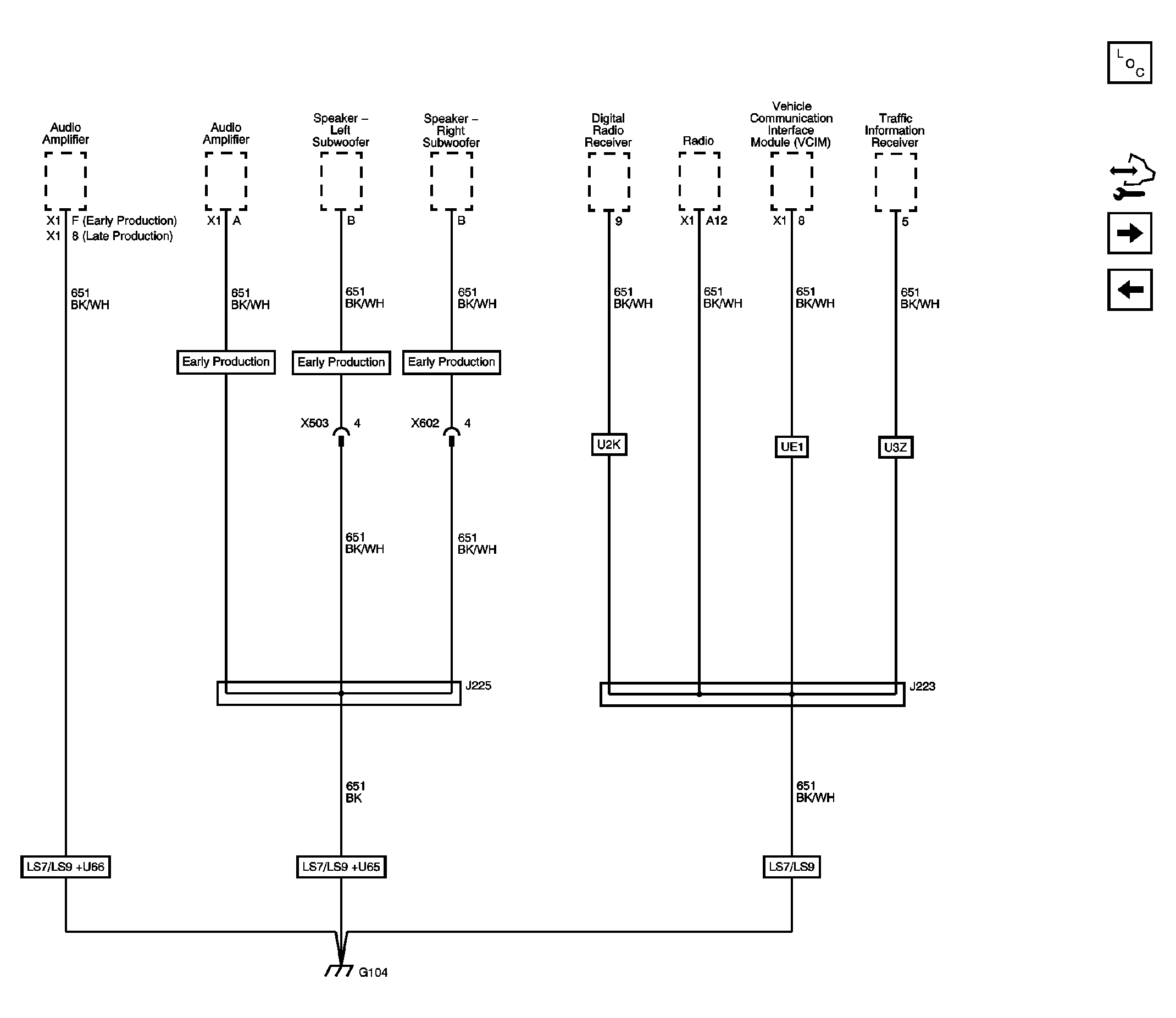

Fig 4: G104 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: G105 and G107 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

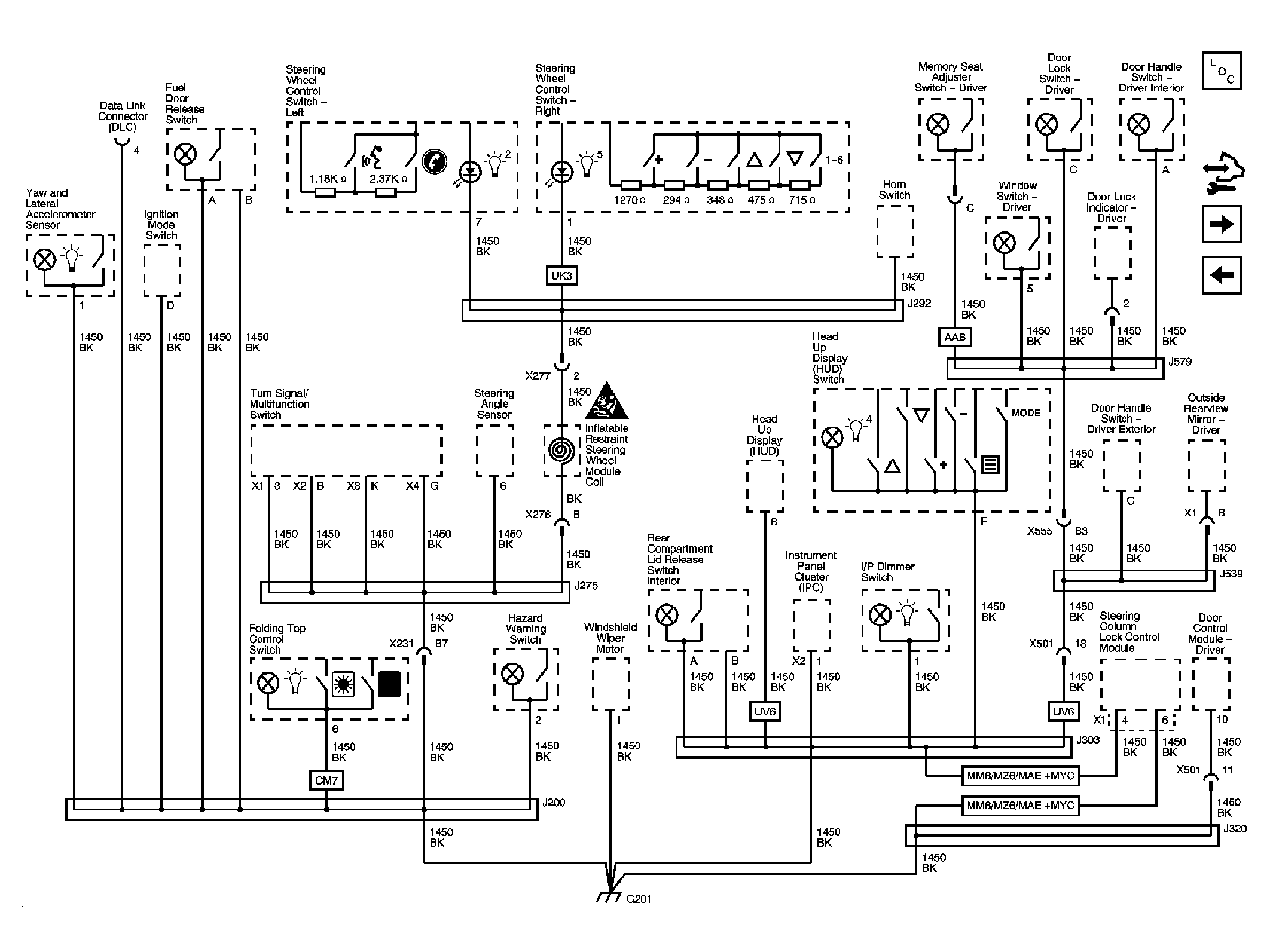

Fig 6: G201 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

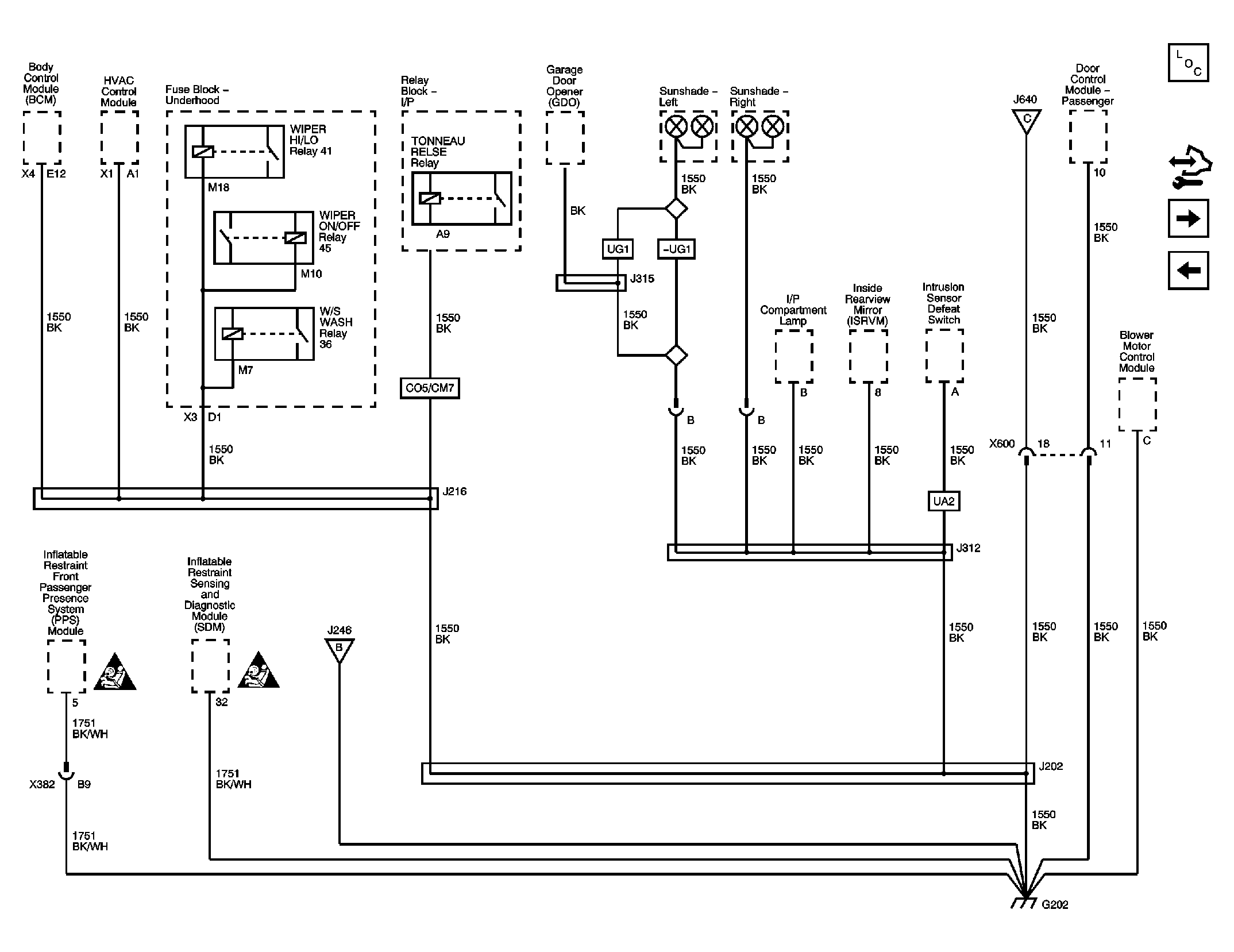

Fig 7: G202 (1 of 2) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

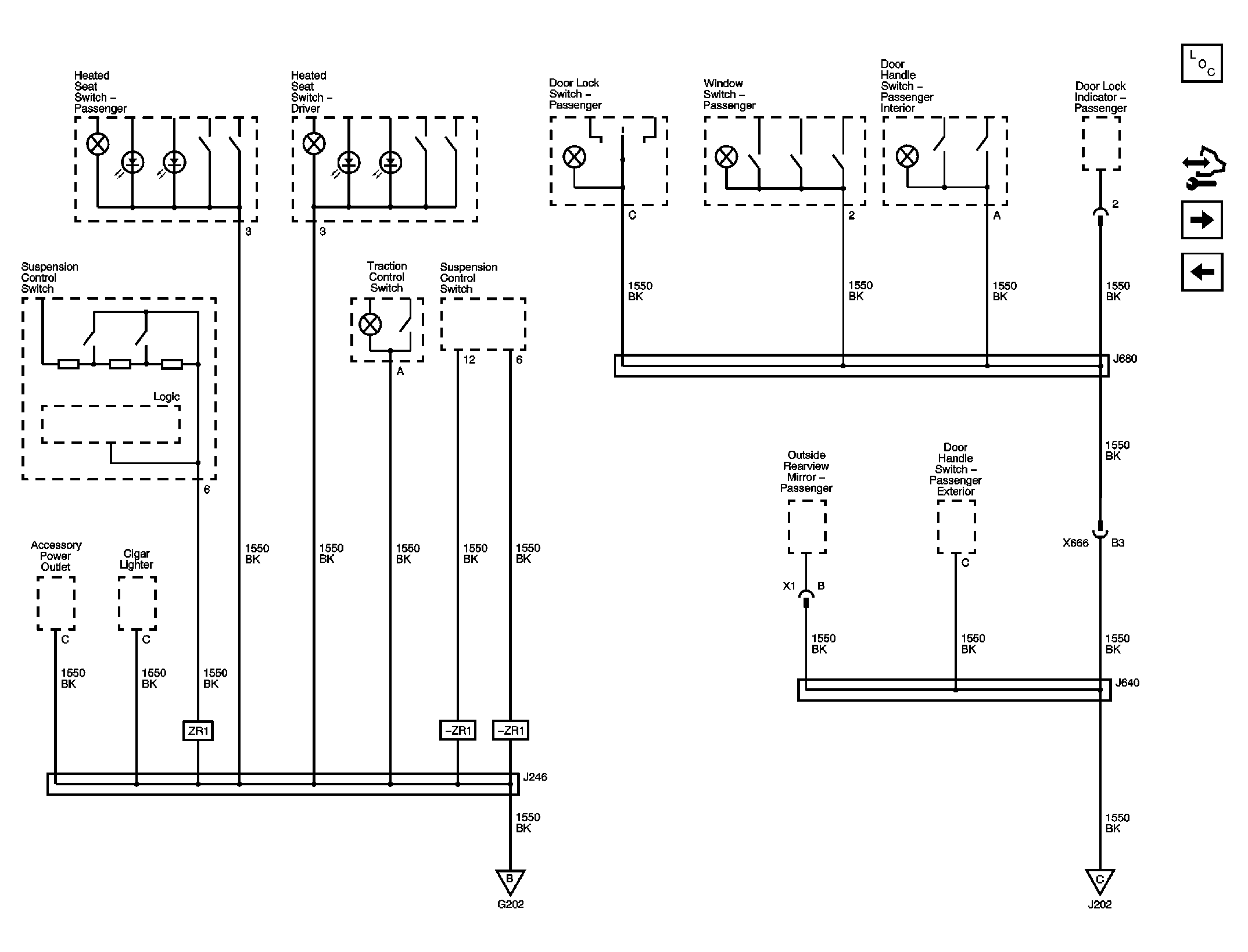

Fig 8: G202 (2 of 2) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

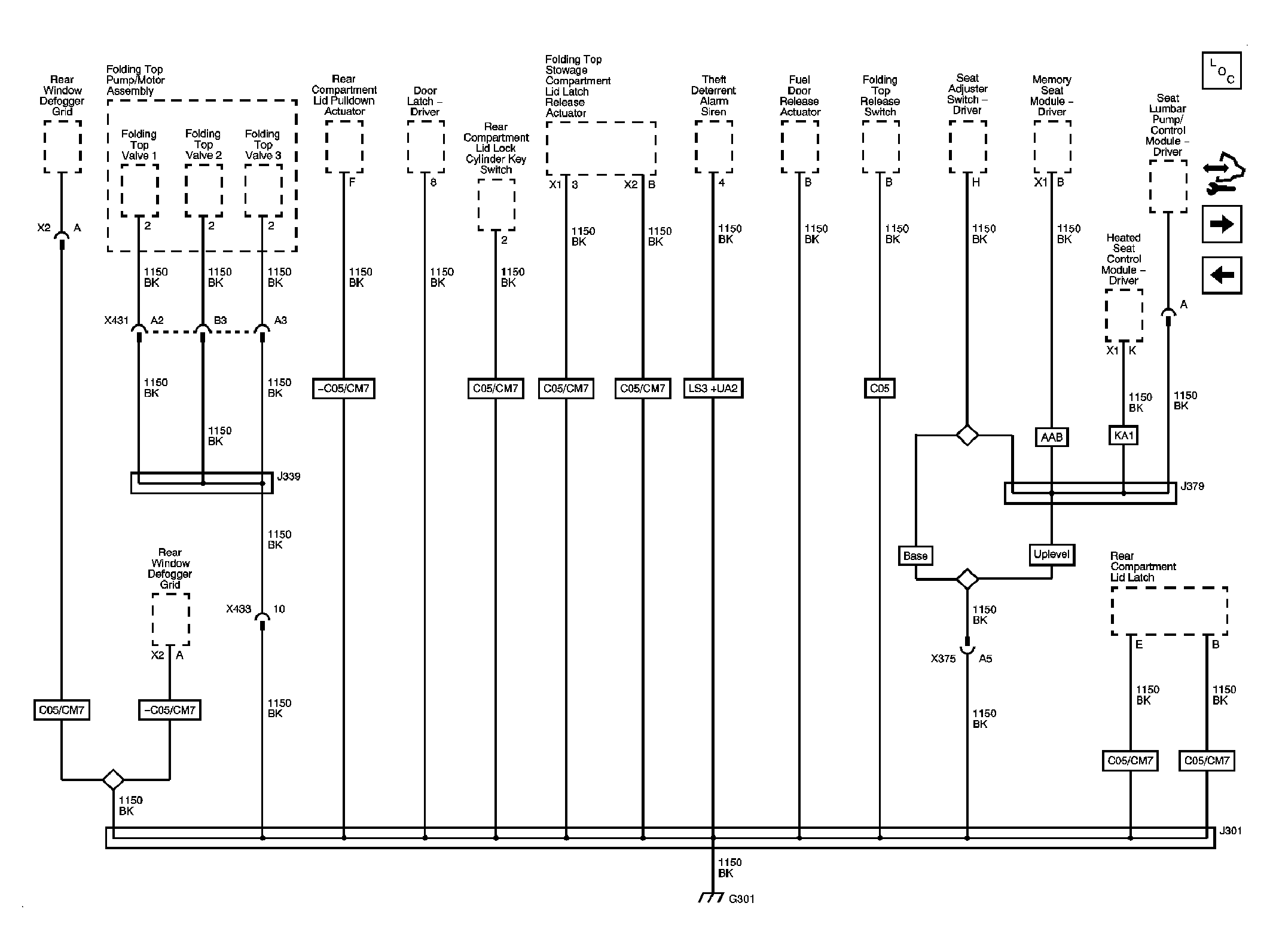

Fig 9: G301 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

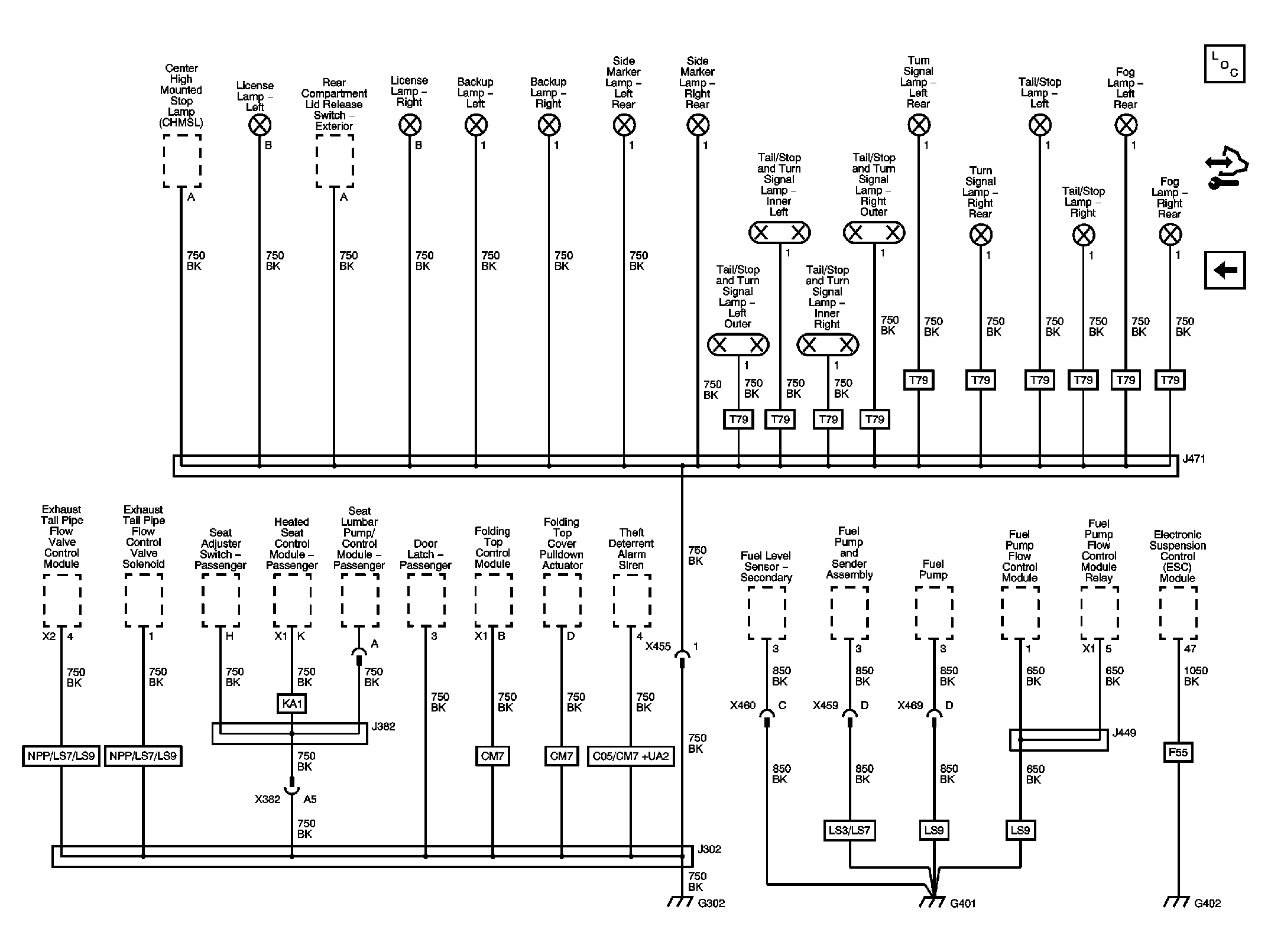

Fig 10: G302, G401, and G402 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
