Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LS9)

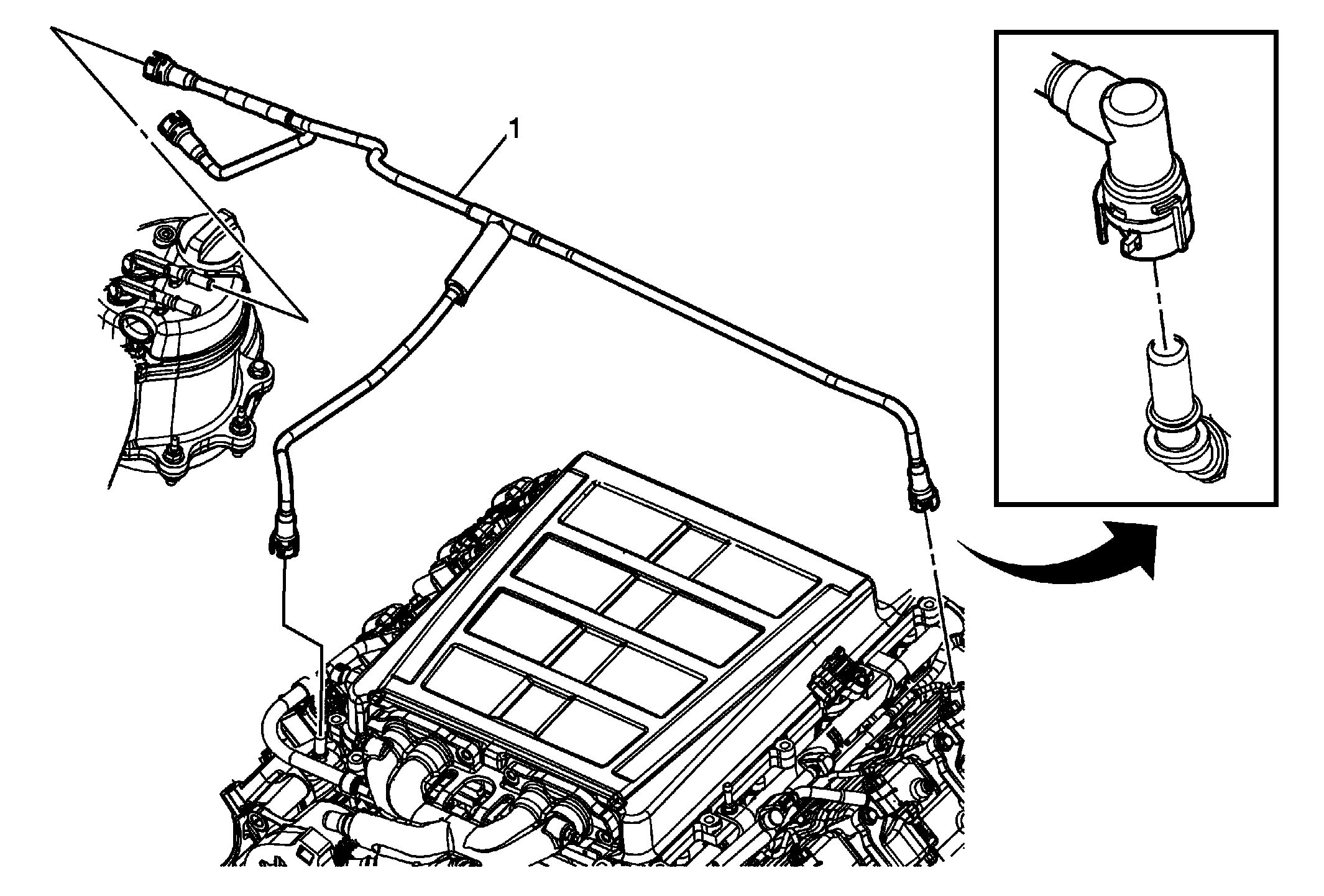

Fig 1: Positive Crankcase Ventilation Hose/Pipe/Tube (LS9)
GM2183480Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (LS9)  or Upper Intake Manifold Sight Shield Replacement (w/o LS9) .
1 Positive Crankcase Ventilation Hose/Pipe/Tube

Procedure

  1. Disconnect the electrical connectors, as needed.
  2. Transfer components as necessary.
