Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LS7)

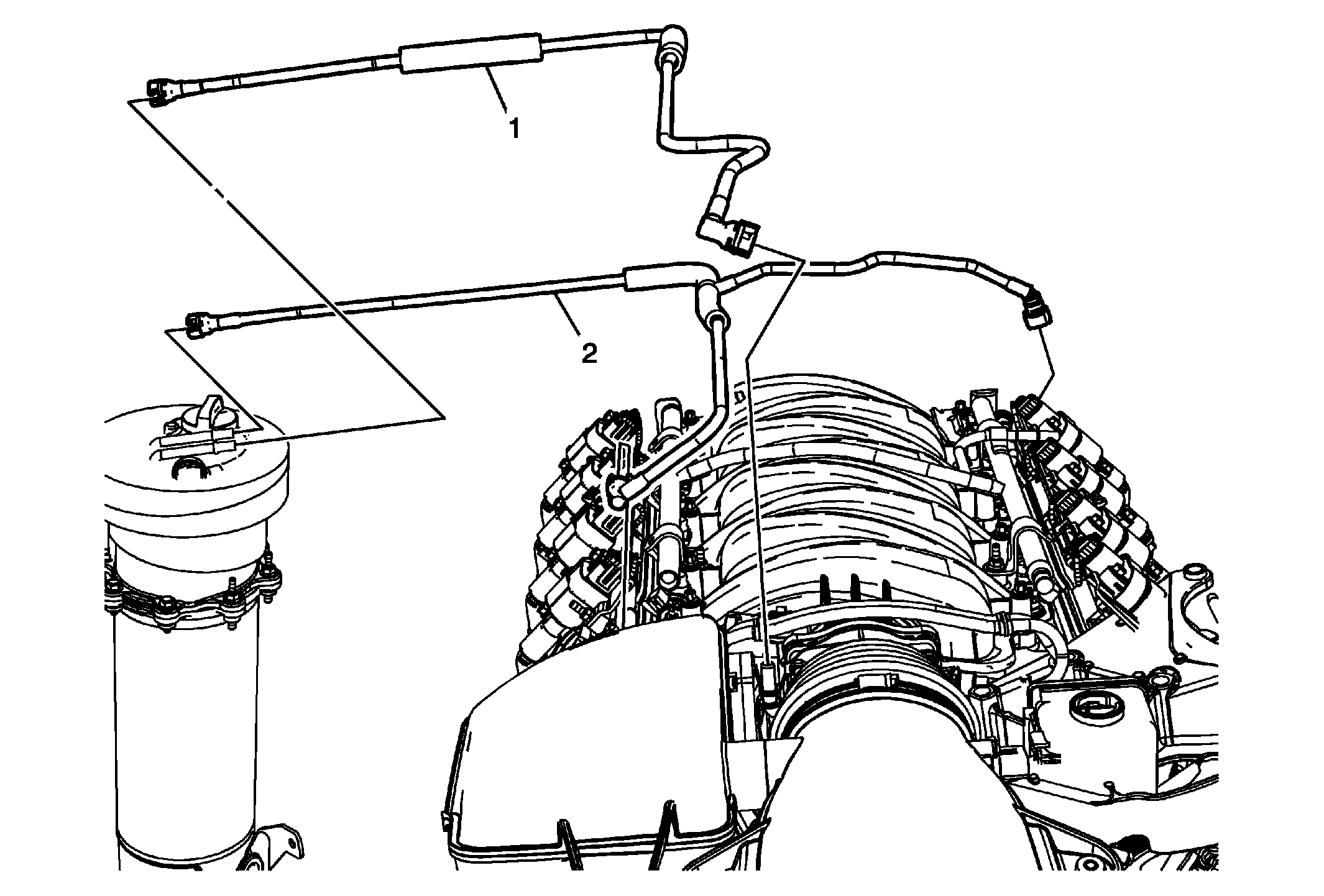

Fig 1: Positive Crankcase Ventilation Hose/Pipe/Tube (LS7)
GM1968954Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the intake manifold sight shields. Refer to Upper Intake Manifold Sight Shield Replacement (LS9)  or Upper Intake Manifold Sight Shield Replacement (w/o LS9) .
1 Positive Crankcase Ventilation (PCV) Tube-Air Intake to Oil Tank
2 PCV Tube-Rocker Covers to Oil Tank
