Charge Air Cooler Replacement

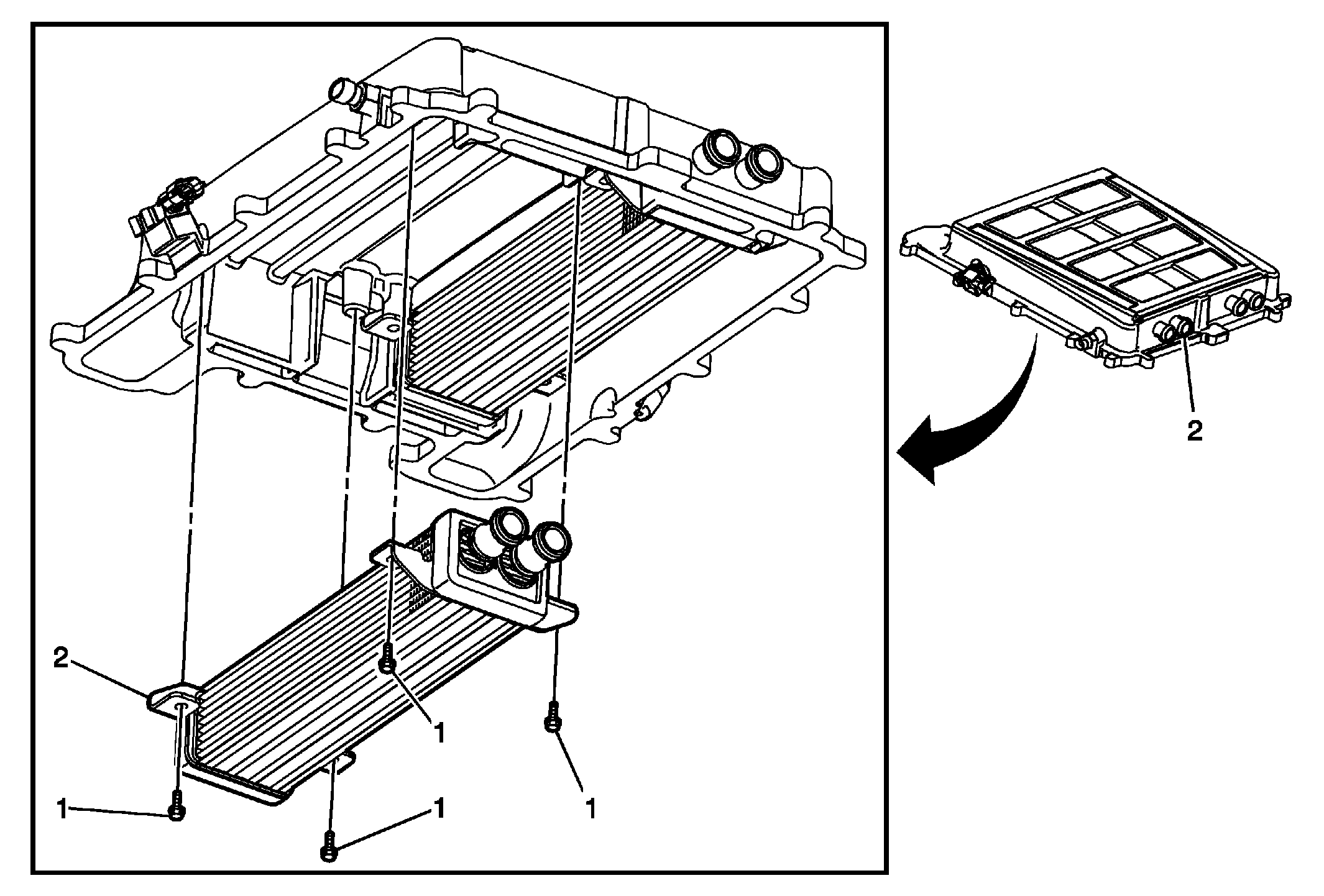

Fig 1: View Of Charge Air Cooler
GM2111451Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the charge air cooler cover. Refer to Charge Air Cooler Cover Replacement (LS9) .
1 Charge Air Cooler Fastener (Qty: 4)
CAUTION: Refer to Component Fastener Tightening Caution .

Tighten:  10 N.m (89 lb in)
2 Charge Air Cooler
Procedure:
Transfer components as necessary.
