Piston and Connecting Rod Disassemble (7.0L)

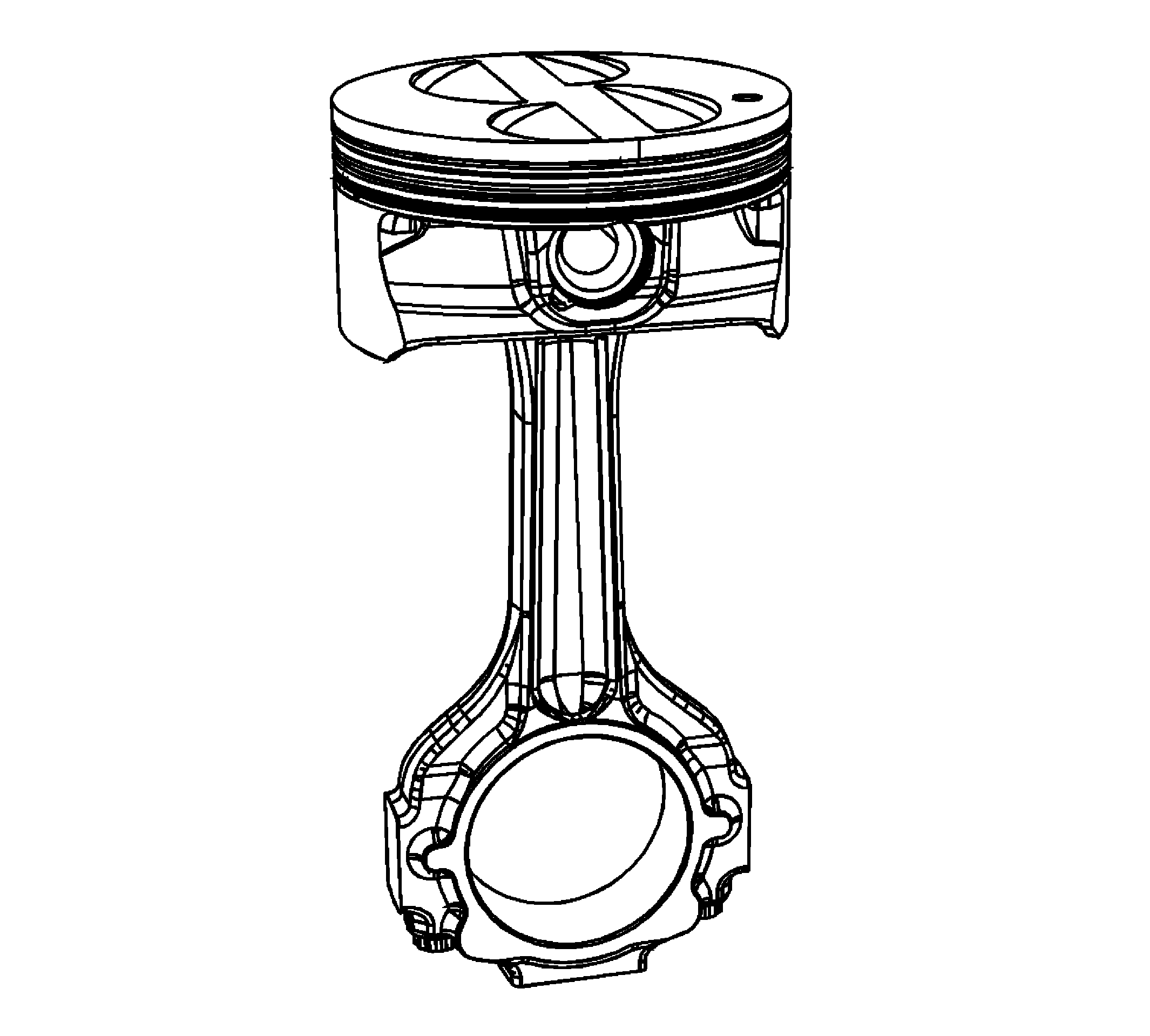

Fig 1: Piston Assembly
GM1777116Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Do not attempt to disassemble or assemble the piston, pin, and connecting rod. The piston, pin, and connecting rod should be serviced as an assembly.
