Charge Air Bypass Regulator Solenoid Valve Replacement

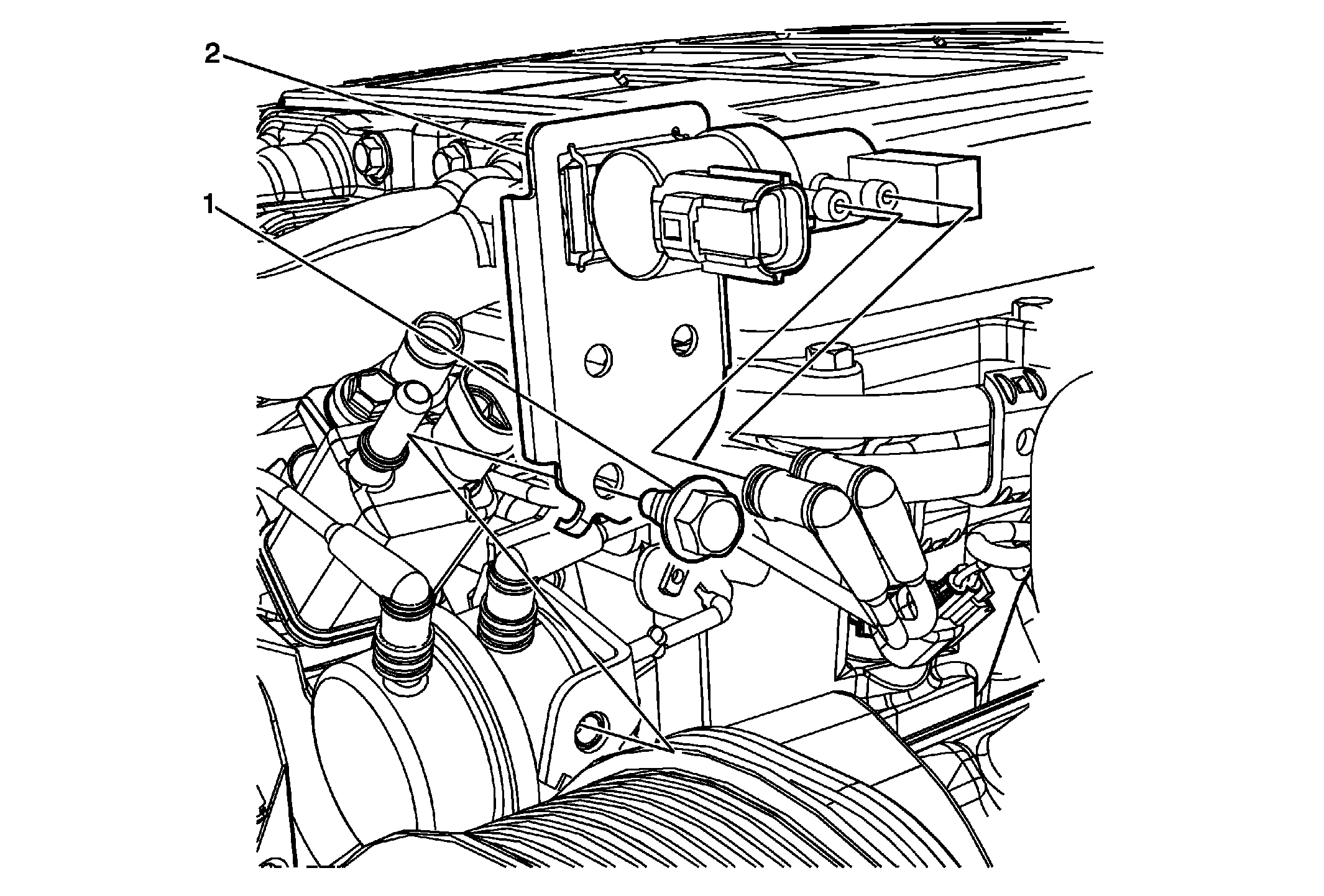

Fig 1: View Of Charge Air Bypass Regulator Solenoid Valve
GM2159705Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the upper intake cover. Refer to Upper Intake Manifold Sight Shield Replacement (LS9) or Upper Intake Manifold Sight Shield Replacement (w/o LS9) .
1 Charge Air Bypass Regulator Solenoid Fastener
CAUTION: Refer to Fastener Caution .

Tighten:  10 N.m (89 lb in)
2 Charge Air Bypass Regulator Solenoid

Procedure

  1. Disconnect the harness connector.
  2. Disconnect the vacuum tubes from the charge air bypass regulator solenoid.
