Removal Procedure

  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (6.2L)  or Air Cleaner Assembly Replacement (7.0L)  or Air Cleaner Assembly Replacement (LS9) .

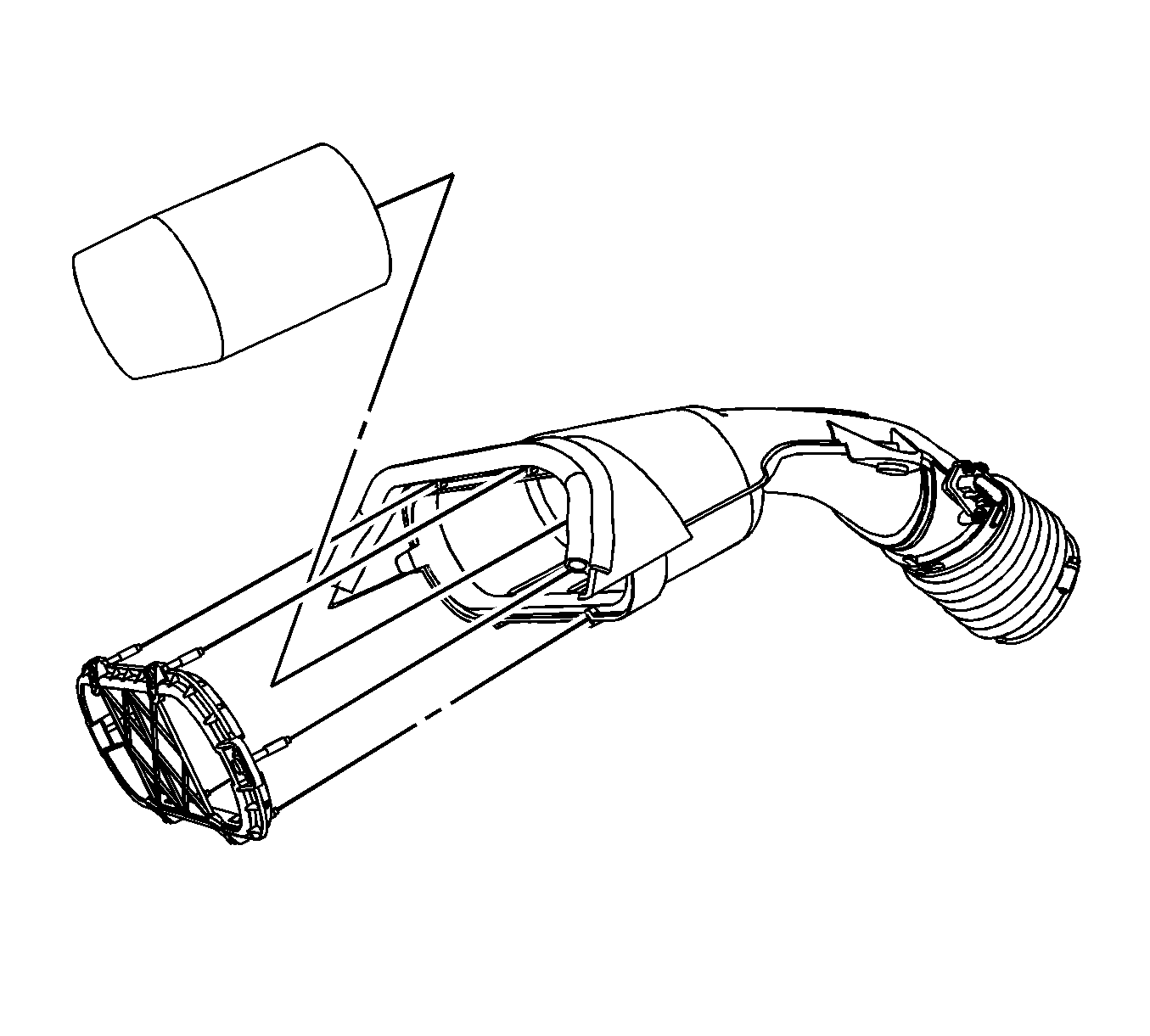

    2. Fig 1: Locating Air Filter
    GM1672564Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts holding the air filter retainer to the air cleaner assembly.
  3. Remove the air filter.
