Home >> Chevrolet >> 2011 >> Corvette V8-6.2L >> Repair and Diagnosis >> Wiper and Washer Systems >> Washer Fluid Level Switch >> Diagrams

Washer Fluid Level Switch: Diagrams

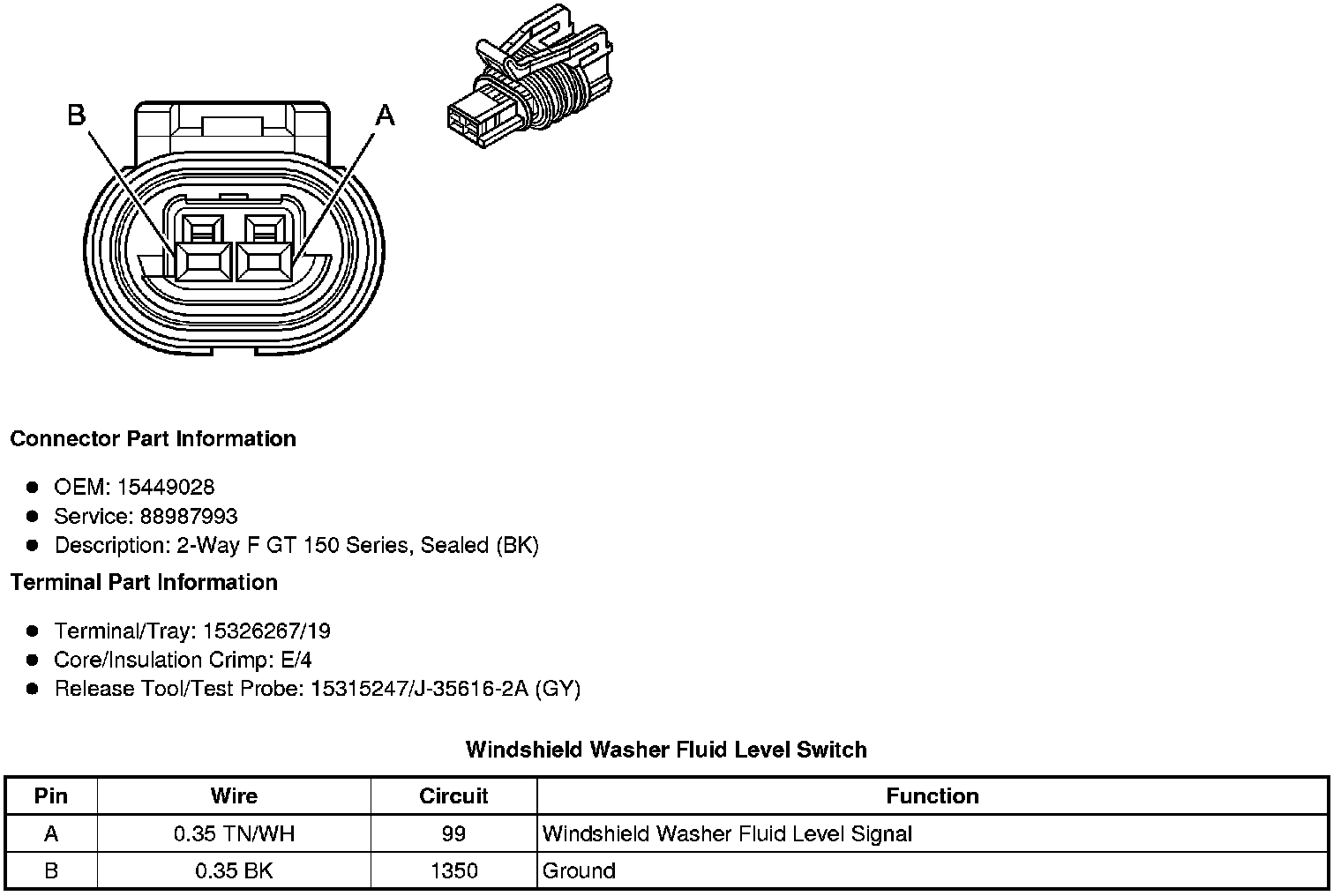

Component Connector End Views

Windshield Washer Fluid Level Switch
