Shift Solenoid: Locations

Powertrain Component Views

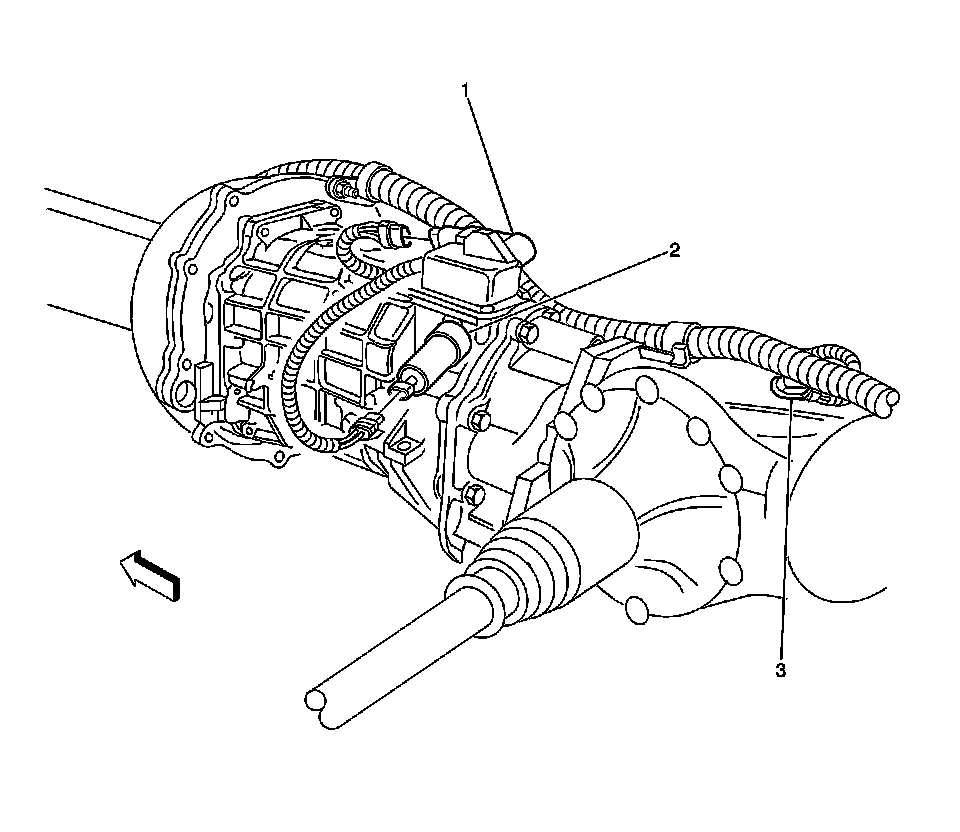

Manual Transmission Components - Left Side (MN6)

1 - Reverse Lockout Solenoid
2 - Skip Shift Solenoid
3 - Vehicle Speed Sensor (VSS)
