Shift Solenoid: Locations




Powertrain Component Views

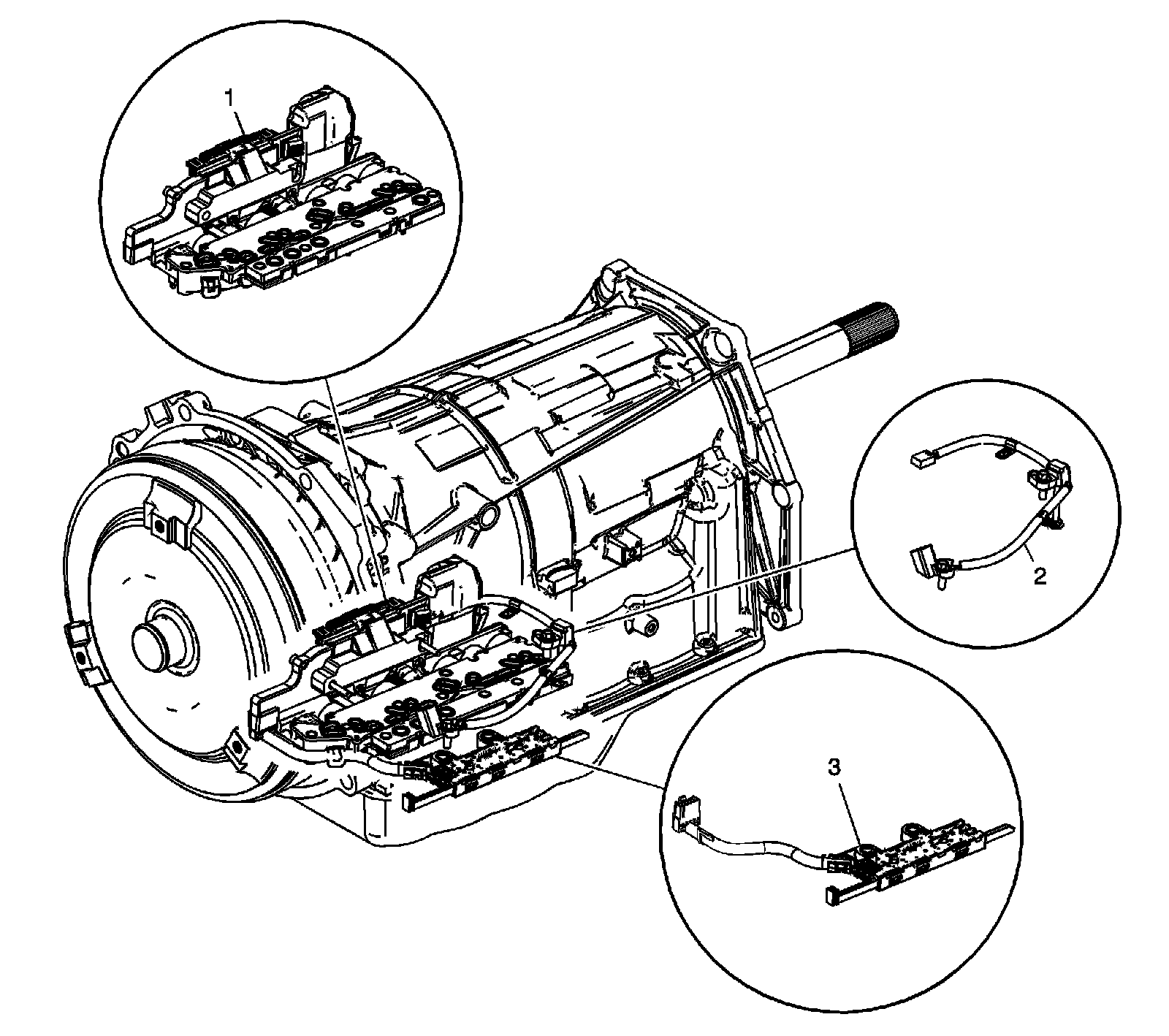

Automatic Transmission Internal Components (MYC)




1 - Control Solenoid Valve Assembly
2 - Automatic Transmission Input Shaft Speed (ISS) Sensor and Output Shaft Speed (OSS) Sensor Harness
3 - Automatic Transmission Internal Mode Switch (IMS) Harness
