Ride Height Sensor: Diagrams




Component Connector End Views

Suspension Position Sensor - Left Front (FE2)

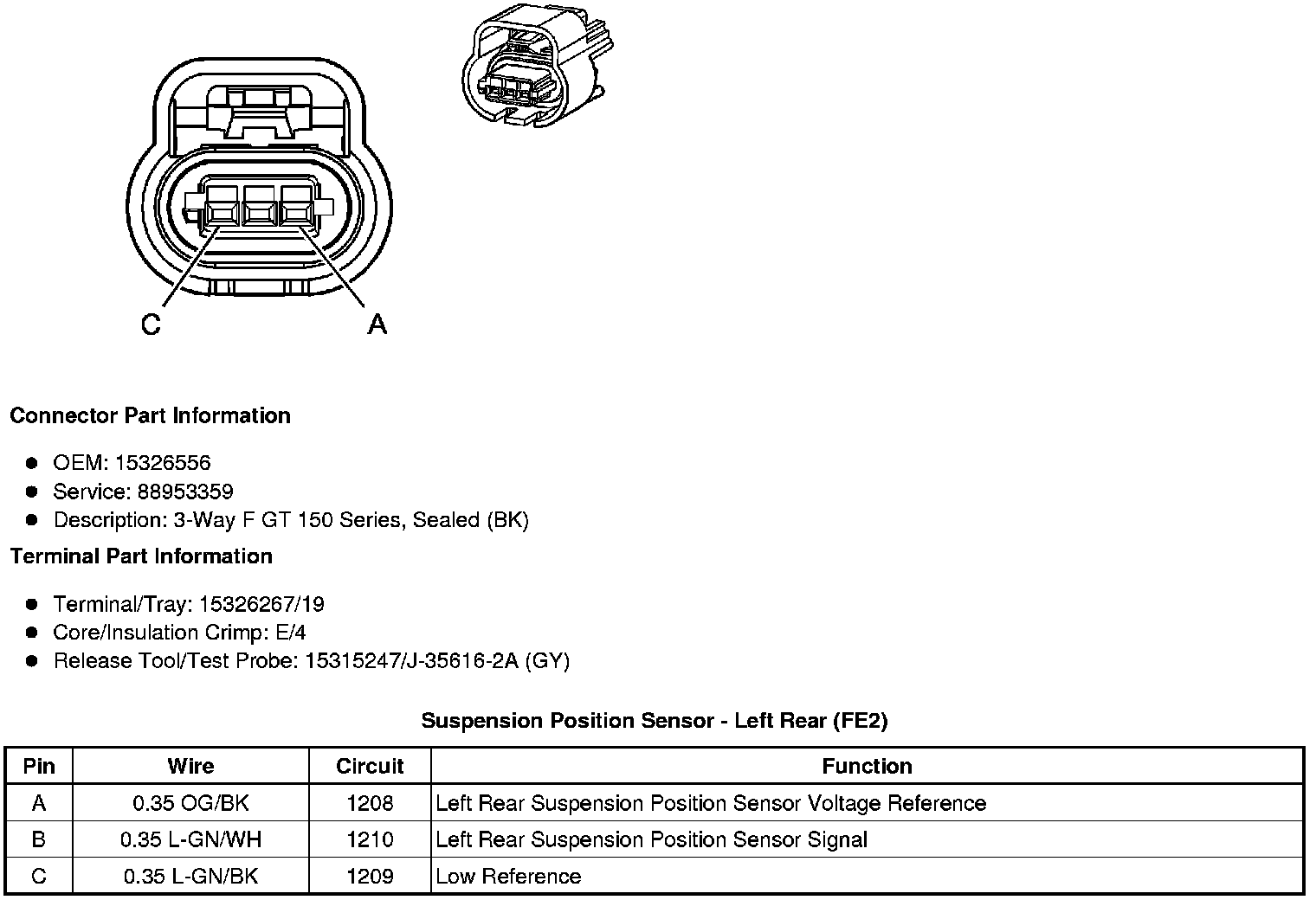

Suspension Position Sensor - Left Rear (FE2)

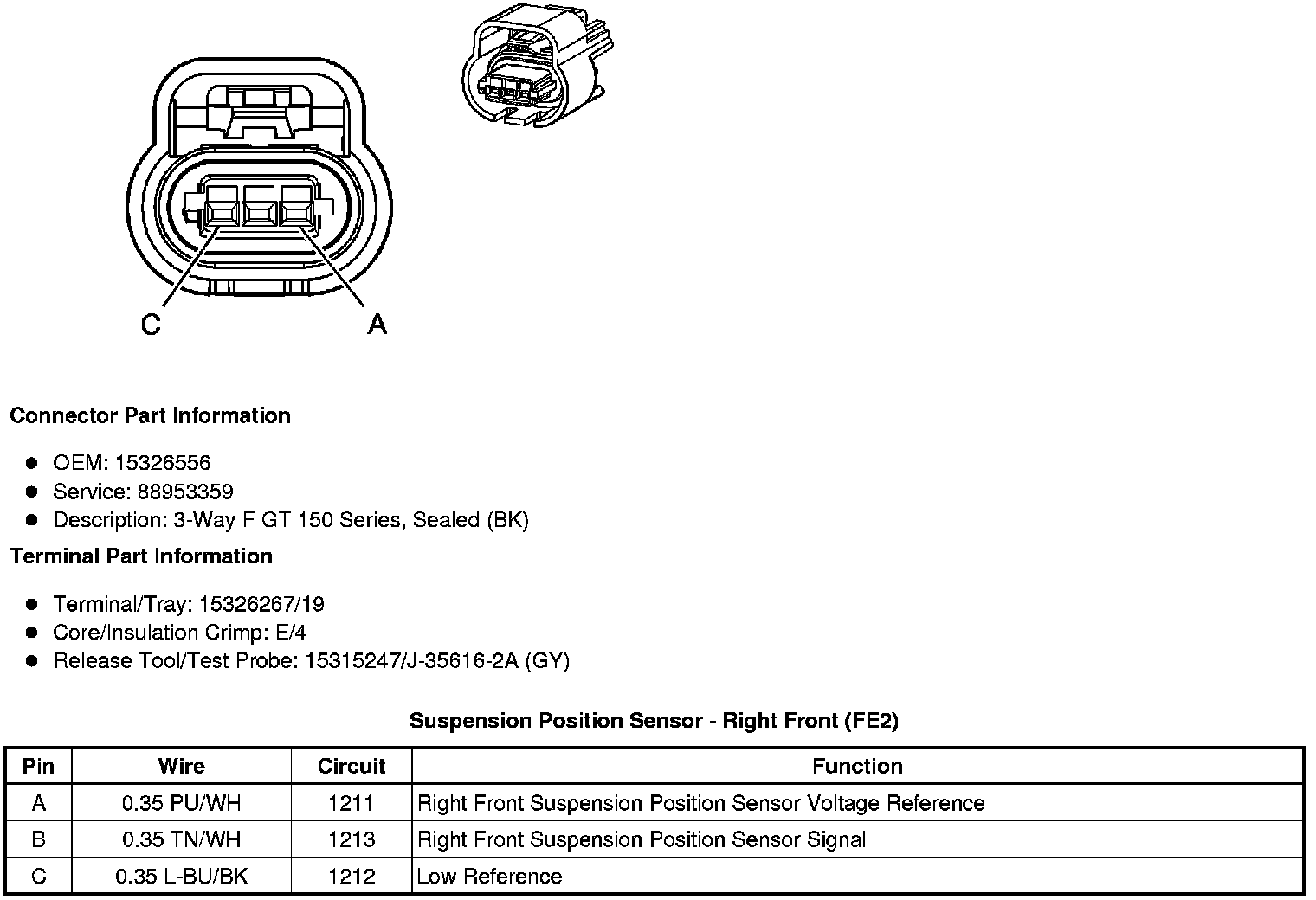

Suspension Position Sensor - Right Front (FE2)

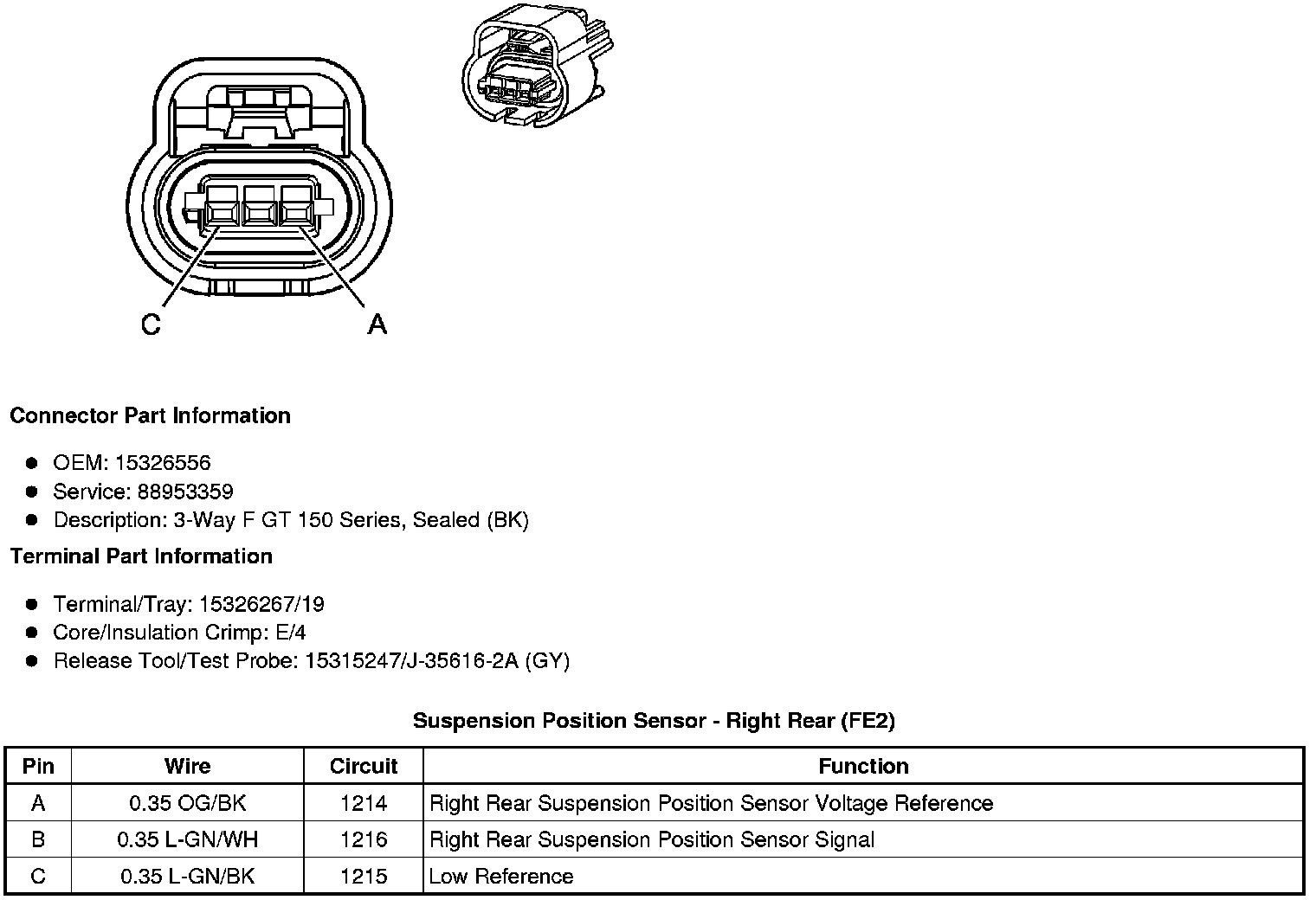

Suspension Position Sensor - Right Rear (FE2)
