Home >> Chevrolet >> 2011 >> Corvette V8-6.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Cabin Temperature Sensor / Switch >> Diagrams

Cabin Temperature Sensor / Switch: Diagrams




Component Connector End Views

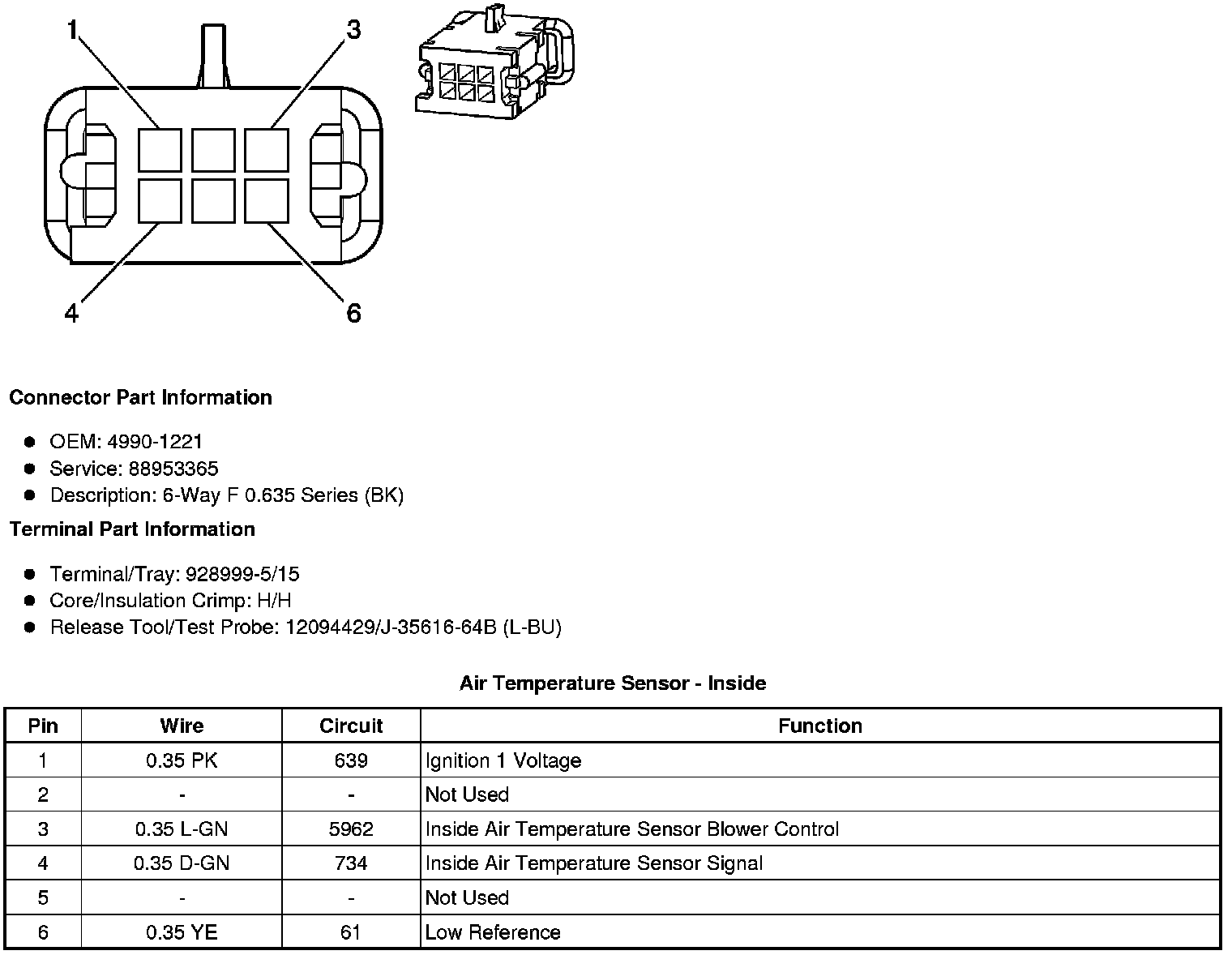

Air Temperature Sensor - Inside





Air Temperature Sensor - Lower Left





Air Temperature Sensor - Lower Right





Air Temperature Sensor - Upper Left





Air Temperature Sensor - Upper Right
