Seat Temperature Switch: Diagrams




Component Connector End Views

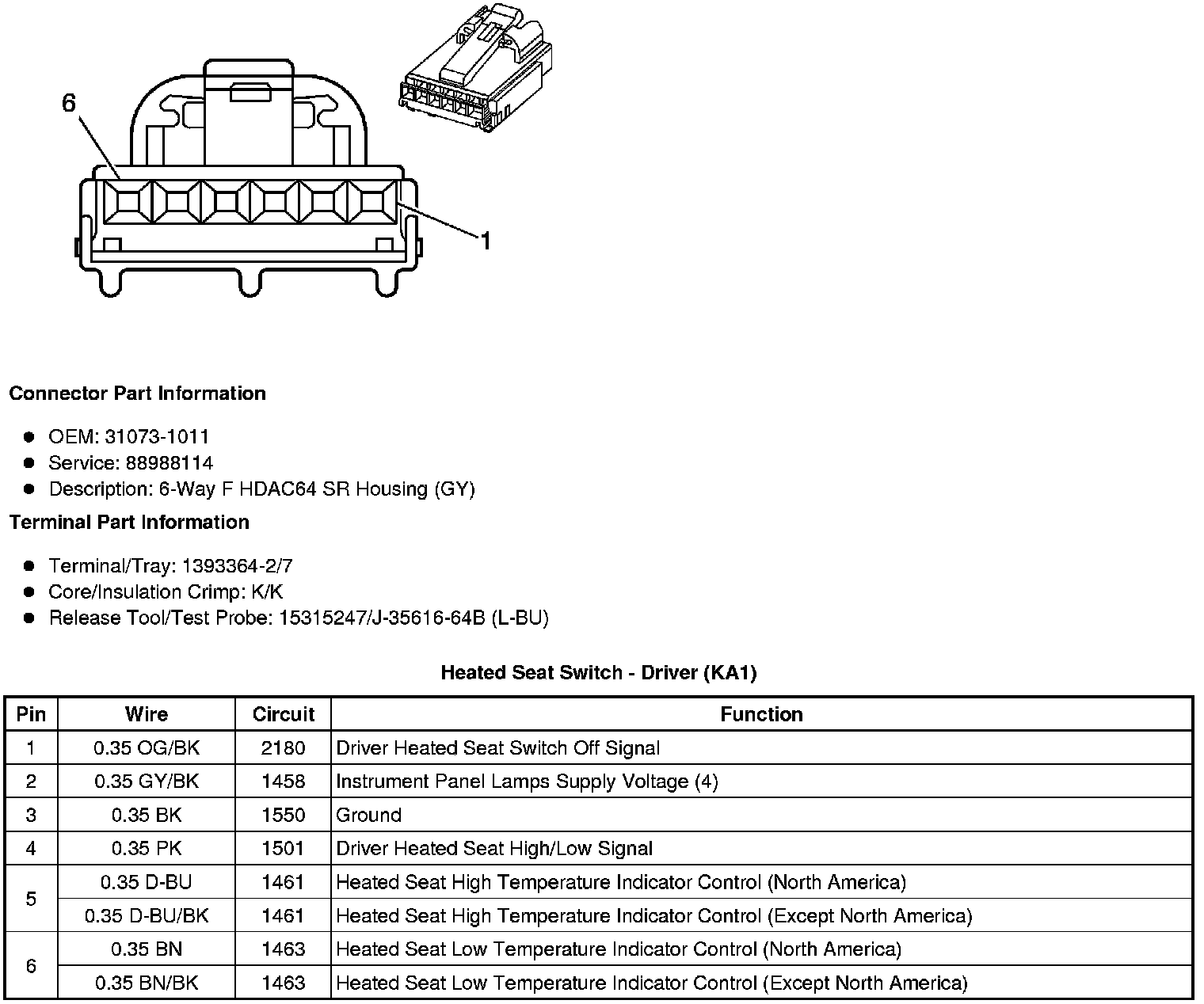

Heated Seat Switch - Driver (KA1)

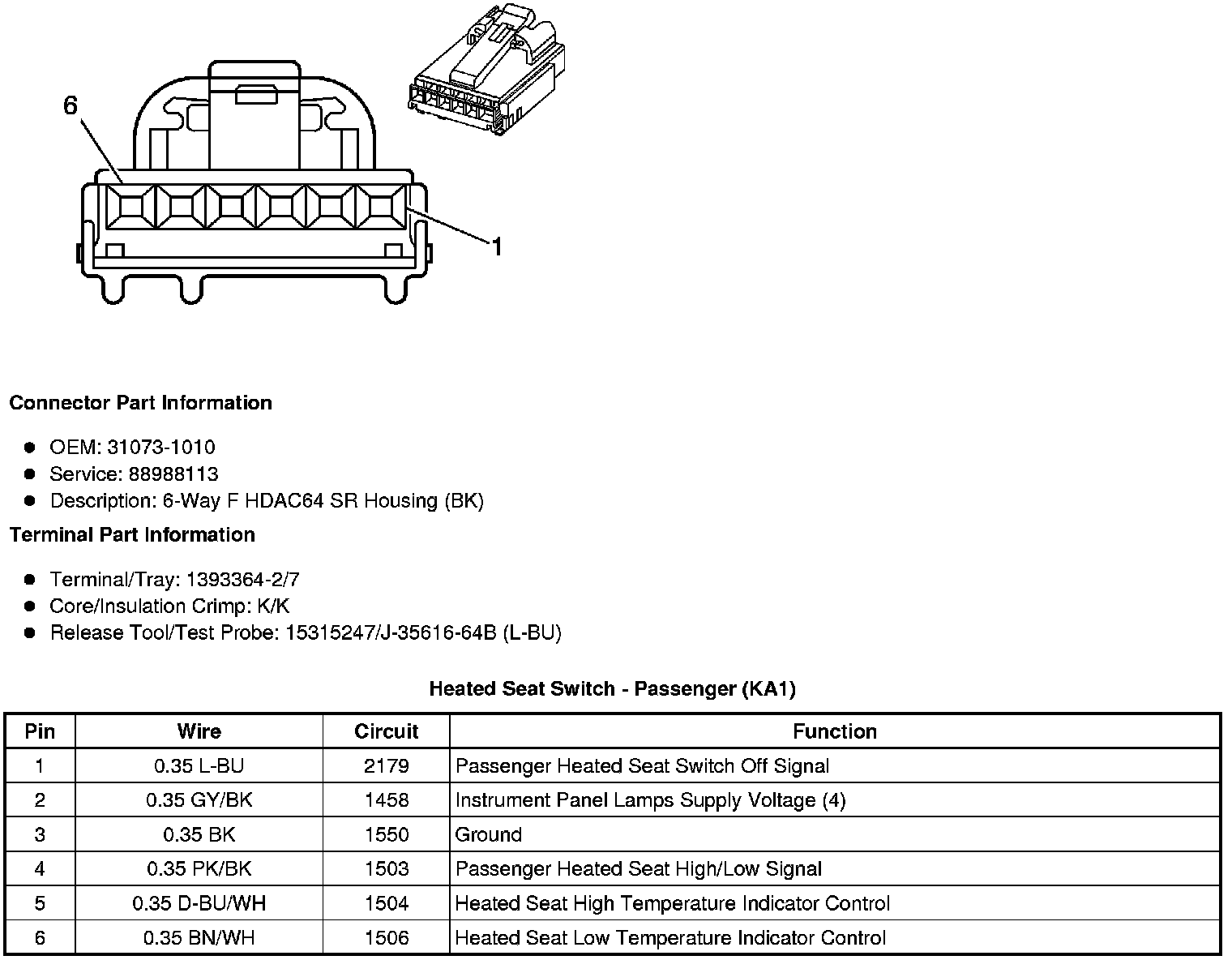

Heated Seat Switch - Passenger (KA1)
