Power Seat Switch: Diagrams




Component Connector End Views

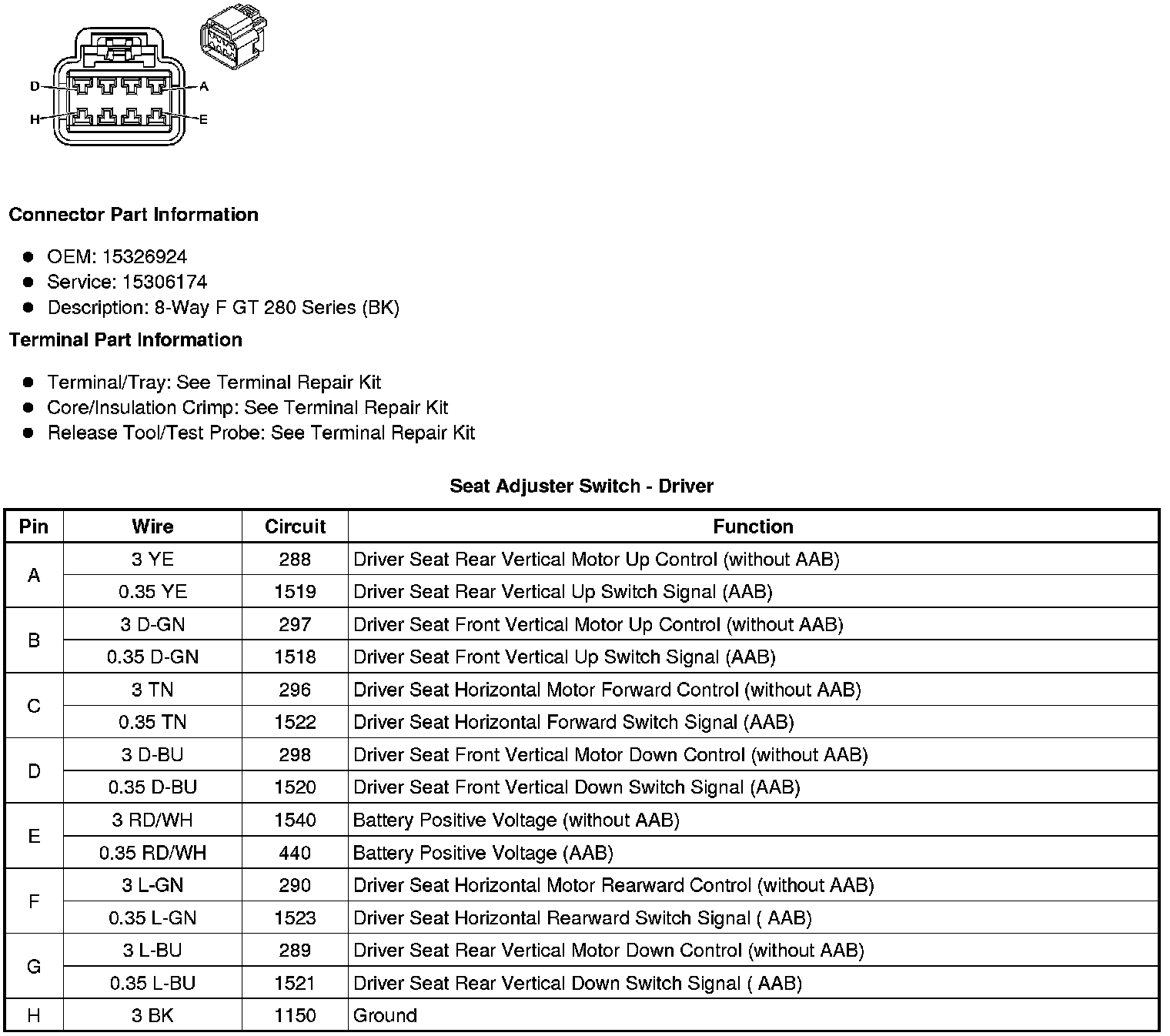

Seat Adjuster Switch - Driver

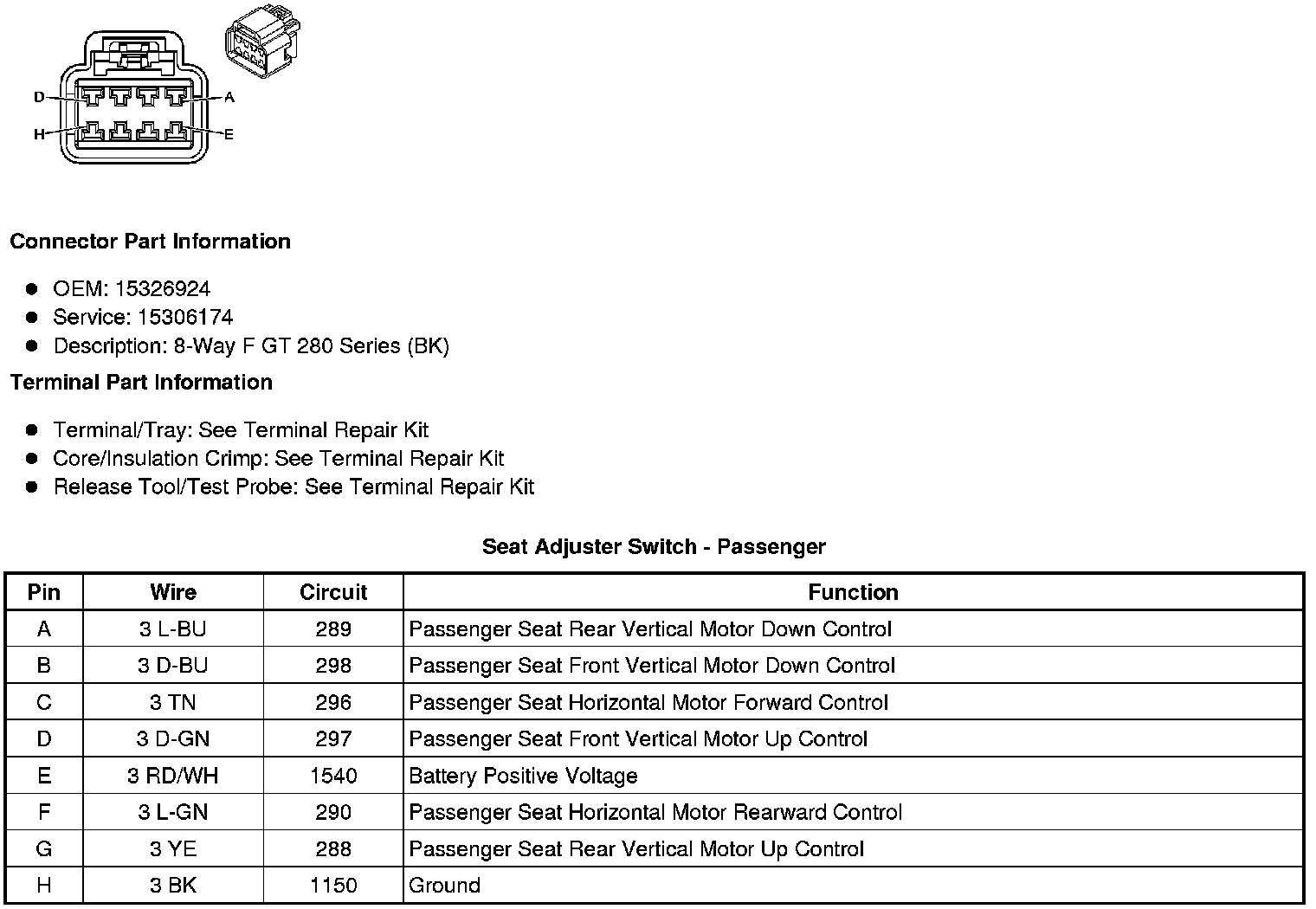

Seat Adjuster Switch - Passenger

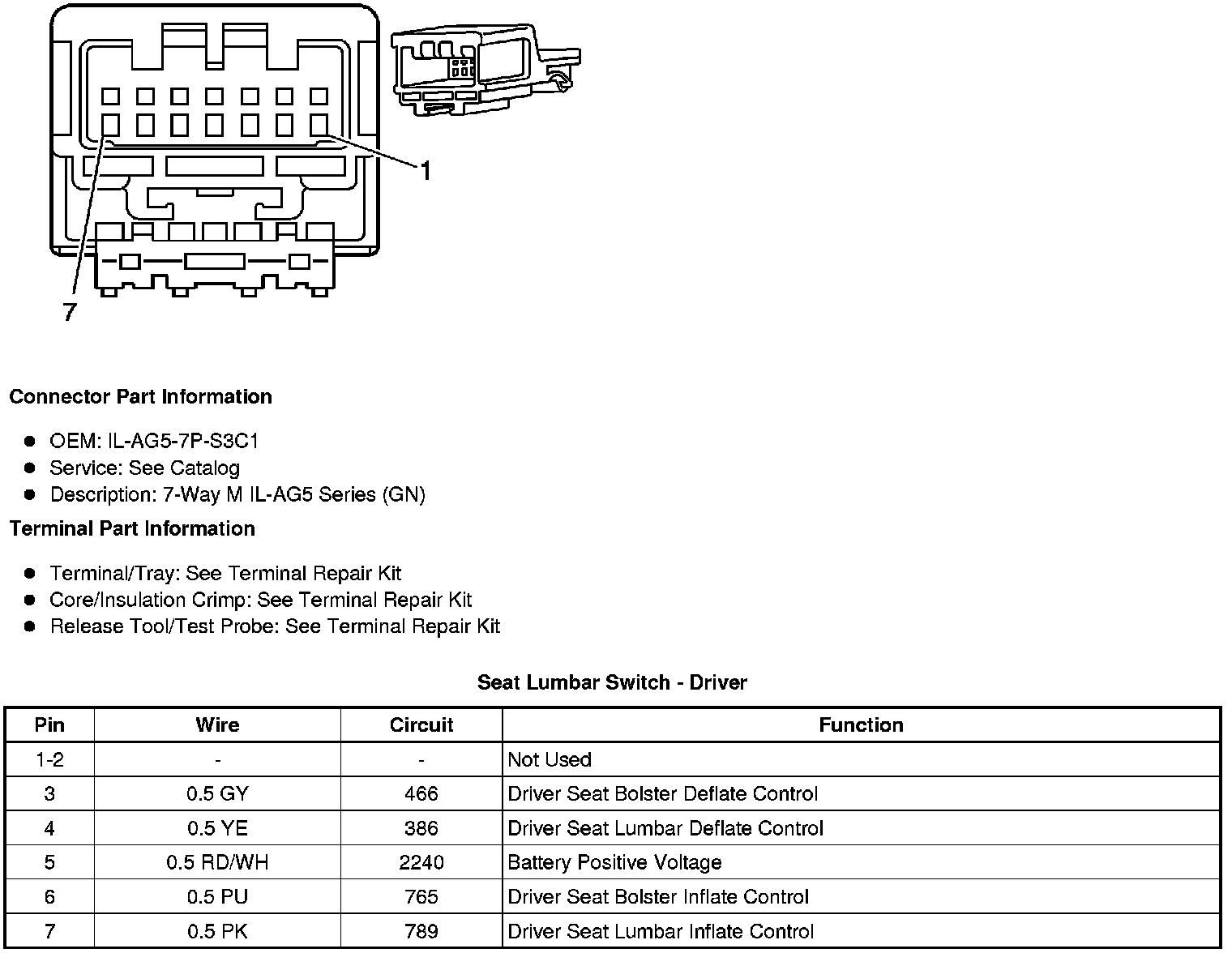

Seat Lumbar Switch - Driver

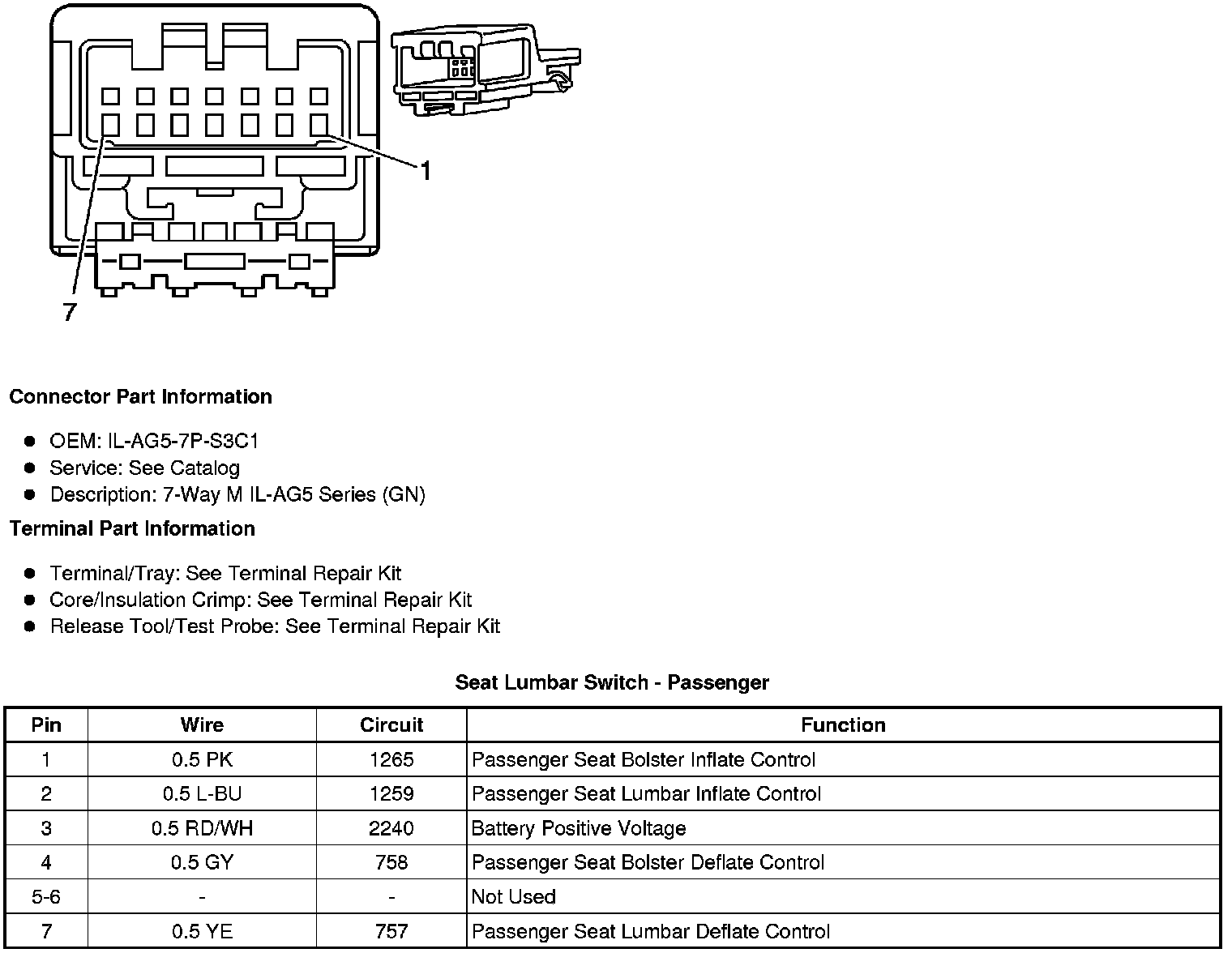

Seat Lumbar Switch - Passenger
