Passenger Compartment/Roof Component Views

Passenger Compartment/Roof Component Views

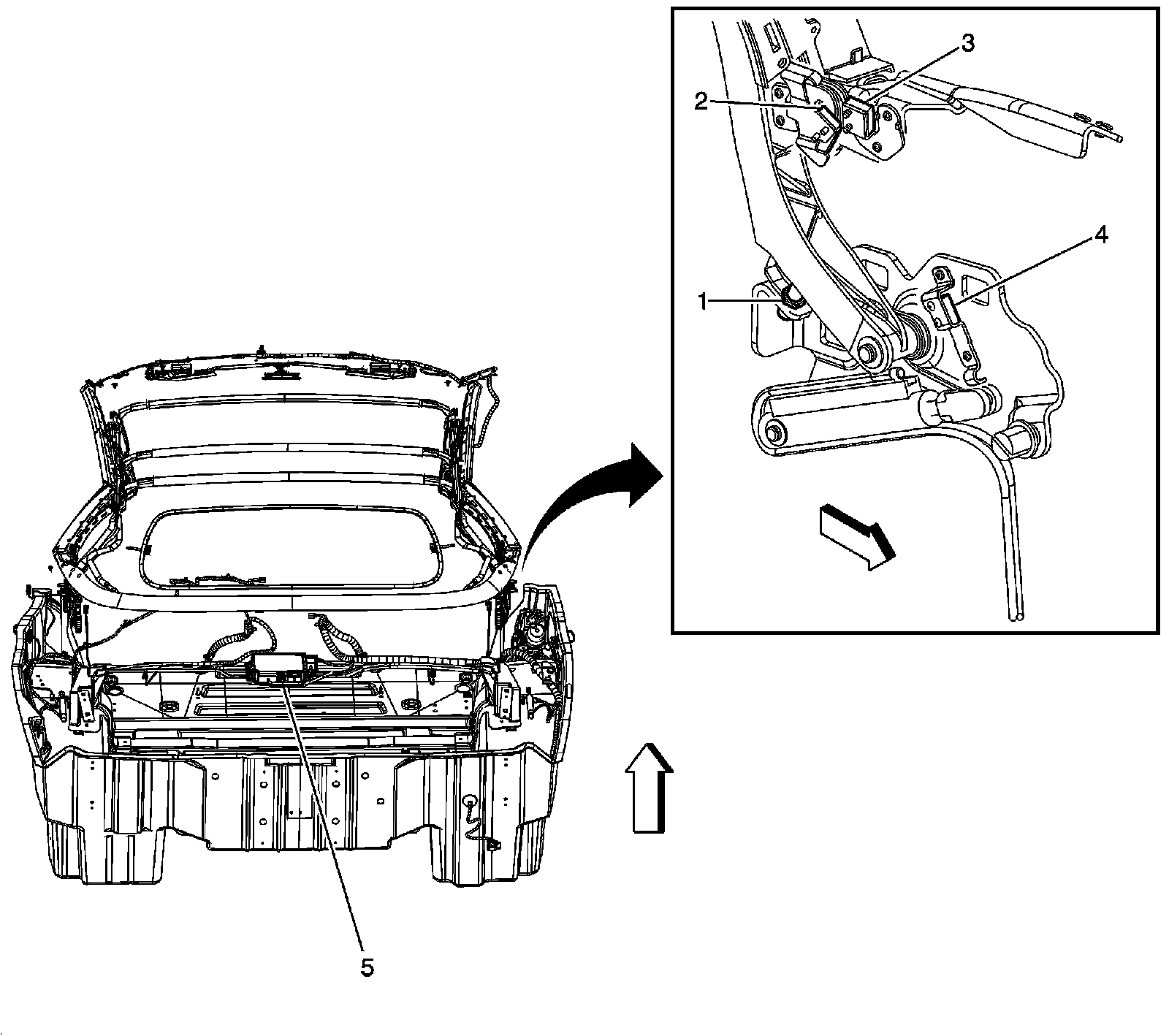

Folding Top Control Module and Position Switch Components (CM7)




1 - Folding Top Closed Position Switch
2 - Folding Top 5 Bow Lowered Switch
3 - Folding Top 5 Bow Raised Switch
4 - Folding Top Open Position Switch
5 - Folding Top Control Module




Passenger Compartment/Roof Component Views

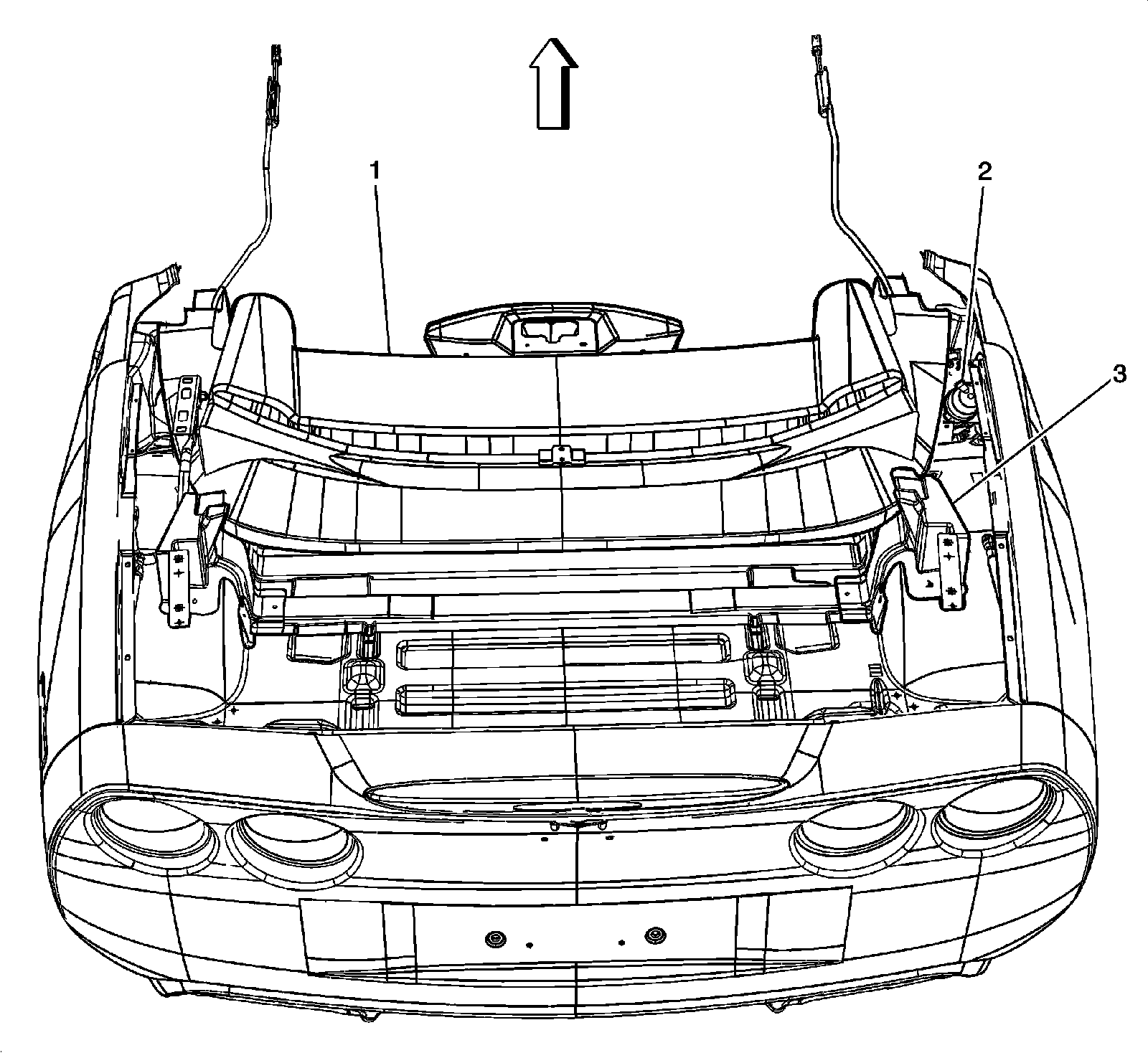

Folding Top Components (CM7)




1 - Folding Top Cover
2 - Folding Top Pump/Motor Assembly
3 - Folding Top Luggage Barrier Switch
