Convertible Top Switch: Diagrams
Component Connector End Views
Folding Top 5-Bow Lowered Switch (CM7)
Folding Top 5-Bow Raised Switch (CM7)
Folding Top Closed Position Switch (CM7)

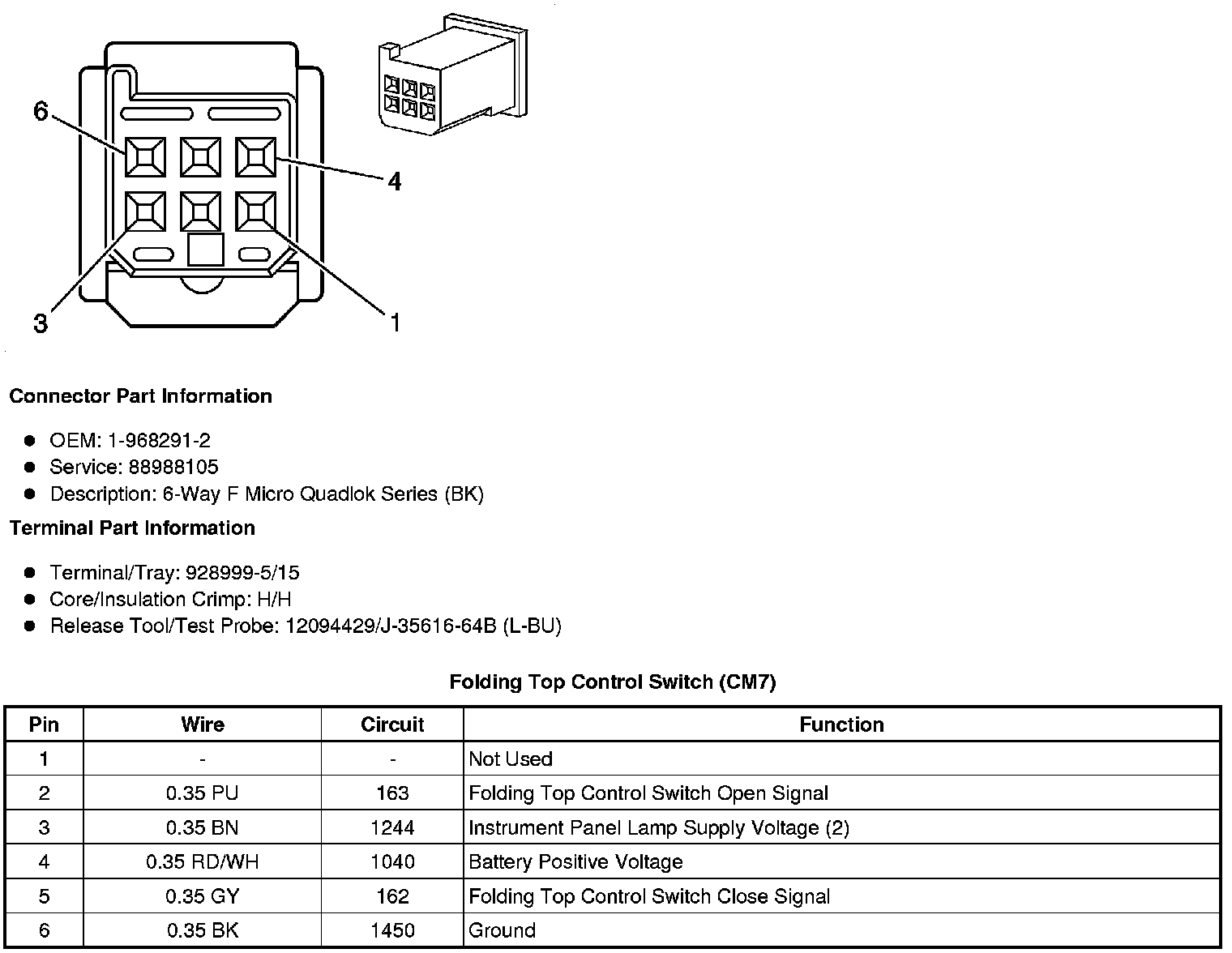

Folding Top Control Switch (CM7)
Folding Top Front Latch Switch (CO5/CM7)
Folding Top Open Position Switch (CM7)
Folding Top Release Switch (C05)
Folding Top Stowage Compartment Lid Release Switch (CM7)
