Fuel Pump Relay: Locations

Electrical Center Identification Views

Fuse Block - Underhood Label

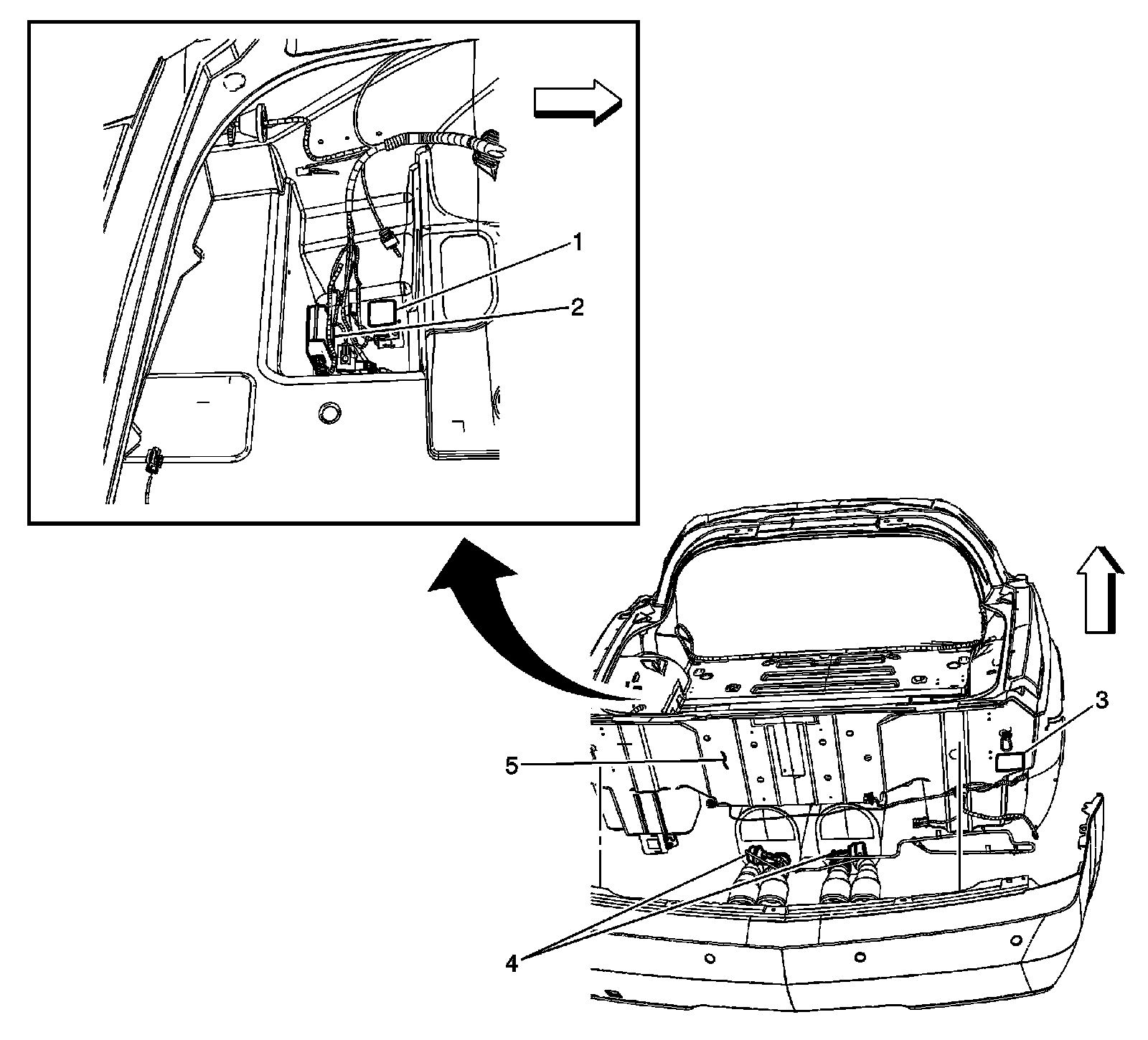

Luggage Compartment/Rear of Vehicle Component Views

Rear of Vehicle Exhaust Components (LS3 with NPP, LS7 or LS9)




1 - Fuel Pump Flow Control Module Relay
2 - Exhaust Tail Pipe Flow Valve Control Module
3 - Exhaust Tail Pipe Flow Control Valve Solenoid
4 - Exhaust Control Valves
5 - Rear Compartment Panel
