Brake Pad Wear Sensor: Locations

Wheels/Vehicle Underbody Component Views

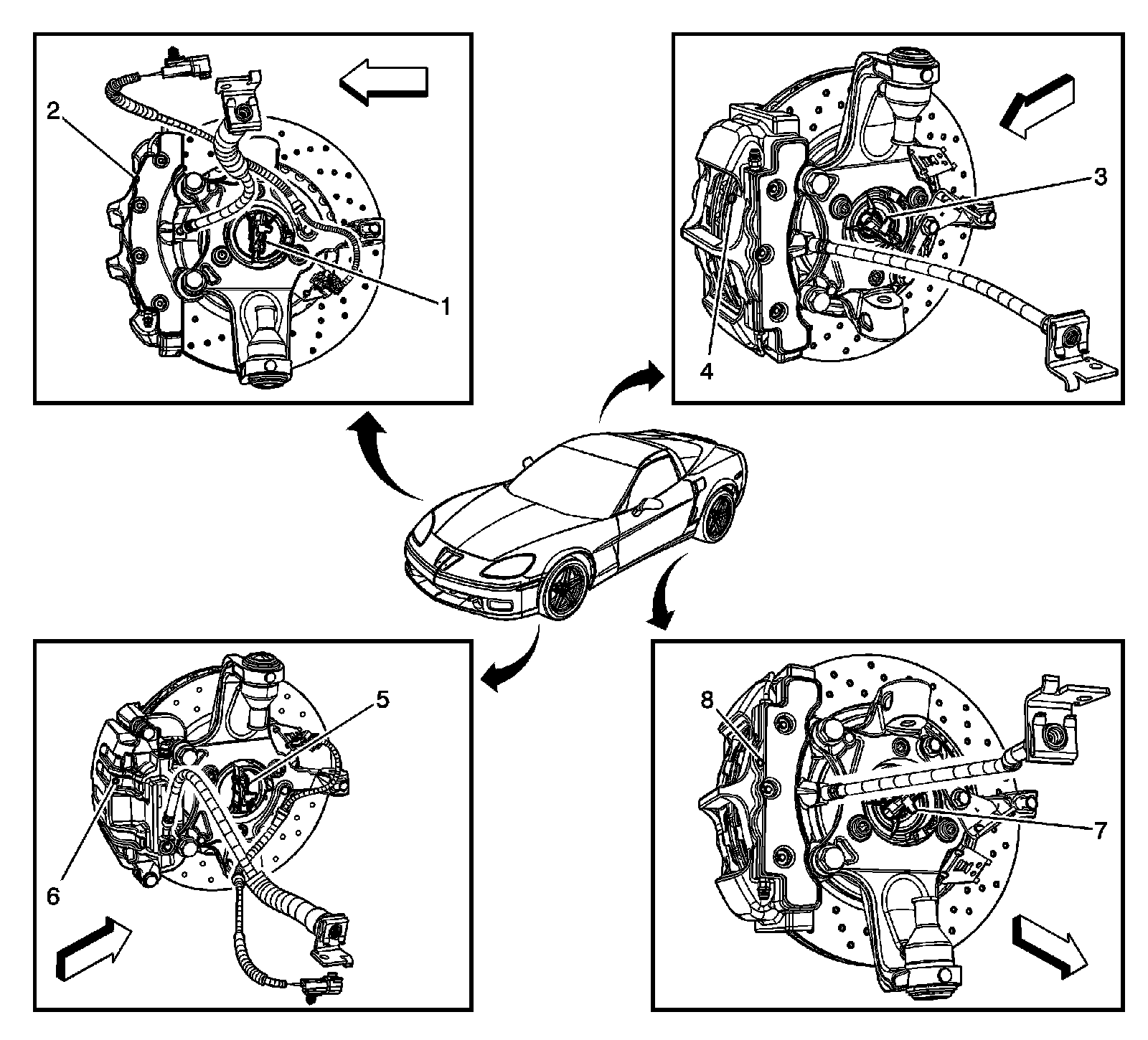

Wheel Components




1 - Wheel Speed Sensor (WSS) - Right Front
2 - Brake Pad Wear Sensor - Right Front (J57)
3 - Wheel Speed Sensor (WSS) - Right Rear
4 - Brake Pad Wear Sensor - Right Rear (J57)
5 - Wheel Speed Sensor (WSS) - Left Front
6 - Brake Pad Wear Sensor - Left Front (J57)
7 - Wheel Speed Sensor (WSS) - Left Rear
8 - Brake Pad Wear Sensor - Left Rear (J57)
