Active Exhaust System Actuator: Diagrams

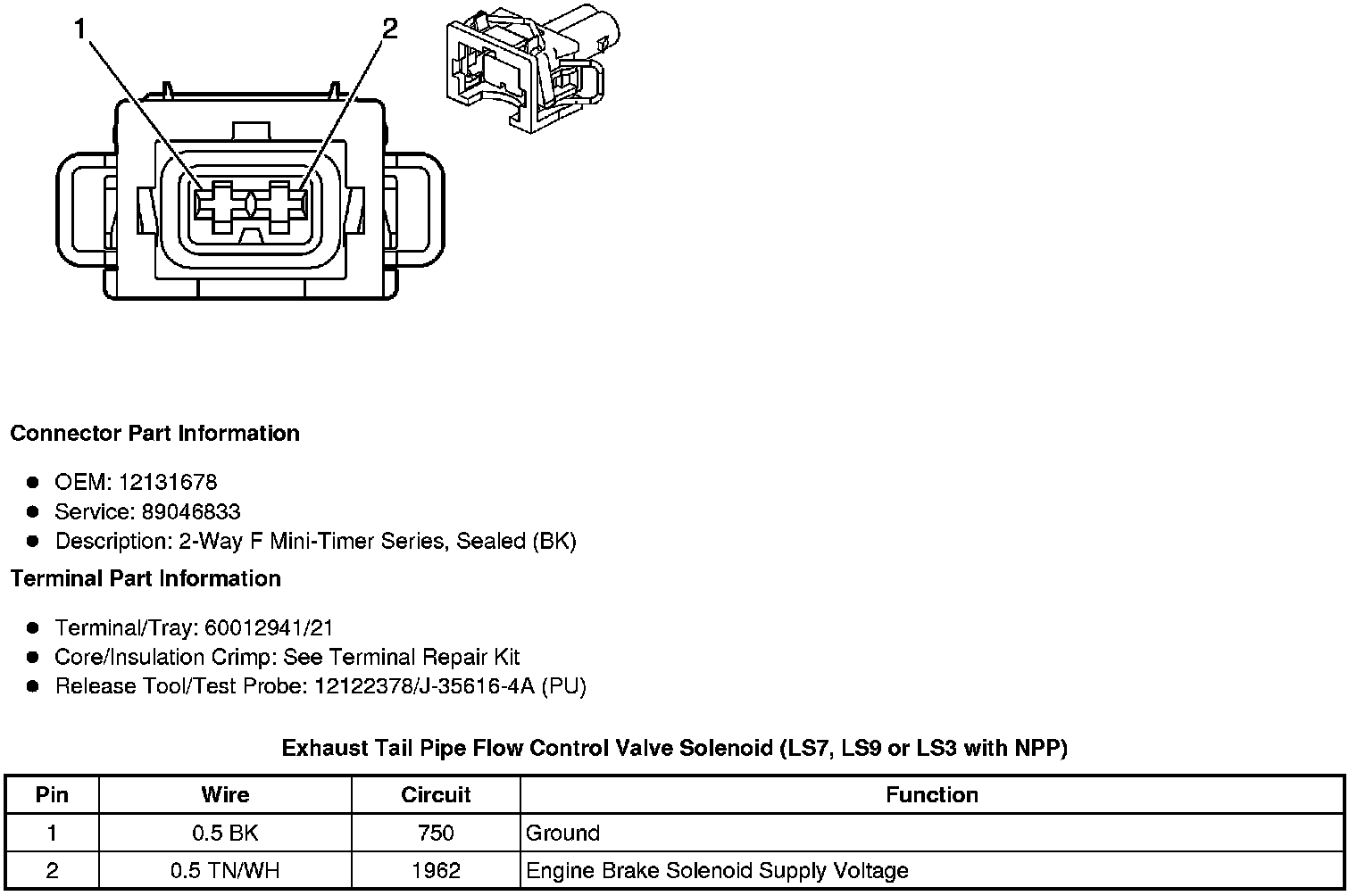

Component Connector End Views
Exhaust Tail Pipe Flow Control Valve Solenoid (LS7, LS9 or LS3 with NPP)
