Parking Brake Release Switch: Locations

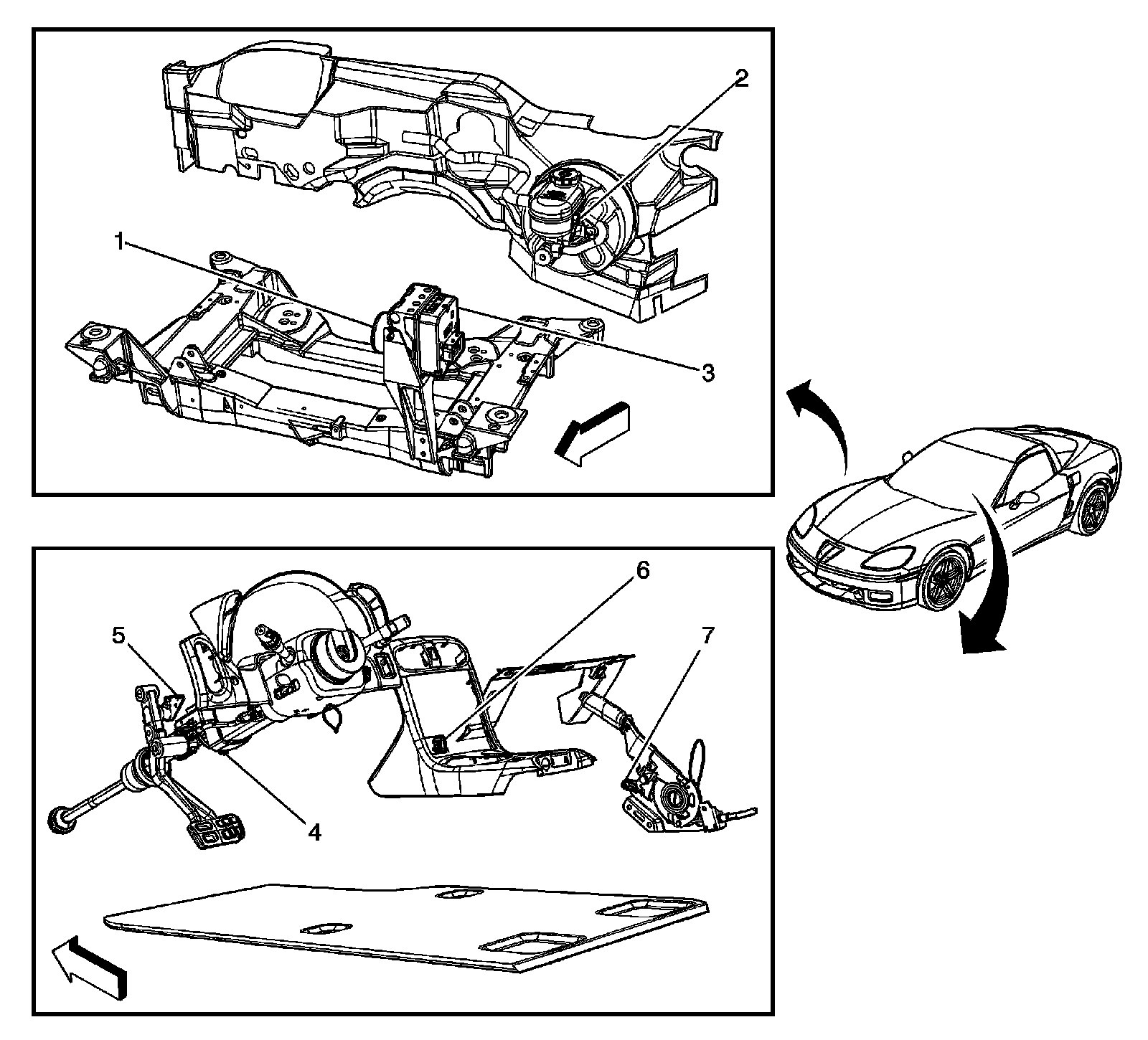

Front of Vehicle/Engine Compartment Component Views
Brake System Components




1 - Brake Pressure Modulator Valve (BPMV)
2 - Brake Fluid Level Switch
3 - Electronic Brake Control Module (EBCM)
4 - Steering Angle Sensor
5 - Brake Pedal Position (BPP) Sensor
6 - Yaw and Lateral Accelerometer Sensor
7 - Park Brake Switch
