Convertible Top Deck Lid Latch Actuator: Diagrams

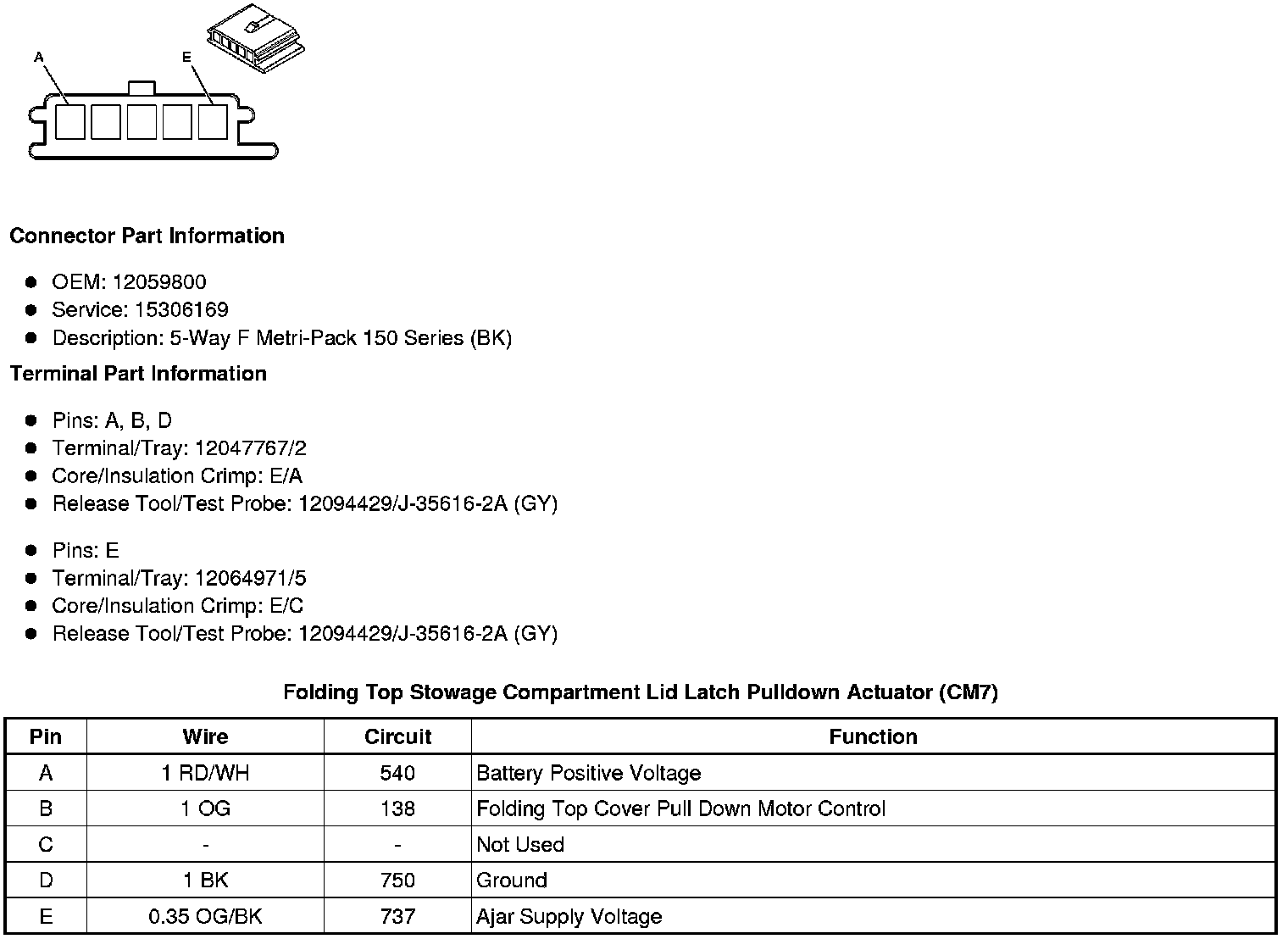

Component Connector End Views
Folding Top Stowage Compartment Lid Latch Pulldown Actuator (CM7)
